STM32-1st-Demo-PCB-Design
About the STM32-1st-Demo-PCB-Design
STM32-1st-Demo-PCB-Design is an open source STM32 PCB design by ashfaque-ur-rahman, published on GitHub. It is a 2-layer board measuring 41 × 31 mm, with 28 components from 16 distinct parts.
Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 4 connectors, 2 ICs, 1 crystal and 1 switch.
From the project
STM32 microcontroller PCB design — KiCad project based on Phil's Lab tutorial series
My first STM32 microcontroller PCB design, built following the Phil's Lab STM32 PCB Design tutorial series. This project was a foundational learning experience in professional PCB design workflow — from schematic capture to layout, design rule checking, and Gerber file generation for manufacturing.
- STM32 microcontroller schematic design and symbol placement - Decoupling capacitor placement for power supply stability - 2-layer PCB stackup and copper pour design - Design Rule Check (DRC) and error resolution - Gerber file generation and validation for PCB manufacturing - KiCad project…
Main components on the STM32-1st-Demo-PCB-Design
STM32-1st-Demo-PCB-Design bill of materials (BOM)
28 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F103C8T6 | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 1 | 16MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | USB_B_Micro | USB_Micro-B_Wuerth_629105150521 | J1 |
| 3 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J2, J3, J4 |
| 1 | SW_SPDT | SW_SPDT_PCM12 | SW1 |
| 1 | RED | LED_0603_1608Metric | D1 |
| 1 | 120R | L_0603_1608Metric | FB1 |
| 2 | 22uF | C_0805_2012Metric | C1, C2 |
| 1 | 10uF | C_0603_1608Metric | C3 |
| 5 | 100nF | C_0402_1005Metric | C4, C5, C6, C7, C11 |
| 1 | 10nF | C_0402_1005Metric | C8 |
| 2 | 1uF | C_0402_1005Metric | C9, C10 |
| 2 | 10pF | C_0402_1005Metric | C12, C13 |
| 4 | 1k5 | R_0402_1005Metric | R1, R3, R4, R5 |
| 1 | 10K | R_0402_1005Metric | R2 |
STM32-1st-Demo-PCB-Design design files
The KiCad project lives in the ashfaque-ur-rahman/STM32-1st-Demo-PCB-Design repository on GitHub; these links point at the commit this page was built from.

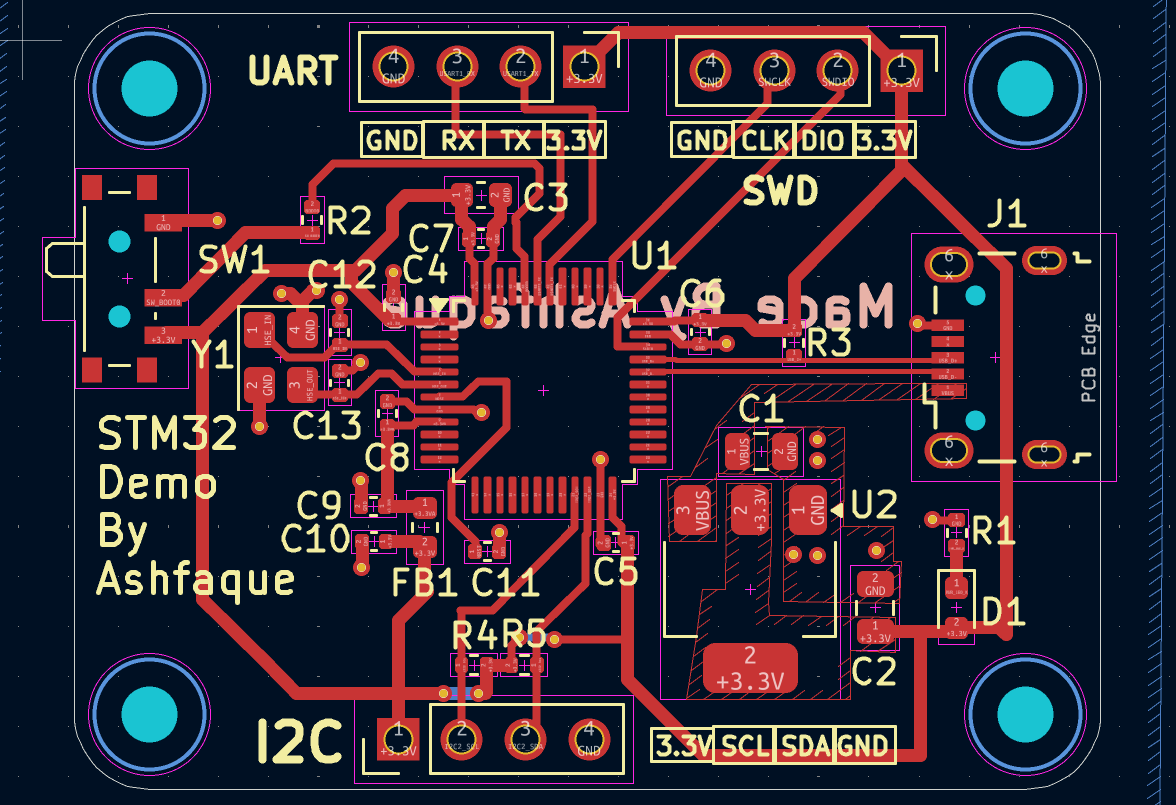

- LayoutSTM32_1st_Project.kicad_pcb
- SchematicSTM32_1st_Project.kicad_sch
STM32-1st-Demo-PCB-Design: common questions
What microcontroller does the STM32-1st-Demo-PCB-Design use?
The STM32-1st-Demo-PCB-Design is built around the STM32F103C8T6, from the STM32 family.
How big is the STM32-1st-Demo-PCB-Design?
The STM32-1st-Demo-PCB-Design measures 41 × 31 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the STM32-1st-Demo-PCB-Design?
28 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the STM32-1st-Demo-PCB-Design design files?
From the ashfaque-ur-rahman/STM32-1st-Demo-PCB-Design repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the STM32-1st-Demo-PCB-Design design in my own project?
The repository has no license, so all rights stay with ashfaque-ur-rahman. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the STM32-1st-Demo-PCB-Design without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
