The grid PCB layout, top view — open source board by asterane

About the The grid PCB

The grid is an open source PCB design by asterane, published on GitHub. It is a 2-layer board measuring 76.2 × 45.7 mm, with 54 components from 7 distinct parts.

By type, the board carries 24 transistors, 24 resistors and 6 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

Engineering and construction of a 240-square-foot LED display wall. All structures, electronics, and software designed and built from scratch.

1. Under Construction 2. Overview 3. Project Goals 1. Overall 2. Design 3. Implementation 4. System 1. Origins 2. Considerations 3. Examination 1. Board 2. Cube 3. Column 4. Grid 5. Control 5. Structure 6. Electronics 7. Software 8. Reflection

This readme file will become much more extensive in the future.

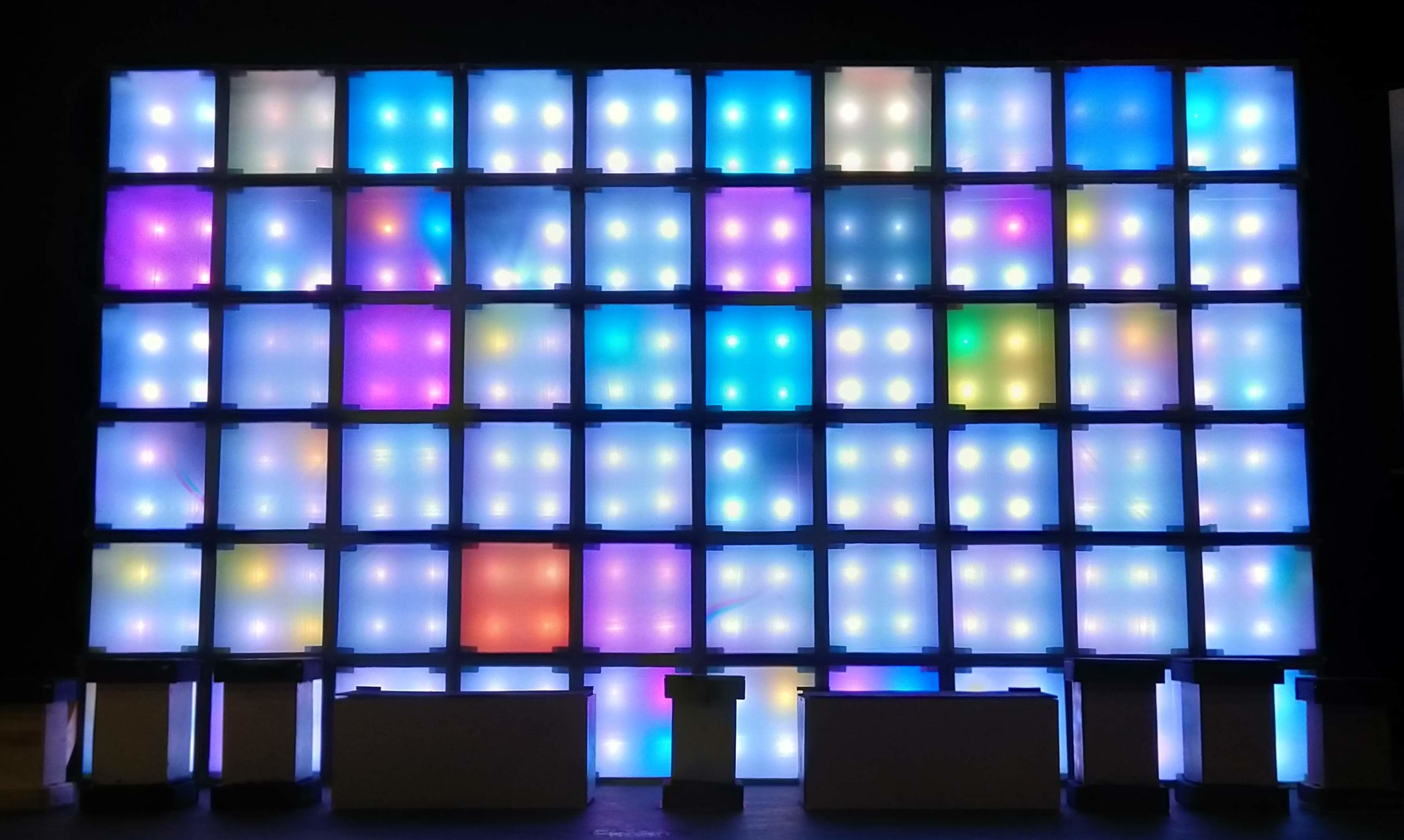

By far my most challenging and ambitious engineering project up to its time, the Grid was a massive lighted display board which served as a set piece for the play in my senior year of high school. The image above shows the first time the entire Grid lit up at once. This display wall was…

The grid, from the project README
From the project README

The grid bill of materials (BOM)

54 components, 7 distinct parts.

QtyPartRefs
12
2N3904
Q1, Q2, Q5, Q6, Q9, Q10, Q13, Q14 +4
12
IRFZ24
Q3, Q4, Q7, Q8, Q11, Q12, Q15, Q16 +4
1
Screw_Terminal_01x02
J1
1
SIP_Socket_01x04
J2
4
Conn_01x06_Female
J3, J4, J5, J6
12
100K
R1, R2, R5, R6, R9, R10, R13, R14 +4
12
1.5
R3, R4, R7, R8, R11, R12, R15, R16 +4

The grid design files

The KiCad project lives in the asterane/the-grid repository on GitHub; these links point at the commit this page was built from.

The grid: common questions

How big is the The grid PCB?

The The grid measures 76.2 × 45.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the The grid?

54 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the The grid design files?

From the asterane/the-grid repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the The grid design in my own project?

The repository has no license, so all rights stay with asterane. Use it as a reference, and ask the author before reusing the design.
