Pcb adr1399-vref
About the Pcb adr1399-vref
Pcb adr1399-vref is an open source PCB design by Atmelfan, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 60 × 39 mm, with 14 components from 13 distinct parts.
Other key parts include the ADR1399 and LT1012ACS8#PBF. By type, the board carries 5 resistors, 4 capacitors, 3 connectors and 2 ICs.
From the project

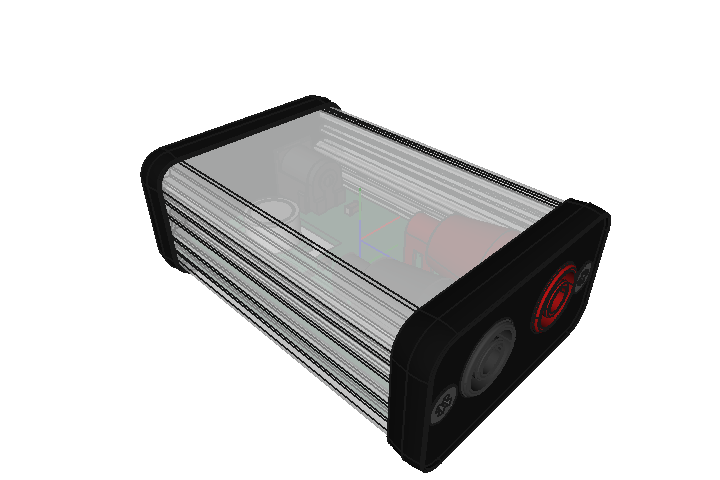

A simple ADR1399/LM399 voltage reference
NOTICE - The main branch is probably not production ready. Check out Releases for finished revisions.
A simple 10 V voltage reference based on ADR1399 from Analog Devices.
Check out Releases for revision schematics and materials.
Main components on the Pcb adr1399-vref
Pcb adr1399-vref bill of materials (BOM)
14 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADR1399 | Analog_TO-46-4_ThermalShield | U1 |
| 1 | LT1012ACS8#PBF LT1012 | SO-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | 54-00130 Barrel_Jack_Switch | 54-00130 | J1 |
| 1 | CT3151SP-2 | CT3151SP | J2 |
| 1 | CT3151SP-0 | CT3151SP | J3 |
| 1 | 10u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1 |
| 2 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C4 |
| 1 | 1u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 1 | 200K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 5R1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 1 | 5K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 1 | 19K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
| 1 | 8K8 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
Pcb adr1399-vref design files
The KiCad project lives in the Atmelfan/pcb-adr1399-vref repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb-adr1399-vref.kicad_pcb
- Schematicpcb-adr1399-vref.kicad_sch
Pcb adr1399-vref: common questions
How big is the Pcb adr1399-vref?
The Pcb adr1399-vref measures 60 × 39 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pcb adr1399-vref?
14 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pcb adr1399-vref design files?
From the Atmelfan/pcb-adr1399-vref repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pcb adr1399-vref design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Atmelfan chose for the repository.
