Mech mouse jiggler
About the Mech mouse jiggler PCB
Mech mouse jiggler is an open source PCB design by barrettotte, published on GitHub under the MIT license. It is a 2-layer board measuring 71.1 × 54.6 mm, with 16 components from 12 distinct parts.
Other key parts include the NE555P. By type, the board carries 4 diodes, 4 resistors, 2 connectors, 2 capacitors, 1 IC and 1 transistor.
From the project

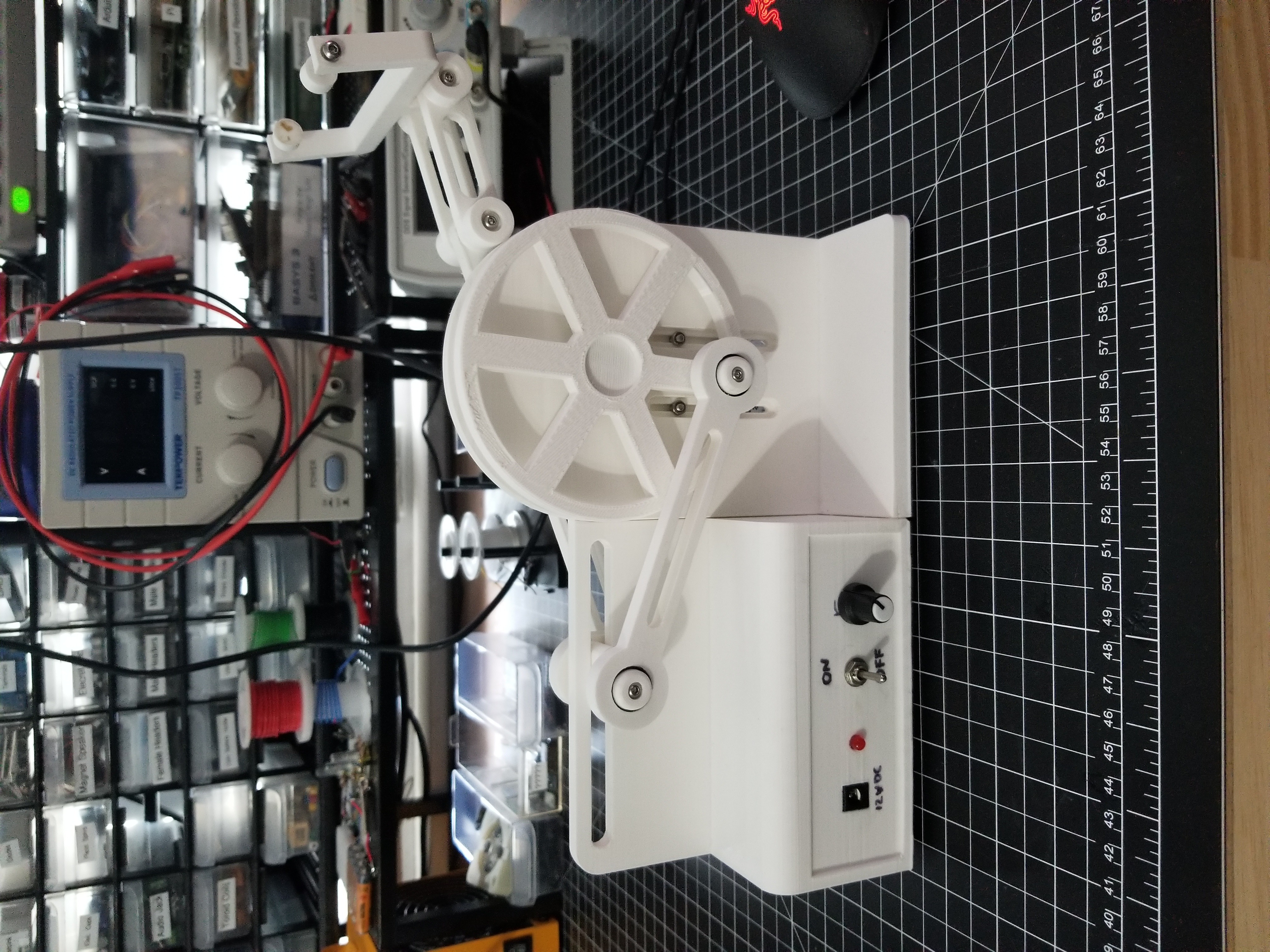

A very impractical and stupid mouse jiggler using a crank mechanism, 12V DC motor, and a PWM circuit.
A very impractical and stupid mouse jiggler using a crank mechanism, 12V DC motor, and a PWM circuit.
I wanted a basic project with some gears, a mechanical movement, and a DC motor. So this was the simplest thing I could think of; Move a mouse back and forth.
The mechanical movement and gears gave me more experience with components/joints in Fusion 360. I also took the opportunity to learn KiCad and design a PCB for my basic PWM circuit.
Main components on the Mech mouse jiggler
Mech mouse jiggler bill of materials (BOM)
16 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555P | DIP-8_W7.62mm_Socket | U1 |
| 1 | IRFZ44NPBF | TO254P483X1016X1994-3P | Q1 |
| 2 | Screw_Terminal_01x02 | TerminalBlock_bornier-2_P5.08mm | J1, J2 |
| 1 | 100K | Potentiometer_Alps_RK163_Single_Horizontal | RV1 |
| 1 | SW_DPDT_x2 | 100SP1T1B4M2QE | SW1 |
| 2 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2 |
| 1 | RED | LED_D5.0mm | D3 |
| 1 | 1N47xxA | D_DO-41_SOD81_P10.16mm_Horizontal | D4 |
| 1 | 10n | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 1 | 0.1u | C_Disc_D3.8mm_W2.6mm_P2.50mm | C2 |
| 3 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R3, R4 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
