Periph
About the Periph PCB
Periph is an open source PCB design by bastien313, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 80 × 66 mm, with 43 components from 9 distinct parts.
Other key parts include the TMR-2412, ADuM1200WT and SFH617A-1X007T. By type, the board carries 16 resistors, 11 ICs, 8 diodes, 5 capacitors and 3 connectors.
From the project
Open test bench is an open-source platform for drive or characterize any type of system. The system is made for simplifying the development of additional modules called "peripheral module". User connect his computer to backplane unit which gives an access to the peripheral.
Open test bench is an open-source platform for drive or characterize any type of system. The system is made for simplifying the development of additional modules called "peripheral module". User connect his computer to backplane unit which gives an access to the peripheral.

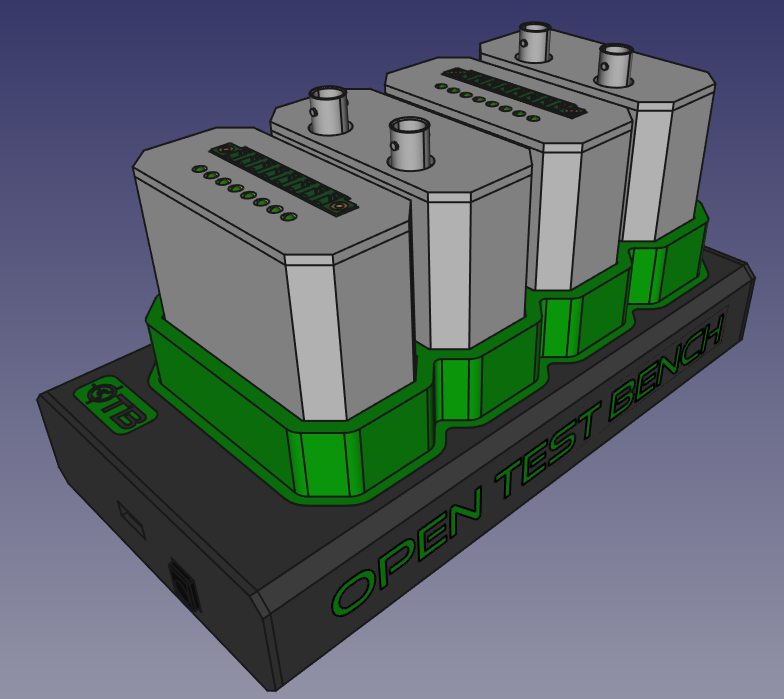

Backplane unit is the main block of the system. It can receive 4 peripherals modules and link user computer to peripheral module. More peripherals modules can be added with the extension module but with slower communication speed.
Main components on the Periph
Periph bill of materials (BOM)
43 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TMR-2412 | Converter_DCDC_TRACO_TMR-xxxx_THT | U1 |
| 2 | ADuM1200WT | SOIC-8_3.9x4.9mm_P1.27mm | U2, U3 |
| 8 | SFH617A-1X007T | SMDIP-4_W9.53mm_Clearance8mm | U4, U5, U6, U7, U8, U9, U10, U11 |
| 2 | Conn_02x10_Counter_Clockwise | PinHeader_2x10_P2.54mm_Horizontal | J1, J2 |
| 1 | Conn_01x08 | PhoenixContact_MC_1,5_8-GF-5.08_1x08_P5.08mm_Horizontal_ThreadedFlange | J3 |
| 8 | LED | LED_D3.0mm_Horizontal_O6.35mm_Z6.0mm | D1, D2, D3, D4, D5, D6, D7, D8 |
| 2 | CP1 | CP_Elec_5x5.7 | C1, C4 |
| 3 | C | C_0805_2012Metric | C2, C3, C5 |
| 16 | R | R_0805_2012Metric | R1, R2, R3, R4, R5, R6, R7, R8 +8 |
Periph design files
The KiCad project lives in the bastien313/Open-test-bench repository on GitHub; these links point at the commit this page was built from.
Periph: common questions
How big is the Periph PCB?
The Periph measures 80 × 66 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Periph?
43 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Periph design files?
From the bastien313/Open-test-bench repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Periph design in my own project?
Yes, under the terms of its GPL-3.0 license, which bastien313 chose for the repository.
