CursorBoard PCB layout, top view — open source board by beatenavenue

About the CursorBoard PCB

CursorBoard is an open source PCB design by beatenavenue, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 130 mm, with 15 components from 5 distinct parts.

By type, the board carries 10 diodes, 3 resistors, 1 switch and 1 capacitor.

It belongs with the keyboards designs in this gallery.

From the project

keyboard prototype

IMPORTANT Top plate is MUST 1.2mm thickness.

Symbol and footprint geometry is embedded in the .kicadsch / .kicadpcb files, so both projects can be opened, inspected and plotted to Gerber without installing anything below. The libraries are only needed to edit the parts themselves, or to re-import them into the schematic.

These are not current KiCad projects — type1 was last saved with KiCad 8.0 and type2 with KiCad 9.0. The library versions listed below are likewise the ones that were current when each board was designed. Fetching today's version from an upstream source may well give you a…

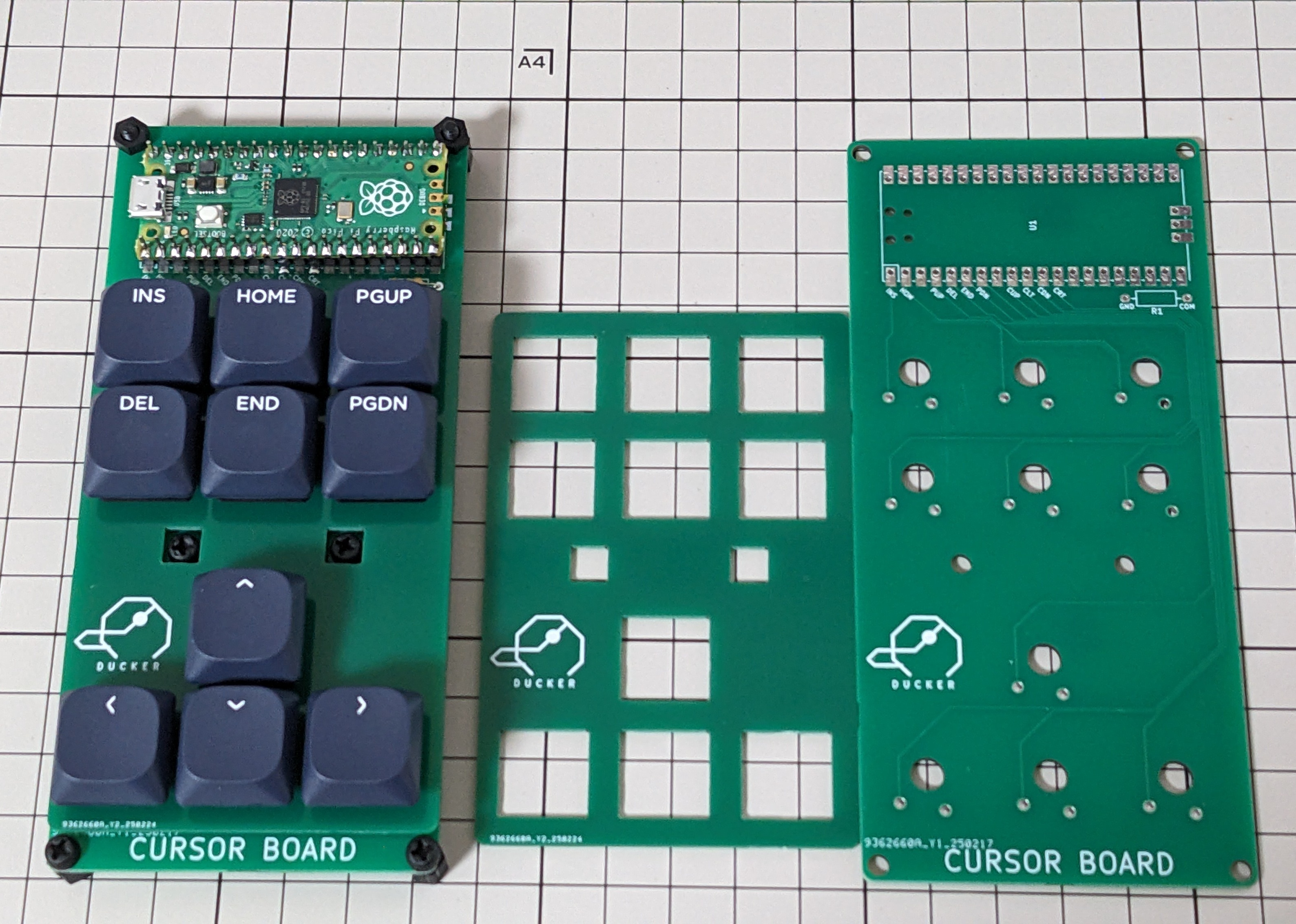

CursorBoard, from the project README
From the project README

CursorBoard bill of materials (BOM)

15 components, 5 distinct parts.

QtyPartRefs
1
TS-1187A-B-A-B
XKB Connection(中国星坤)
SW1
10
D
D1, D2, D3, D4, D5, D6, D7, D8 +2
1
0.1u
C1
2
4k7
R1, R2
1
10k
R3

CursorBoard design files

The KiCad project lives in the beatenavenue/hw_cursorboard repository on GitHub; these links point at the commit this page was built from.

CursorBoard: common questions

How big is the CursorBoard PCB?

The CursorBoard measures 60 × 130 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CursorBoard?

15 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the CursorBoard design files?

From the beatenavenue/hw_cursorboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the CursorBoard design in my own project?

Yes, under the terms of its MIT license, which beatenavenue chose for the repository.
