About the KLOR PCB
KLOR is an open source PCB design by GEIGEIGEIST, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 160.2 × 118.3 mm, with 79 components from 16 distinct parts.
Other key parts include the ProMicro. By type, the board carries 25 jumpers, 22 switches, 22 diodes, 3 connectors, 2 battery holders and 1 IC.
It belongs with the keyboards, displays & leds and audio designs in this gallery.
From the project

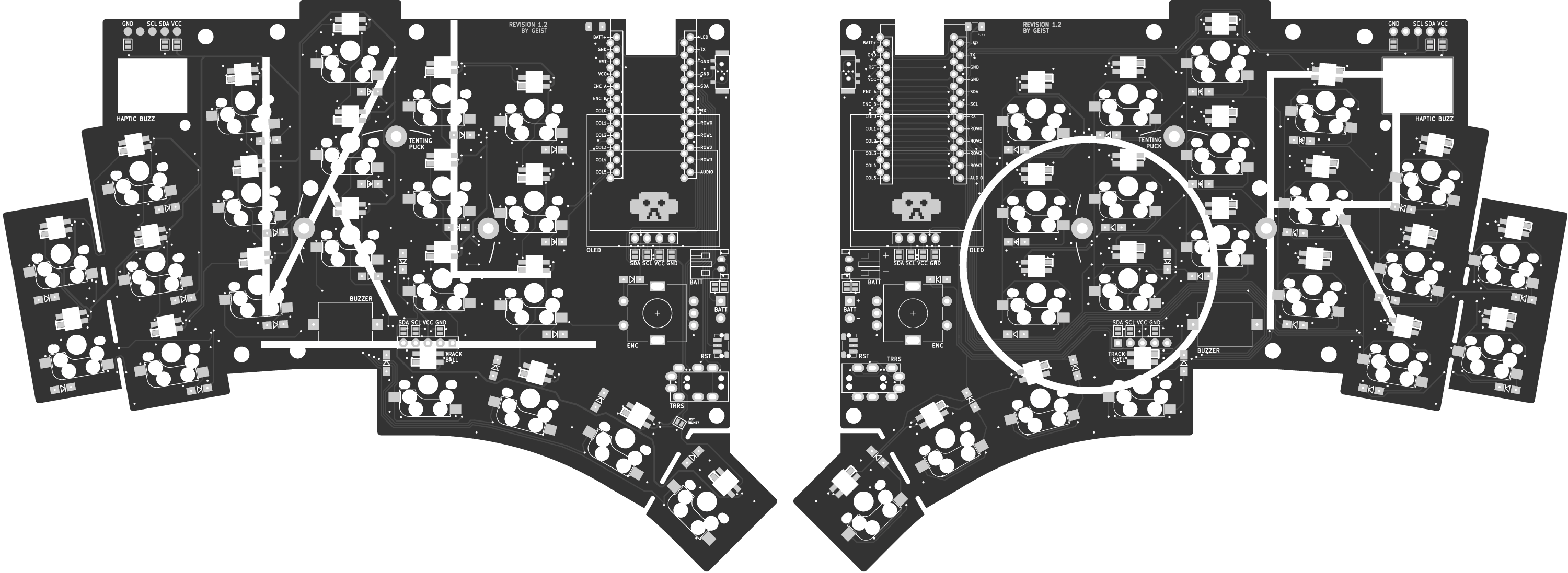

KLOR is 36-42 keys column-staggered split keyboard. It supports a per key RGB matrix, encoders, OLED displays, haptic feedback, audio, a Pixart Paw3204 trackball and four different layouts, through brake off parts.
- download the ZIP file - upload the ZIP file - sometimes the Gerber preview from JLCPCB can't display the PCB, even when the files are fine. In this case use this dimensions: 159.8 mm* 118 mm - PCB Thickness 1.6mm - 2 layers - PCB Qty as much as you like. But be aware, that you need 2 PCBs for one keyboard - PCB Color Black - No impedance control - Surface Finish HASL(with lead) if you want the easiest soldering experience or LeadFree HASL. - Remove Order Number Yes

Main components on the KLOR
KLOR bill of materials (BOM)
79 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | MJ-4PP-9 | MJ-4PP-9 | J1 |
| 1 | Haptic Buzz | Pimoroni Haptic Buzz DRV2605L Driver | J2 |
| 1 | lv27 | lvc27_onlyInput | J3 |
| 1 | JST Connector | JST_PH_reversible | BT1 |
| 1 | Battery_Cell | custombatteryconnector_small | BT2 |
| 1 | Buzzer | Buzzer_Mallory_AST1109MLTRQ_reversible | BZ1 |
| 21 | Device_Jumper_NO_Small | Jumper | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 +13 |
| 2 | VCC Jumper | Jumper | JP12, JP14 |
| 2 | GND Jumper | Jumper | JP13, JP15 |
| 1 | SW_DPDT_x2 | MSK12C02_reversible | PSW1 |
| 1 | SW_Push | SW_Push_1P1T-MP_NO_Horizontal_Alps_SKRTLAE010_both_sides | RSW1 |
| 21 | SW_PUSH-MX_W_LED | SK6812MINI_and_cherry | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +13 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm-keebio_modified | SW18 |
| 1 | SSD1306 | SSD1306_128x64OLED | OLED1 |
| 22 | D_Small | Diode_SOD123 | D1, D2, D3, D4, D5, D6, D7, D8 +14 |
KLOR design files
The KiCad project lives in the GEIGEIGEIST/KLOR repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/klor1_3/klor1_3.kicad_pcb
- SchematicPCB/klor1_3/klor1_3.kicad_sch
KLOR: common questions
How big is the KLOR PCB?
The KLOR measures 160.2 × 118.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KLOR?
79 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the KLOR design files?
From the GEIGEIGEIST/KLOR repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the KLOR design in my own project?
Yes, under the terms of its GPL-3.0 license, which GEIGEIGEIST chose for the repository.
