Grove adaptor panel

BeeHive-org·BeeHive·hardware/PCBs/grove_adaptor_panel/grove_adaptor_panel.kicad_pcb

Grove adaptor panel PCB layout, top view — open source board by BeeHive-org
Simulate this board

About the Grove adaptor panel PCB

Grove adaptor panel is an open source PCB design by BeeHive-org, published on GitHub under the MIT license. It is a 2-layer board measuring 72.1 × 46.8 mm, with 3 components from 3 distinct parts.

From the project

BeeHive: a flexible open hardware platform for behavioural experiments

In this folder users & collaborators will find designs and considerations about the hardware parts being developed in this project.

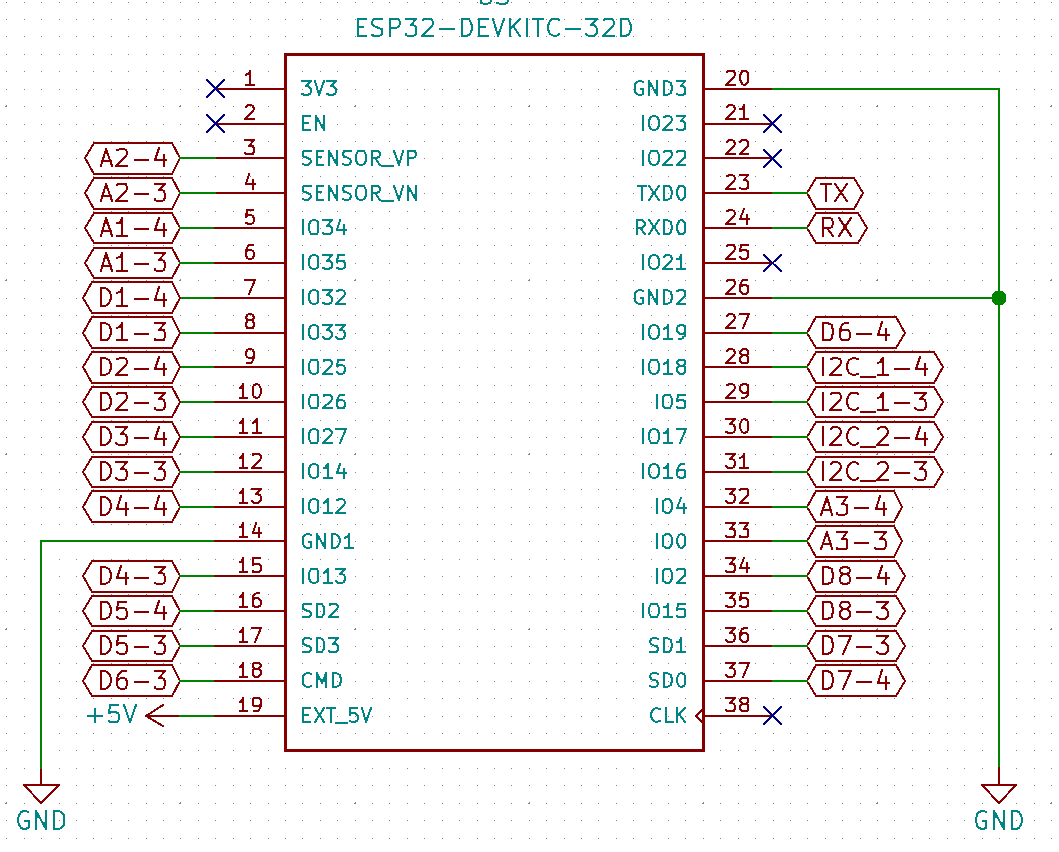

The pin mapping of the ESP32 controller and our board can be seen here:

Using table 2 of this manual we can see all the options for each pin.

Grove adaptor panel, from the project README
From the project README

Grove adaptor panel bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
455-2249
Conn_01x04
J1
1
2221-A118
Conn_01x04
J2
1
VAL**
mouse-bite-5mm-slot

Grove adaptor panel design files

The KiCad project lives in the BeeHive-org/BeeHive repository on GitHub; these links point at the commit this page was built from.

Grove adaptor panel: common questions

How big is the Grove adaptor panel PCB?

The Grove adaptor panel measures 72.1 × 46.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Grove adaptor panel?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Grove adaptor panel design files?

From the BeeHive-org/BeeHive repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Grove adaptor panel design in my own project?

Yes, under the terms of its MIT license, which BeeHive-org chose for the repository.
