About the Marble PCB

Marble is an open source PCB design by BerkeleyLab, published on GitHub. It is a board, with 16 components from 9 distinct parts.

Other key parts include the MIC2090-1YM5TR. By type, the board carries 9 capacitors, 5 resistors, 1 IC and 1 connector.

It belongs with the test & measurement and dev boards & breakouts designs in this gallery.

From the project

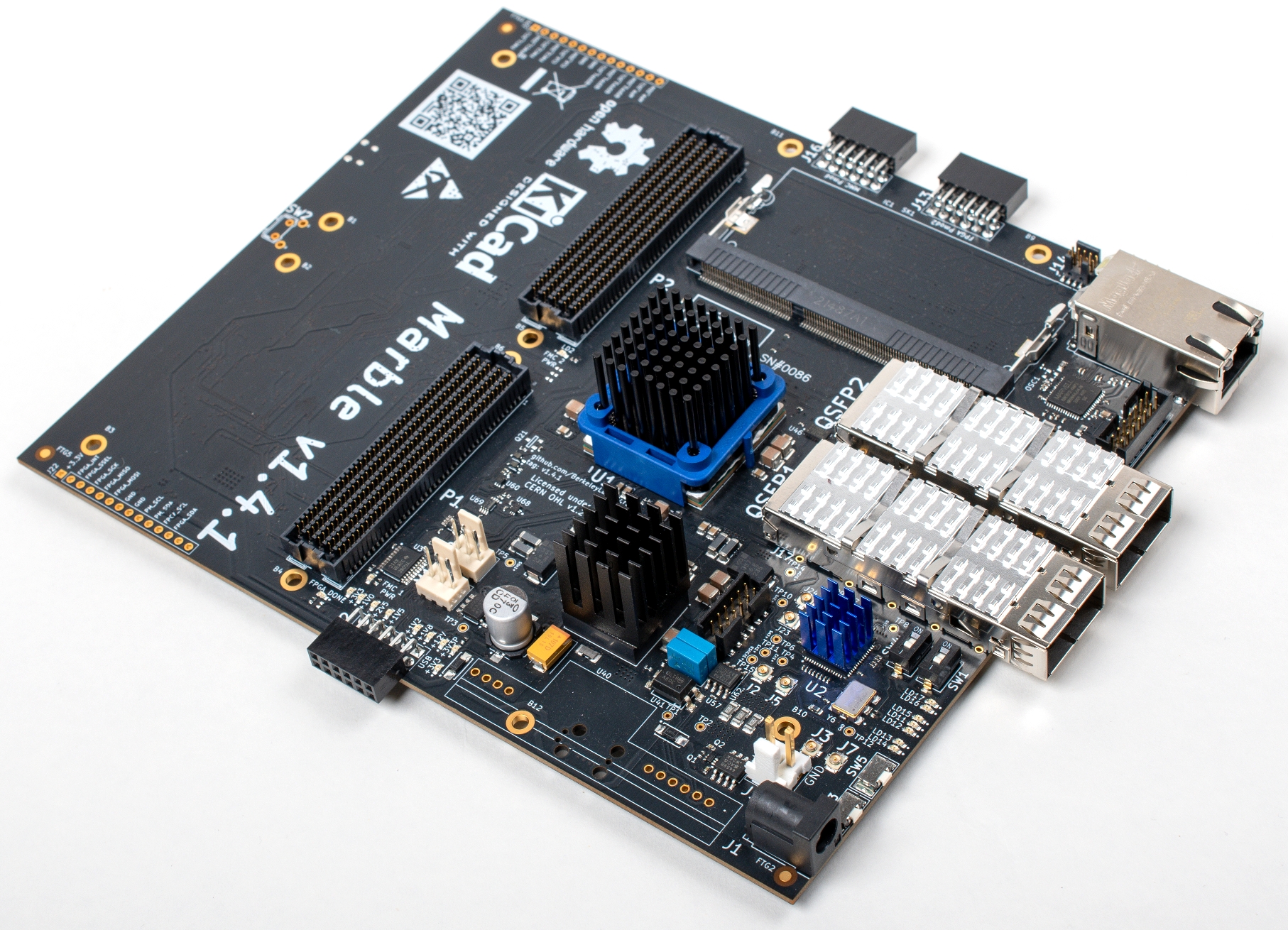

Dual FMC FPGA carrier board developed for general purpose use in particle accelerator electronics instrumentation.

Marble is a dual FMC FPGA carrier board developed for general purpose use in particle accelerator electronics instrumentation. It is currently under development and the base platform for two accelerator projects at DOE: ALS-U (the Advanced Light Source Upgrade at LBNL) and LCLS-II HE (the Linac Coherent Light Source II High Energy upgrade).

The design responds to deployment needs in an accelerator environment: reliability, ability to be remotely programmed, safety watchdog, self monitoring, etc. It is intended to be the base digital design for instrumentation electronics, with the capability…

Main components on the Marble

MIC2090-1YM5TR

Marble bill of materials (BOM)

16 components, 9 distinct parts.

QtyPartRefs
1
MIC2090-1YM5TR
MICREL SEMICONDUCTOR
U55
1
SAMTEC_ASP-134486-01
SAMTEC
P2
1
CC0402_100NF_25V_10%_X5R
GENERIC
C5
1
CC1206_22UF_25V_20%_X5R
GENERIC
C6
5
CC0201_100NF_6.3V_10%_X5R
GENERIC
C7, C8, C9, C10, C11
2
CC0603_10UF_6.3V_20%_X5R
GENERIC
C12, C13
2
R0402_240R_1%_0.0625W_100PPM
GENERIC
R11, R12
2
R0402_10K_1%_0.0625W_100PPM
GENERIC
R205, R258
1
R0402_1K_1%_0.0625W_100PPM
GENERIC
R259

Marble design files

The KiCad project lives in the BerkeleyLab/Marble repository on GitHub; these links point at the commit this page was built from.

Marble: common questions

How many components are on the Marble?

16 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Marble design files?

From the BerkeleyLab/Marble repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Marble design in my own project?

The repository has no license, so all rights stay with BerkeleyLab. Use it as a reference, and ask the author before reusing the design.
