Regulator

BhoumikAcharya·smart-signage-boards·PCB/Open Source Files/AMS1117/Regulator.kicad_pcb

Regulator PCB layout, top view — open source board by BhoumikAcharya

About the Regulator PCB

Regulator is an open source PCB design by BhoumikAcharya, published on GitHub. It is a 2-layer board measuring 37.6 × 22.5 mm, with 9 components from 6 distinct parts.

Other key parts include the AMS1117-3.3. By type, the board carries 4 capacitors, 2 connectors, 1 IC, 1 diode and 1 resistor.

From the project

📦 Repository Contents Regulator.kicadsch – KiCad schematic Regulator.kicadpcb – KiCad PCB layout

📦 Repository Contents Regulator.kicadsch – KiCad schematic Regulator.kicadpcb – KiCad PCB layout

These boards were kindly sponsored by PCBWay

🟢 Quality: The PCBs arrived with sharp silkscreen, smooth edges, and consistent solder mask — even for the fine-pitch pads.

🟢 Service: Communication with the PCBWay team (special thanks to Liam 🙏) was very fast and helpful at every step.

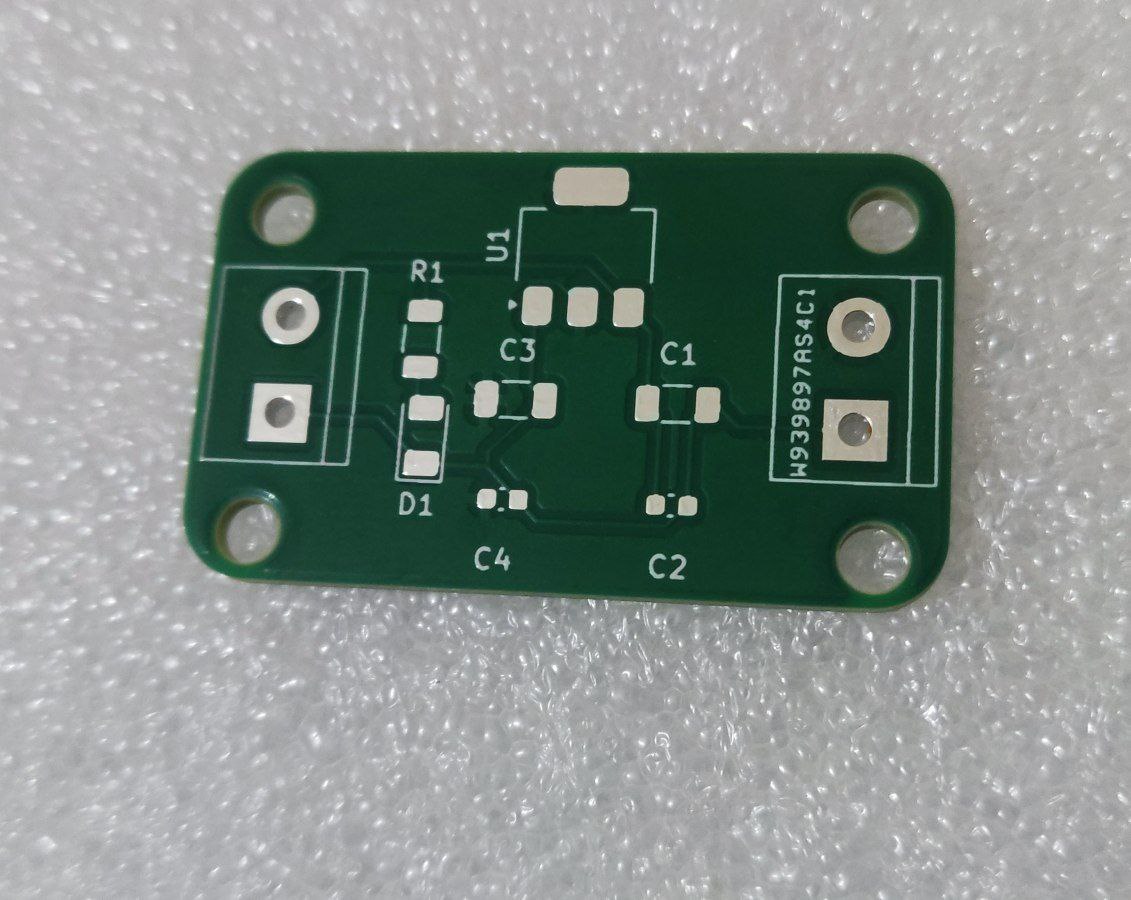

Regulator, from the project README
From the project README

Main components on the Regulator

AMS1117-3.3

Regulator bill of materials (BOM)

9 components, 6 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
2
Screw_Terminal_01x02
J1, J2
1
LED
D1
2
10u
C1, C3
2
.1u
C2, C4
1
2k2
R1

Regulator design files

The KiCad project lives in the BhoumikAcharya/smart-signage-boards repository on GitHub; these links point at the commit this page was built from.

Regulator: common questions

How big is the Regulator PCB?

The Regulator measures 37.6 × 22.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Regulator?

9 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Regulator design files?

From the BhoumikAcharya/smart-signage-boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Regulator design in my own project?

The repository has no license, so all rights stay with BhoumikAcharya. Use it as a reference, and ask the author before reusing the design.
