LPT Capture CN36 USBC FANCY
About the LPT Capture CN36 USBC FANCY PCB
LPT Capture CN36 USBC FANCY is an open source PCB design by bkw777, published on GitHub under the Custom license license. It is a 2-layer board measuring 68 × 32 mm, with 31 components from 19 distinct parts.
Other key parts include the FT245RNL. By type, the board carries 8 resistors, 4 capacitors, 3 jumpers, 2 transistors, 2 connectors and 2 switches.
From the project
Capture the output from a computer's parallel printer port.

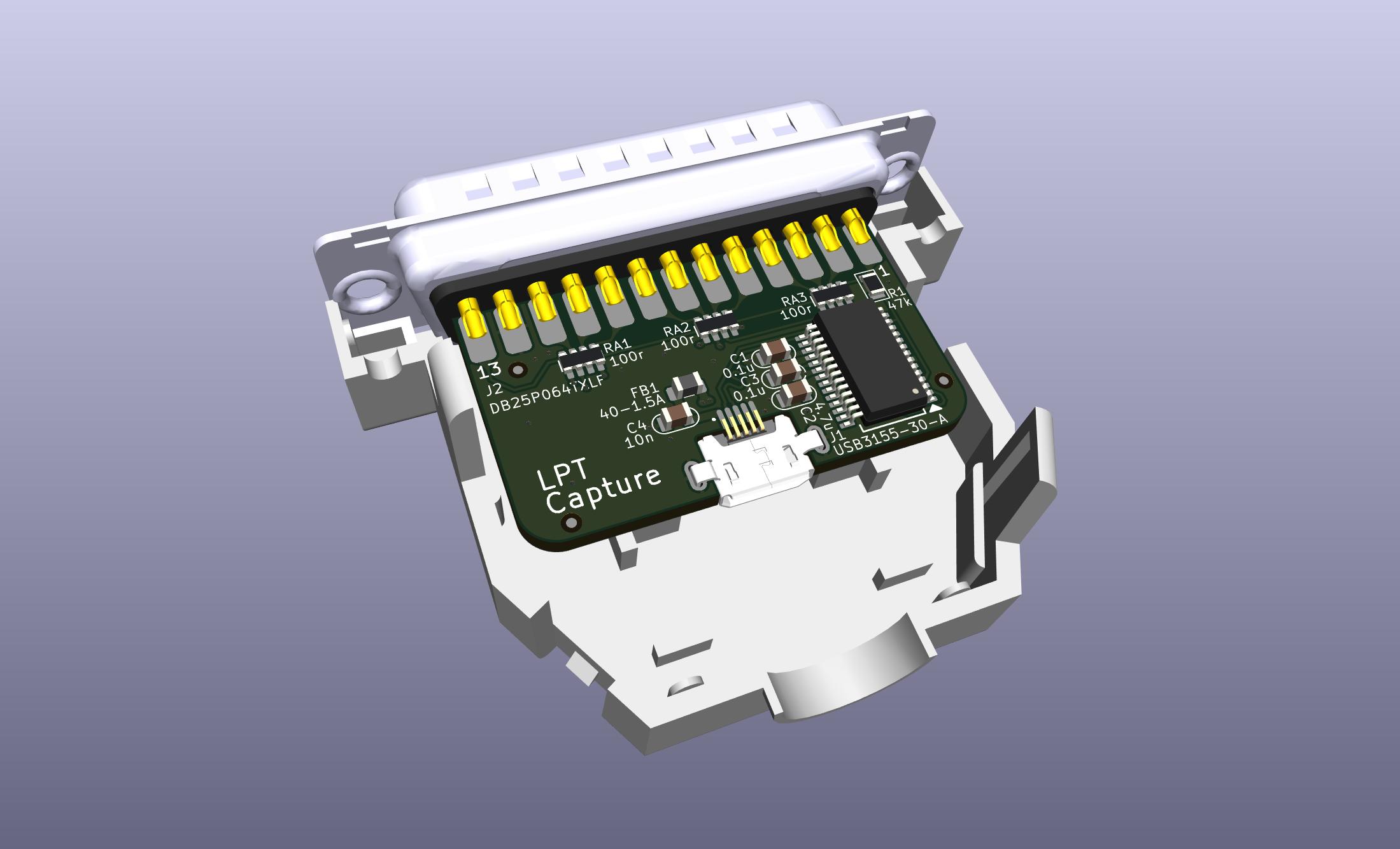

NOTE: Only the top/default DB25MicroUSBBASIC version is tested and known good. All other versions are untested guesswork.
The device appears as a usb-serial adapter to the modern machine. Drivers are standard in any modern os or platform. Use any serial comm program like PuTTY or TeraTerm or minicom or gnu screen etc to read the COM port. It doesn't matter what baud rate you select in the comm program.
Main components on the LPT Capture CN36 USBC FANCY
LPT Capture CN36 USBC FANCY bill of materials (BOM)
31 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FT245RNL FT245RL | SSOP-28 | U1 |
| 2 | SL2301S | SOT-23 | Q1, Q2 |
| 1 | GSB1C411101DS1HR | USBC_Receptacle_16pin_top_mount | J1 |
| 1 | 112-036-213R001 | Centronics_36F_RA_THT | J2 |
| 1 | 0ZCJ0050AF2E 500ma | F_1206 | F1 |
| 1 | GND_USBSHLD | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP1 |
| 1 | GND_LPTSHLD | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP2 |
| 1 | USBSHLD_LPTSHLD | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP3 |
| 1 | Housing | Housing_CN36 | N1 |
| 4 | CAY16-101J4LF 100r | R_Array_Convex_4x0603 | RA1, RA2, RA3, RA4 |
| 1 | 209-4MS SW_DIP_x04 | SW_DIP_SPST_Jumper_Dual_x04 | SW1 |
| 1 | RKB2SJM250SMTR LFS RESET | SW_SPST_PTS810 | SW2 |
| 2 | LTL-307GLC | LED_D5.0mm | LED1, LED2 |
| 1 | MH2029-400Y 40-1.5A | L_0805 | FB1 |
| 2 | 885012207045 0.1u | C_0805 | C1, C2 |
| 1 | GRM21BR71C475KE51L 4.7u | C_0805 | C3 |
| 1 | 885012207039 10n | C_0805 | C4 |
| 2 | RC0805FR-075K1L 5K1 | R_0805 | R1, R2 |
| 6 | RC0805JR-0710KL 10k | R_0805 | R3, R4, R5, R6, R7, R8 |
LPT Capture CN36 USBC FANCY design files
The KiCad project lives in the bkw777/LPT_Capture repository on GitHub; these links point at the commit this page was built from.
LPT Capture CN36 USBC FANCY: common questions
How big is the LPT Capture CN36 USBC FANCY PCB?
The LPT Capture CN36 USBC FANCY measures 68 × 32 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LPT Capture CN36 USBC FANCY?
31 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LPT Capture CN36 USBC FANCY design files?
From the bkw777/LPT_Capture repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LPT Capture CN36 USBC FANCY design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
