WP-2 128K RAM IC-Card

bkw777·WP-2_IC-Card·attic/small_pcb_in_3d_printed_carrier/PCB/WP-2_IC_Card_ROM_carried.kicad_pcb

WP-2 128K RAM IC-Card PCB layout, top view — open source board by bkw777
Simulate this board

About the WP-2 128K RAM IC-Card PCB

WP-2 128K RAM IC-Card is an open source PCB design by bkw777, published on GitHub under the Custom license license. It is a 2-layer board measuring 14.5 × 48.5 mm, with 4 components from 4 distinct parts.

Other key parts include the FLASH 256Kx8 5v Parallel. By type, the board carries 1 IC, 1 connector, 1 jumper and 1 resistor.

From the project

IC Cards for TANDY WP-2

The TANDY WP-2 has an expansion slot that accepts "IC Cards" that may be either RAM or ROM, up to 128K RAM, up to 256K ROM. Here are a few different types of cards to fit that slot. So far, one RAM and one ROM in the form of a small pcb that snaps into a 3d-printed carrier, and one RAM and one ROM in the form of a large pcb with no carrier. The large RAM card includes a battery backup.

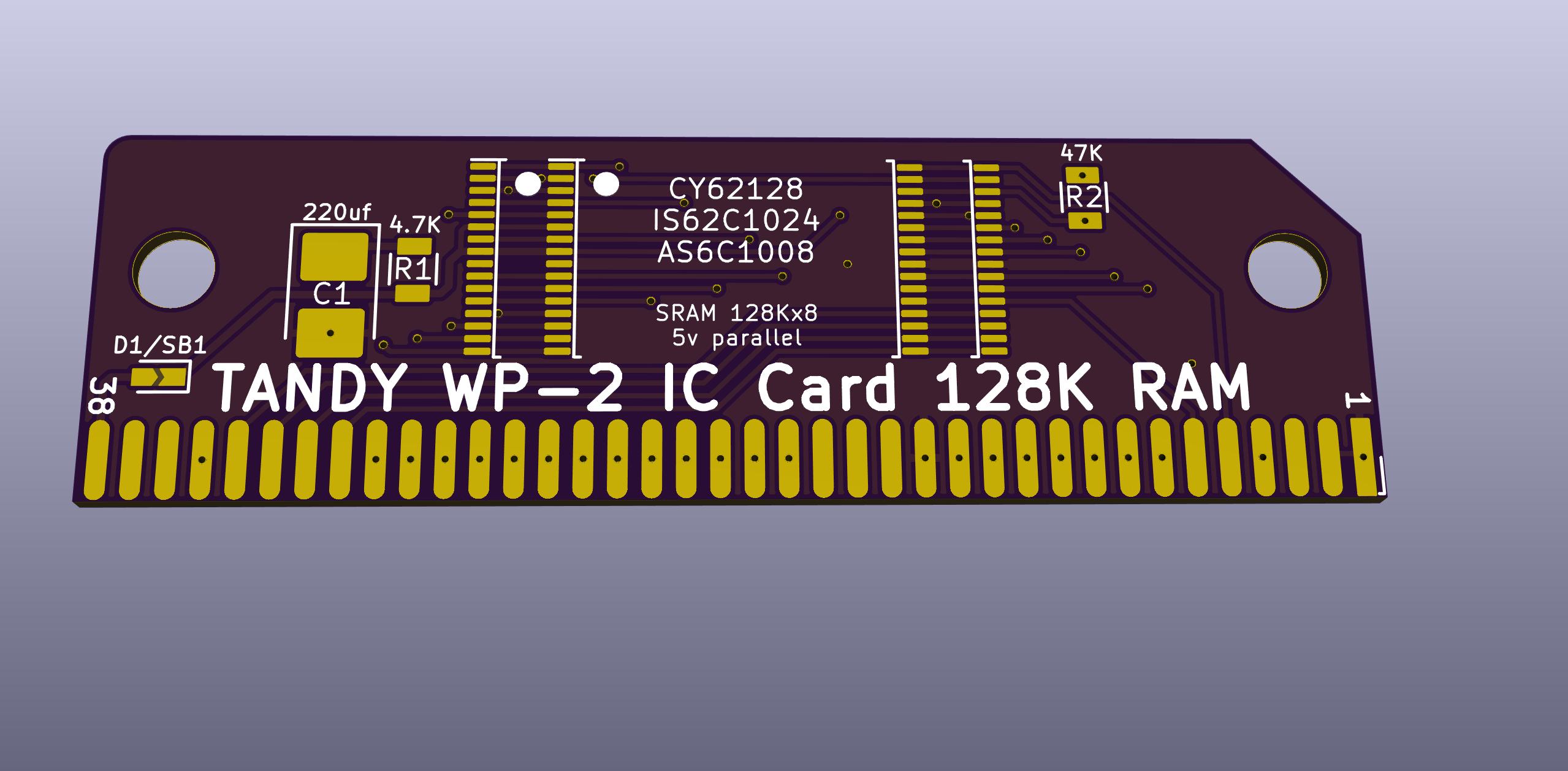

WP-2 128K RAM IC-Card, from the project README
From the project README

Main components on the WP-2 128K RAM IC-Card

FLASH 256Kx8 5v Parallel

WP-2 128K RAM IC-Card bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
FLASH 256Kx8 5v Parallel
U2
1
SMS-138-01-G-S
Conn_01x38_Female
J1
1
Write-Enable
JP1
1
RC0805FR-07100KL
47K
R1

WP-2 128K RAM IC-Card design files

The KiCad project lives in the bkw777/WP-2_IC-Card repository on GitHub; these links point at the commit this page was built from.

WP-2 128K RAM IC-Card: common questions

How big is the WP-2 128K RAM IC-Card PCB?

The WP-2 128K RAM IC-Card measures 14.5 × 48.5 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the WP-2 128K RAM IC-Card?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WP-2 128K RAM IC-Card design files?

From the bkw777/WP-2_IC-Card repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the WP-2 128K RAM IC-Card design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
