Ads1299 official prototype
About the Ads1299 official prototype PCB

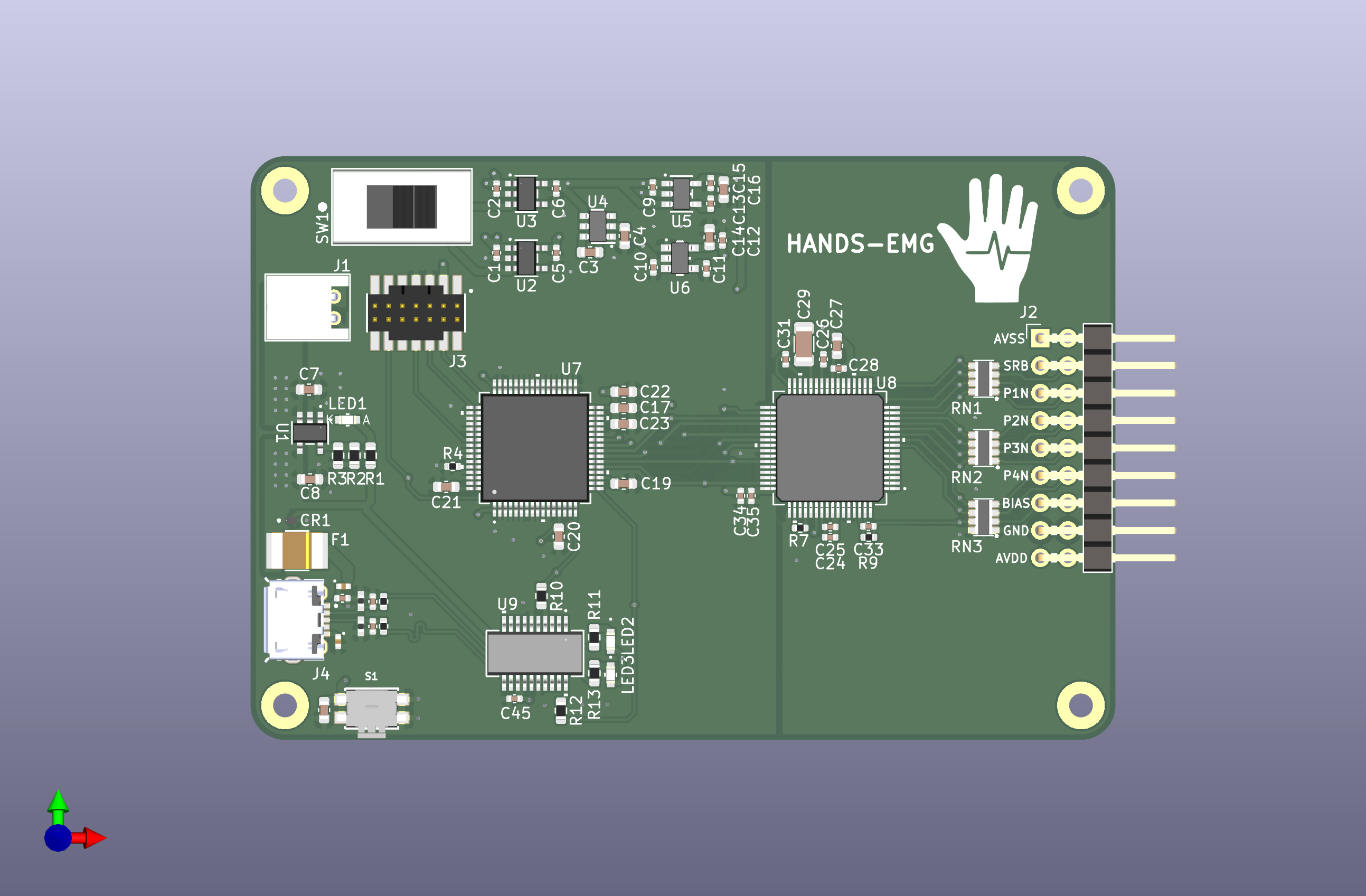

Ads1299 official prototype is an open source PCB design by blakep7, published on GitHub. It is a 4-layer board measuring 96 × 91 mm, with 109 components from 44 distinct parts.
Other key parts include the ADS1299-4PAGR, OPA376, 24AA256-I/ST and OPA376AID. By type, the board carries 46 capacitors, 34 resistors, 12 jumpers, 5 connectors, 4 ICs and 2 test points.
From the project
Each project is fully designed in KiCad and includes schematics, PCB layouts, and 3D models.
Each project is fully designed in KiCad and includes schematics, PCB layouts, and 3D models.
Description: Contains 3 PCBs, each designed with a specific purpose.
Key Components: - PMIC Board: Provide power to the following two PCBs - ADS1299 Board: Our AFE board that handles processing and digitizing EMG signals - STM32 Board: Our uC board that handles classification and compute
Main components on the Ads1299 official prototype
Ads1299 official prototype bill of materials (BOM)
109 components, 44 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADS1299-4PAGR | QFP50P1200X1200X120-64N | IC1 |
| 1 | OPA376 | SOIC127P599X175-8N | U4 |
| 1 | 24AA256-I/ST | SOP8P65_300X640X120L60X24N | U10 |
| 1 | OPA376AID | SOIC127P599X175-8N | U11 |
| 2 | CONN_01X01_PIN 1725656 Pololu.com | PHOENIX_1725656 | J2, J9 |
| 1 | CONN_01X01_PIN TSM-110-01-T-DV-P-TR Pololu.com | SAMTEC_TSM-110-01-T-DV-P-TR | J3 |
| 1 | CONN_01X01_PIN TSW-103-07-T-D Pololu.com | SAMTEC_TSW-103-07-T-D | J5 |
| 1 | CONN_01X01_PIN 36PIN_IDC Pololu.com | SAMTEC_SSW-118-21-F-D | J6 |
| 1 | AIN1 | 132134_AMP | AIN1 |
| 9 | TSW-103-07-T-S | SAMTEC_TSW-103-07-T-S | JP1, JP6, JP7, JP8, JP18, JP21, JP22, JP23 +1 |
| 2 | TSW-102-07-T-S | SAMTEC_TSW-102-07-T-S | JP5, JP19 |
| 1 | TSW-103-07-T-D | SAMTEC_TSW-103-07-T-D | JP25 |
| 1 | HC735-2.048MHZ | XTAL_FXO-HC735-8 | OSC1 |
| 1 | 5001 | KEYSTONE_5001 | TP2 |
| 1 | 5000 | KEYSTONE_5000 | TP3 |
| 1 | AVDD | KEYSTONE_5000 | TPAVDD1 |
| 1 | AVSS | KEYSTONE_5000 | TPAVSS1 |
| 1 | DVDD | KEYSTONE_5000 | TPDVDD1 |
| 1 | FCM 1608KF-601T03 FCM_1608KF-601T03 | BEADC1608X95N | FB1 |
| 2 | GRM319R61E106KA12D 1uF Murata Electronics | CAPC1608X90N | C1, C17 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GCM319R71H104KA37J 1uF Murata Electronics | CAPC1608X90N | C2 |
| 2 | GRM155R61E104KA87J 1uF Murata Electronics | CAPC1608X90N | C3, C5 |
| 7 | 1uF | CAPC1608X90N | C4, C23, C24, C76, C77, C97, C99 |
| 2 | GRM155R61E105KA12D 1uF Murata Electronics | CAPC1608X90N | C6, C7 |
| 1 | GRM1555C1E131JA01D 1uF Murata Electronics | CAPC1608X90N | C8 |
| 1 | GRM1555C1E100JA01D 100uF Murata Electronics | CAPC3225X280N | C9 |
| 1 | GRM1555C1E100JA01D 10uF Murata Electronics | CAPC2012X95N | C10 |
| 1 | GRM155R61A106ME11D 1uF Murata Electronics | CAPC1608X90N | C11 |
| 6 | GRM155R61A106ME11D 0.1uF Murata Electronics | CAPC1608X90N | C12, C13, C14, C15, C16, C18 |
| 3 | 0.1uF | CAPC1608X90N | C19, C94, C95 |
| 2 | 0.01uF | CAPC1608X90N | C20, C98 |
| 17 | 4.7nF | CAPC1608X90N | C72, C73, C75, C80, C81, C82, C83, C84 +9 |
| 1 | CR0402-JW-103GLF 0 Bourns | RESC1607X60N | R3 |
| 2 | CR0402-FX-3011GLF 10K Bourns | RESC1607X60N | R6, R7 |
| 1 | CR0402-FX-3833GLF 392K Bourns | RESC1608X55N | R8 |
| 1 | RN73H1ETTP2403F25 4.99K KOA Speer | RESC1608X60N | R10 |
| 2 | RN73H1ETTP1103F25 4.99K KOA Speer | RESC1608X60N | R11, R12 |
| 1 | RN73H1ETTP1103F25 0 KOA Speer | RESC1005X40 | R13 |
| 1 | RC0402FR-078R25L 0 YAGEO | RESC1005X40 | R14 |
| 4 | 0 | RESC1005X40 | R15, R71, R72, R73 |
| 2 | 2.0M | 0603 | R23, R24 |
| 1 | 0 | RESC1607X60N | R25 |
| 2 | 10K | RESC1607X60N | R67, R75 |
| 16 | 4.99K | RESC1608X60N | R80, R81, R82, R83, R84, R85, R86, R87 +8 |
Ads1299 official prototype design files
The KiCad project lives in the blakep7/HANDS-EMG repository on GitHub; these links point at the commit this page was built from.
Ads1299 official prototype: common questions
How big is the Ads1299 official prototype PCB?
The Ads1299 official prototype measures 96 × 91 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Ads1299 official prototype?
109 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ads1299 official prototype design files?
From the blakep7/HANDS-EMG repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ads1299 official prototype design in my own project?
The repository has no license, so all rights stay with blakep7. Use it as a reference, and ask the author before reusing the design.
