MegaCD-Connect-BD-Remake
About the MegaCD-Connect-BD-Remake PCB
MegaCD-Connect-BD-Remake is an open source PCB design by Board-Folk, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 98 × 44 mm, with 17 components from 9 distinct parts.
Other key parts include the GAL22V10, 74HC374, 74ACT10 and 74HC245. By type, the board carries 6 ICs, 6 capacitors, 3 connectors and 2 resistors.
From the project

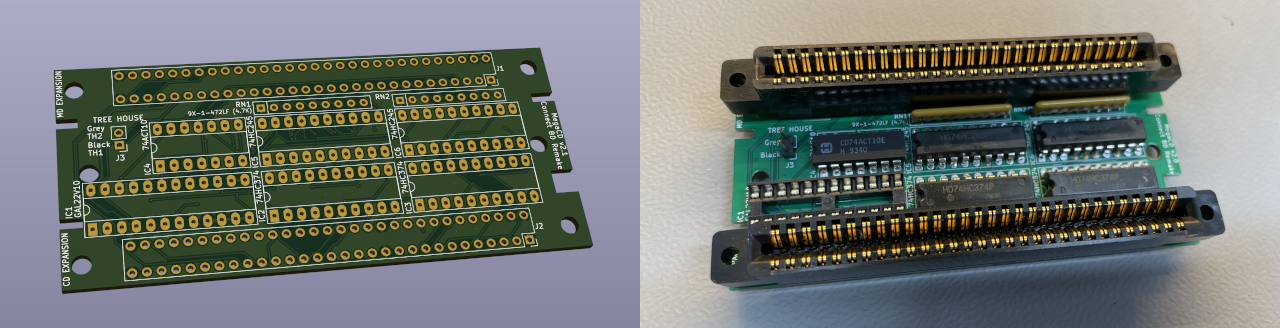

A Remake of the MegaCD Connect BD Logic Board, Targeting the 315-5477 (MCE V1) MegaCD
It is to replace the 837-8327-01 IC BD MEGA-CD CONNECT BD with a failed ASIC to the older Logic version of the board that has the Peel IC.
The board is not a clone, rather a remake as i do not have access to an original logic board version to do an exact replica of traces.
* The Gerbers have been created using the recommendations from JLCPCB.
* This board uses a GAL22V10 to achieve the same logic functions as the Peel IC. Jed file is provided. Use a MiniPro to write the Jed file to the GAL Chip.
Main components on the MegaCD-Connect-BD-Remake
MegaCD-Connect-BD-Remake bill of materials (BOM)
17 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GAL22V10 | DIP-24_W7.62mm_Socket_LongPads | IC1 |
| 2 | 74HC374 | DIP-20_W7.62mm_Socket_LongPads | IC2, IC3 |
| 1 | 74ACT10 | DIP-14_W7.62mm_Socket_LongPads | IC4 |
| 2 | 74HC245 | DIP-20_W7.62mm_Socket_LongPads | IC5, IC6 |
| 1 | MD EXPANSION | PCB-Connector | J1 |
| 1 | CD EXPANSION | PCB-Connector | J2 |
| 1 | TREE HOUSE | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 6 | 100nF | C_1206_3216Metric | C1, C2, C3, C4, C5, C6 |
| 2 | 9X-1-472LF (4.7K) | R_Array_SIP9 | RN1, RN2 |
