NeoGeoAES-3.5
About the NeoGeoAES-3.5 PCB
NeoGeoAES-3.5 is an open source PCB design by Board-Folk, published on GitHub. It is a board, with 22 components from 17 distinct parts.
Other key parts include the NEO-B1, PST518B, 74LS244, TC531000AP and 43256. By type, the board carries 9 ICs, 7 capacitors, 4 resistors, 1 jumper and 1 switch.
From the project
NeoGeo AES 3.5 Schematics and PCB

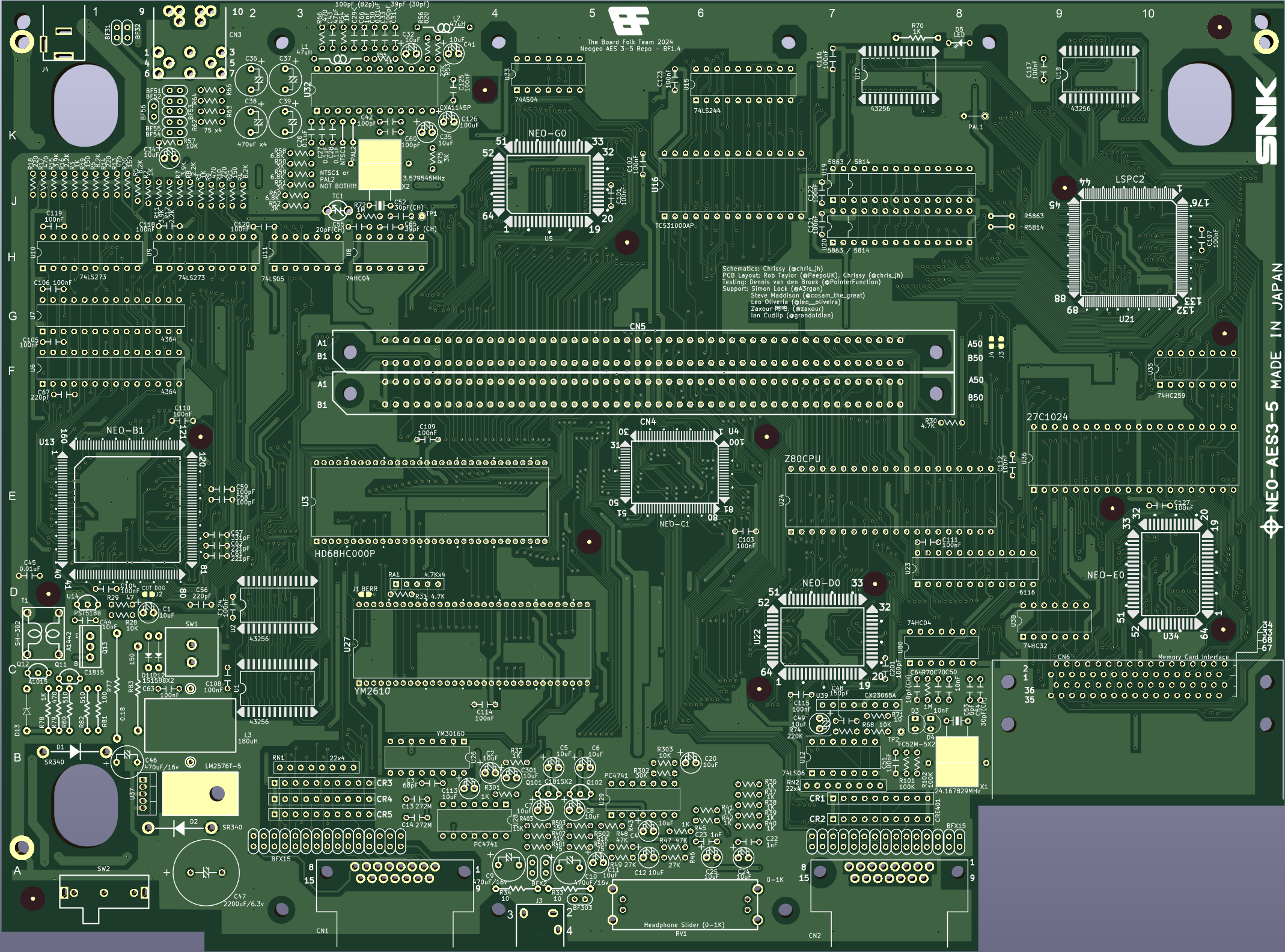

This repository contains a recreation of the main board PCB for NeoGeo AES consoles. This recreation is based on the available schematics for the NeoGeo AES and reverse engineering using scanned images of the original board's copper layers, so should be a reasonably accurate reproduction.
Minimum track widths, clearances and via sizes are within the standard offering of modern PCB fabricators. Development was done using JLCPCB and as such the Gerber files are provided to their specification.
Main components on the NeoGeoAES-3.5
NeoGeoAES-3.5 bill of materials (BOM)
22 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NEO-B1 | NEO-B1 | U13 |
| 1 | PST518B | PST518B | U14 |
| 1 | 74LS244 | DIP-20_W7.62mm | U15 |
| 1 | TC531000AP | DIP-28_W15.24mm | U16 |
| 2 | 43256 | 43256 | U17, U18 |
| 2 | 5863 / 5814 | DIP-28_W7.62mm | U19, U20 |
| 1 | LSPC2 | LSPC2 | U21 |
| 1 | J3 | J2 | JP3 |
| 1 | RESET SWITCH | SW1 | SW1 |
| 1 | 10UF 10uF | CAP2-2.5mm | C1 |
| 1 | 220PF 220pF | CAP3-5mm | C56 |
| 1 | 331PF 331pF | CAP3-5mm | C57 |
| 2 | 100pF | CAP3-5mm | C58, C59 |
| 2 | 221PF 221pF | CAP3-5mm | C61, C62 |
| 1 | 10K | Resistor1-5mm | R28 |
| 1 | 47 | Resistor1-5mm | R29 |
| 2 | 0 | PAL | R5814, R5863 |
NeoGeoAES-3.5 design files
The KiCad project lives in the Board-Folk/NeoGeoAES-3.5 repository on GitHub; these links point at the commit this page was built from.
NeoGeoAES-3.5: common questions
How many components are on the NeoGeoAES-3.5?
22 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the NeoGeoAES-3.5 design files?
From the Board-Folk/NeoGeoAES-3.5 repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.
Can I use the NeoGeoAES-3.5 design in my own project?
The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
