PC-Engine-GT-Controller
About the PC-Engine-GT-Controller PCB
PC-Engine-GT-Controller is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 94 × 79.1 mm, with 36 components from 21 distinct parts.
Other key parts include the 74HC157 and 74HC163. By type, the board carries 17 resistors, 10 switches, 3 connectors, 2 ICs, 2 capacitors and 1 diode.
From the project

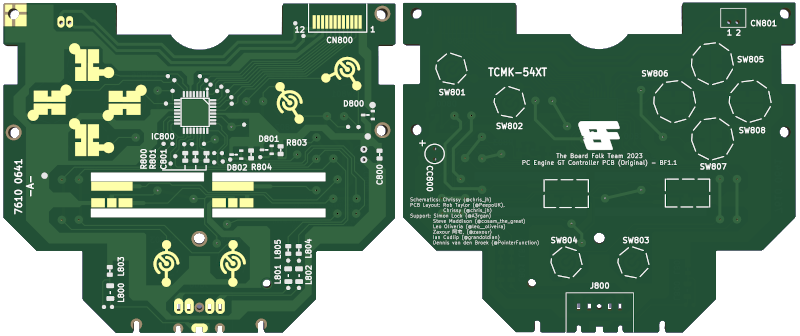

Reproduction PCB for PC Engine GT/TurboExpress Controller Board
The original recreation is based on the reverse engineering of the original PCB and schematics using scanned images of the original board's copper layers, so should be a reasonably accurate reproduction.
The remaster is based on the schematics of the pc engine console controller which uses logic chips to control the user input into the GT Handheld. Some functionality is lost using this board, such as using the Link Cable and no sleep functionality for the screen.
Main components on the PC-Engine-GT-Controller
PC-Engine-GT-Controller bill of materials (BOM)
36 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HC157 | SOIC-16_3.9x9.9mm_P1.27mm | U1 |
| 1 | 74HC163 | SOIC-16_3.9x9.9mm_P1.27mm | U2 |
| 1 | Conn_01x12 | CN800 | CN800 |
| 1 | AUDIO | CN801 | CN801 |
| 1 | LINK | J800 | J800 |
| 1 | 47uF 6.3v | CP_Radial_D5.0mm_P2.50mm | CC800 |
| 1 | I | Switch Type 3 | SW801 |
| 1 | II | Switch Type 2 | SW802 |
| 1 | SELECT | Switch Type 1 | SW803 |
| 1 | RUN | Switch Type 1 | SW804 |
| 1 | UP | Switch Type 4 | SW805 |
| 1 | RIGHT | Switch Type 5 | SW806 |
| 1 | DOWN | Switch Type 4 | SW807 |
| 1 | LEFT | Switch Type 5 | SW808 |
| 1 | I TURBO | Turbo Switch | SW809 |
| 1 | II TURBO | Turbo Switch | SW810 |
| 1 | 1SS187 | Diode SOT-23 | D800 |
| 2 | 0.1uF | R_0805_2012Metric | C702, C703 |
| 10 | 47k | R_0805_2012Metric | R701, R702, R703, R704, R705, R706, R707, R708 +2 |
| 3 | 680 | R_0805_2012Metric | R711, R712, R713 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 330 | R_0805_2012Metric | R714, R715, R716, R717 |
