Magnetbandanschluss

boert·JU-TE-Computer·Erweiterungen/Magnetbandanschluss/Magnetbandanschluss.kicad_pcb

Magnetbandanschluss PCB layout, top view — open source board by boert

Simulate this board

About the Magnetbandanschluss PCB

Magnetbandanschluss is an open source PCB design by boert, published on GitHub. It is a 2-layer board measuring 40 × 40 mm, with 26 components from 22 distinct parts.

Other key parts include the DL000D, B555D and B761D. By type, the board carries 7 resistors, 6 capacitors, 5 crystals, 4 test points, 3 ICs and 1 transformer.

From the project

Schaltpläne für den JU+TE Computer, auch genannt TINY

Für den Minimalbetrieb sind ein Speichermodul (Typ A, B oder C) und eine Tastatur erforderlich.

Die mögliche Bildschirmauflösung und die nutzbare Farbtiefe hängt vom Speicherausbau ab:

Speichermodule | Video-RAM | Auflösung | Farbtiefe -------------- | --------: | :-------: | --------- 1 | 8 kByte | 320x192 | s/w 2 | 16 kByte | 640x192 | s/w 4 | 32 kByte | 320x192 | 16 Farben 4 | 32 kByte | 640x192 | 8 Farben

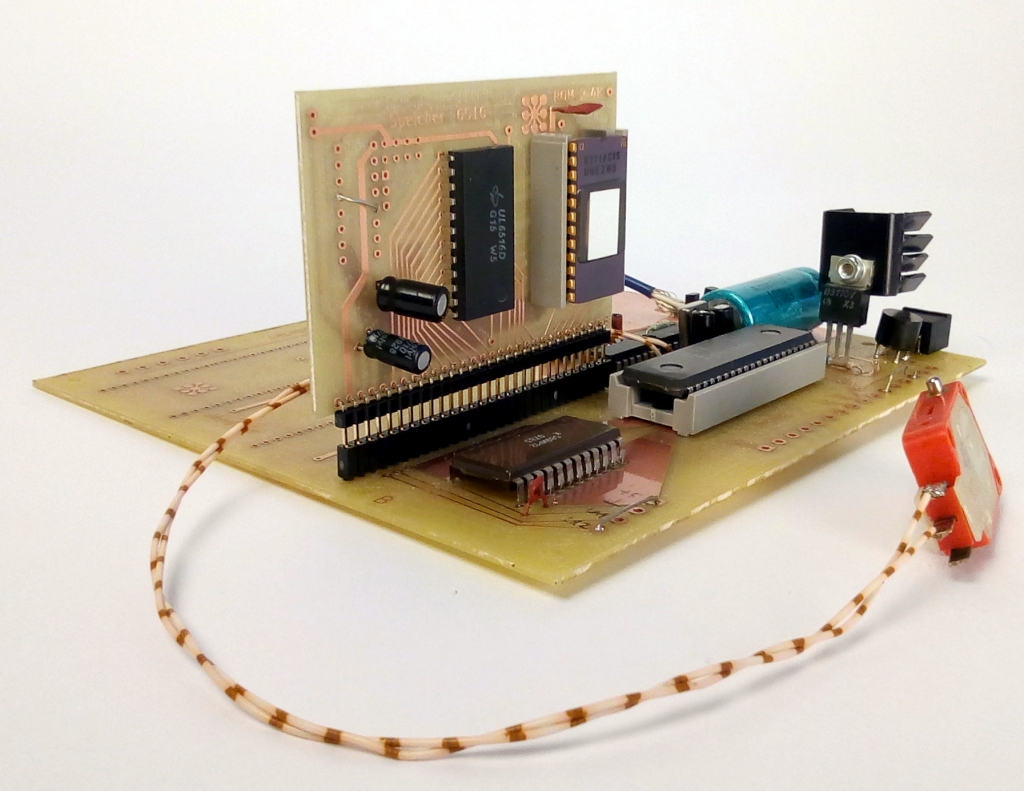

Magnetbandanschluss, from the project README — From the project README

Main components on the Magnetbandanschluss

DL000D B555D B761D

Magnetbandanschluss bill of materials (BOM)

26 components, 22 distinct parts.

Qty	Part	Footprint	Refs
1	DL000D	DIP-14_W7.62mm_Socket	U16
1	B555D	DIP-8_W7.62mm_Socket	U17
1	B761D	DIP-6_W7.62mm_Socket	U18
1	+5V	Pin_D1.0mm_L10.0mm	X1
1	P3.7	Pin_D1.0mm_L10.0mm	X2
1	P3.6	Pin_D1.0mm_L10.0mm	X3
1	00	Pin_D1.0mm_L10.0mm	X4
1	P3.0	Pin_D1.0mm_L10.0mm	X12
1	SC307	TO-92L_Inline_Wide	T1
1	E	Pin_D1.0mm_L10.0mm	TP1
1	A	Pin_D1.0mm_L10.0mm	TP2
1	L	Pin_D1.0mm_L10.0mm	TP3
1	D	Pin_D1.0mm_L10.0mm	TP4
2	10nF	C_Disc_D3.0mm_W1.6mm_P2.50mm	C13, C16
1	51pF	C_Axial_L3.8mm_D2.6mm_P12.50mm_Horizontal	C14
1	22nF	C_Axial_L3.8mm_D2.6mm_P12.50mm_Horizontal	C15
1	4,7µF/16V	CP_Radial_D5.0mm_P2.50mm	C17
1	1µF/40V	CP_Radial_D6.3mm_P2.50mm	C18
1	100	R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal	R13
3	22k	R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal	R14, R15, R19

Show 2 more

Qty	Part	Footprint	Refs
1	47k	Potentiometer_Piher_PT-10-H01_Horizontal	R16
2	100k	R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal	R17, R18

Magnetbandanschluss design files

The KiCad project lives in the boert/JU-TE-Computer repository on GitHub; these links point at the commit this page was built from.

LayoutErweiterungen/Magnetbandanschluss/Magnetbandanschluss.kicad_pcb

Magnetbandanschluss: common questions

How big is the Magnetbandanschluss PCB?

The Magnetbandanschluss measures 40 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Magnetbandanschluss?

26 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the Magnetbandanschluss design files?

From the boert/JU-TE-Computer repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Magnetbandanschluss design in my own project?

The repository has no license, so all rights stay with boert. Use it as a reference, and ask the author before reusing the design.
