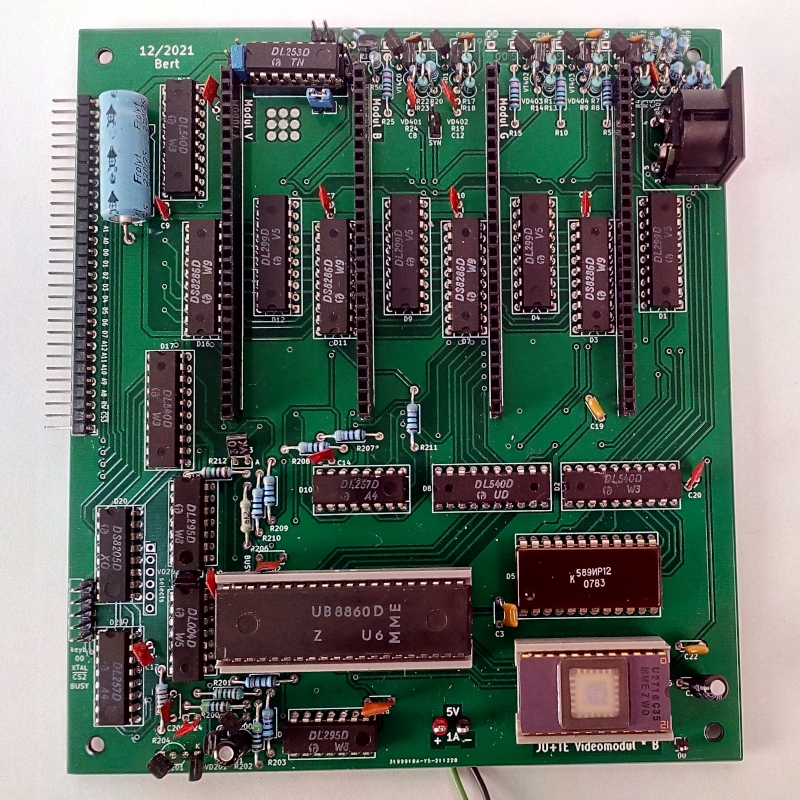

Videomodul 2021 PCB layout, top view — open source board by boert
Simulate this board

About the Videomodul 2021 PCB

Videomodul 2021 is an open source PCB design by boert, published on GitHub. It is a 2-layer board measuring 141.5 × 160 mm, with 135 components from 63 distinct parts.

By type, the board carries 44 resistors, 27 capacitors, 22 diodes, 12 crystals, 7 jumpers and 6 test points.

From the project

Schaltpläne für den JU+TE Computer, auch genannt TINY

Mit der Videoerweiterung läßt sich das Grundsystem zum 6k-System erweitern.

Die Beschreibung eines passenden SCART-Kabels ist bei Ulrich Zander zu finden: https://www.sax.de/~zander/z9001/tp.html#TV

Für den Speicherbereich zwischen %6000 und %7FFF gibt es einen separaten Adressdekoder auf der Videoerweiterung. Damit neben der Bildschirmsteuerung die Tastatur weiterhin funktioniert, muß das /CS3-Signal zum Tastaturlatch (V40098D, Pin 1 und 15) aufgetrennt werden. Die Tastatur bekommt ihr Auswahlsignal (/KEY) nun von der Videoerweiterung. Ein Rückbau ist durch Einsatz einer Steckbrücke…

Videomodul 2021, from the project README
From the project README

Videomodul 2021 bill of materials (BOM)

135 components, 63 distinct parts.

QtyPartRefs
1
Bus
X200
1
~{CS2}
X201
1
XTAL
X202
1
select
X203
1
~{KEY}
X204
1
BUSY
X205
4
8k RAM-Modul
X300, X301, X302, X303
1
DIN-5_180degree
X401
1
00
X405
1
HR_high
JP501
1
V
JP502
1
HR_P34
JP503
1
HR_low
JP504
1
W
JP505
1
SYN
JP506
1
B
JP507
1
00
TP201
1
V
TP400
1
B
TP401
1
S
TP402
Show 43 more
QtyPartRefs
1
G
TP403
1
R
TP404
9
SAY32
VD200, VD202, VD203, VD400, VD401, VD402, VD403, VD404 +1
1
SZX21/7.5
VD201
1
SC308
VT200
6
SC236
VT201, VT400, VT401, VT402, VT403, VT404
1
DL253D
D0
4
DL299D
D1, D4, D9, D12
4
DL540D
D2, D8, D15, D17
4
DS8286D
D3, D7, D11, D16
1
DS8212D
D5
1
U2716
D6
2
DL257D
D10, D21
1
UB8860
D13
2
DL295D
D14, D18
1
DL004D
D19
1
DS8205D
D20
5
33pF
C1, C6, C11, C16, C21
1
220µF/16V
C2
3
100nF
C3, C19, C22
13
22nF
C4, C5, C7, C8, C9, C10, C12, C13 +5
1
22nF
C18
1
47µF/10V
C23
1
33pF
C200
1
1µF
C201
1
220p
C202
10
1k
R2, R3, R7, R8, R12, R13, R17, R18 +2
5
2,2k
R4, R9, R14, R19, R24
4
220
R5, R10, R15, R25
4
220
R20, R402, R403, R404
1
6,8k
R26
2
4,7k
R200, R202
1
1k
R201
6
470
R203, R207, R208, R209, R210, R211
1
8,2k
R204
1
1,2k
R205
1
6,2k
R206
1
1,5k
R212
1
51
R401
3
160
R405, R408, R409
1
100
R406
1
75
R407
1
3,3k
R501
