Knit yarn is an open source PCB design by borisnimcevic, published on GitHub. It is a 2-layer board measuring 33.8 × 36.1 mm, with 14 components from 4 distinct parts.
By type, the board carries 6 diodes, 6 resistors, 1 battery holder and 1 switch.
From the project

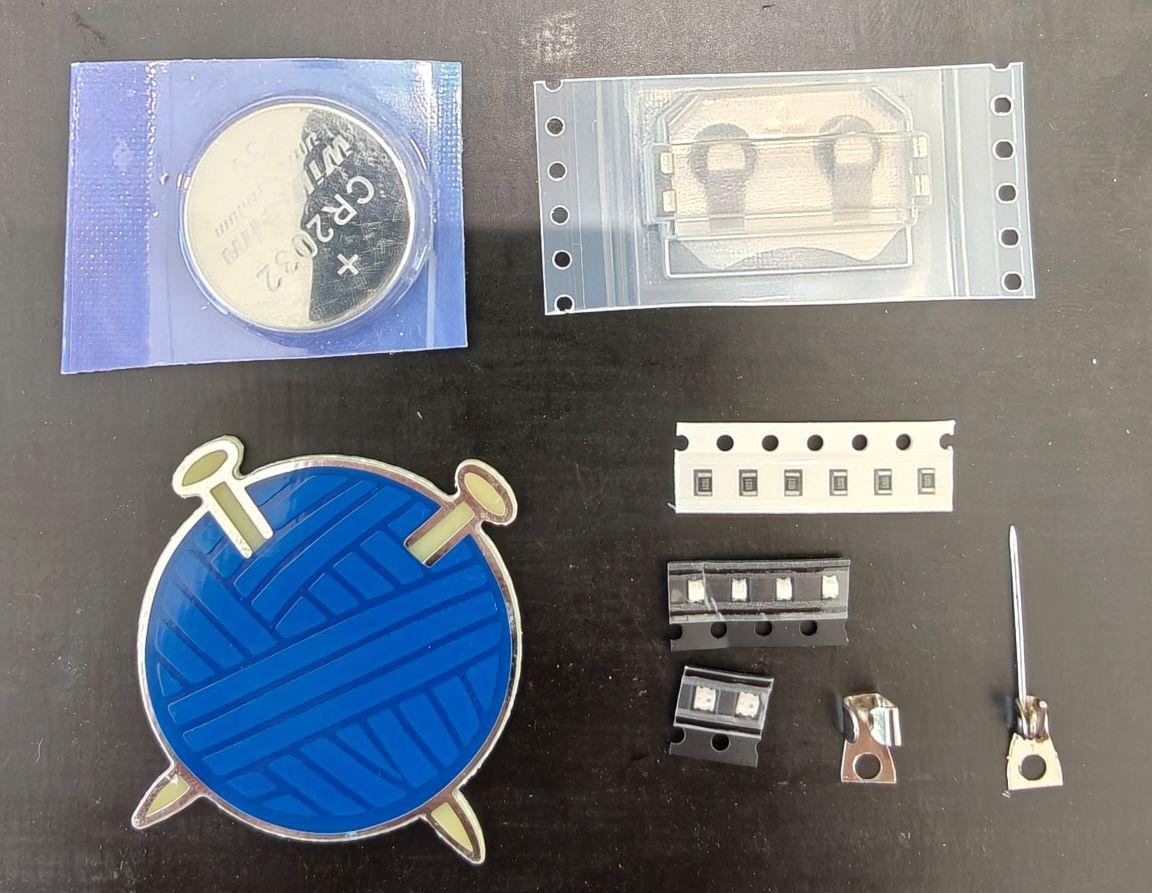

A round PCB badge shaped like a ball of yarn with knitting needles. Six LEDs shine through the board face-down, lighting up the design from behind. Powered by a CR2032 coin cell; the brooch pin doubles as the power switch.
A round PCB badge shaped like a ball of yarn with knitting needles. Six LEDs shine through the board face-down, lighting up the design from behind. Powered by a CR2032 coin cell; the brooch pin doubles as the power switch.
Designed in KiCad. Three badge variants and one SAO variant are included.
Ready-to-order Gerber zips are in the order/ folder:
- order/knityarnbadgev1.zip - order/knityarnbadgev2.zip - order/knityarnbadgev3.zip ← recommended - order/knityarnSAO.zip`
Knit yarn bill of materials (BOM)
14 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Battery_Cell | BatteryHolder_MYOUNG_BS-07-A1BJ001_CR2032 | BT1 |
| 1 | SW_SPST | brooch_SW_20mm | SW1 |
| 6 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D2, D3, D4, D5, D6 |
| 6 | TBD | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3, R4, R5, R6 |
