N64rgb v3
About the N64rgb v3 PCB
N64rgb v3 is an open source PCB design by borti4938, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 160.3 × 25.5 mm, with 43 components from 17 distinct parts.
Other key parts include the 5M80ZE64/5M160ZE64, ths7374 and AP7312-1833W6-7. By type, the board carries 28 resistors, 11 capacitors, 3 ICs and 1 connector.
From the project

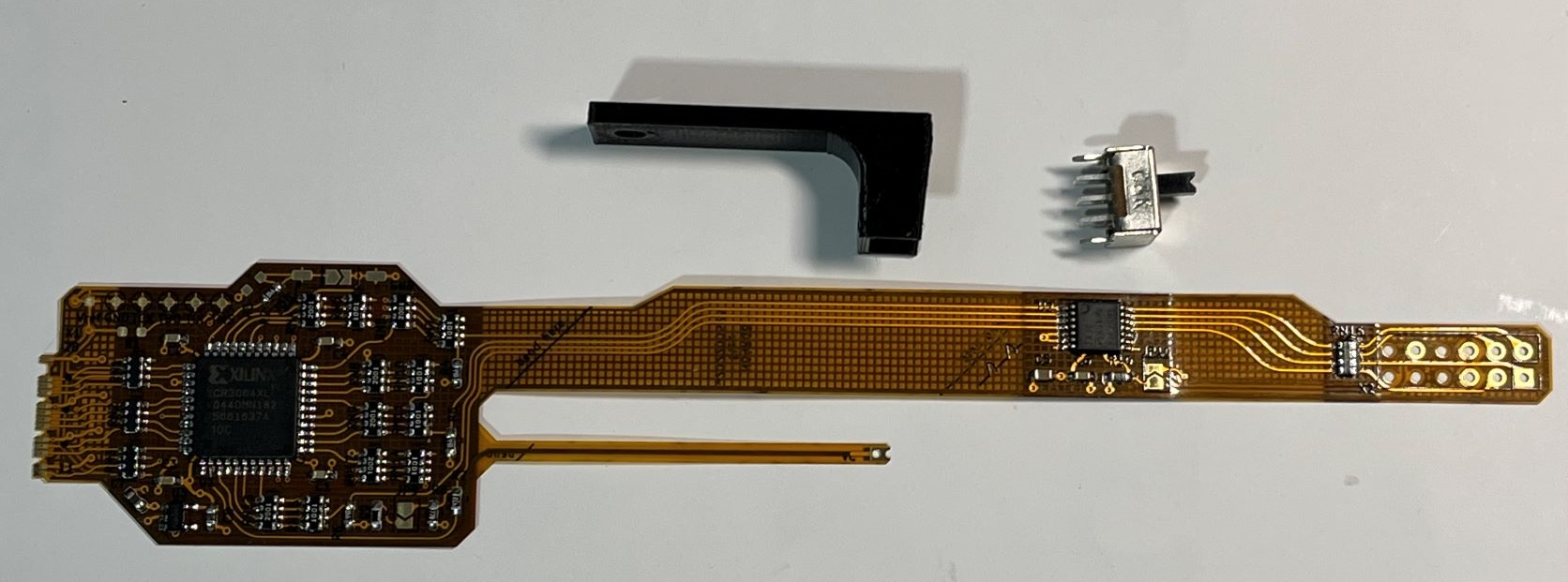

This repository contains all you need files to build your own DIY N64RGBv3 / N64RGB_Flex board. Firmware is supplied in this repository, too.
This repository contains all you need files to build your own DIY N64RGBv3 / N64RGB_Flex board. Firmware is supplied in this repository, too.
Please don't ask me for selling a modding. I either sell some prototypes on some forums marketplaces (which is very unlikely) or I don't have any of the boards. This is a complete DIY modding project. Everybody is on his own here.
Main components on the N64rgb v3
N64rgb v3 bill of materials (BOM)
43 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 5M80ZE64/5M160ZE64 | EQFP64P_A1P2-D4P5_INT | U1 |
| 1 | ths7374 | TSSOP-14_4.4x5mm_P0.65mm | U2 |
| 1 | AP7312-1833W6-7 | SOT-23-6_Handsoldering | U3 |
| 1 | OS202011MS2QS1 | SolderWirePad_1x01_SMD_1x2mm | J7 |
| 7 | 0.1u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C2, C3, C4, C5, C6, C8 |
| 1 | 22u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7 |
| 3 | 1u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C9, C10, C11 |
| 1 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 2 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3 |
| 4 | 280 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4, R5, R6, R7 |
| 2 | 4k7 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8, R11 |
| 1 | 6k19 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R9 |
| 1 | 523 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10 |
| 3 | BLA2ABB121SN4D | R_Array_Convex_4x0402 | RN1, RN2, RN3 |
| 6 | EXB-28V202JX | R_Array_Convex_4x0402 | RN4, RN5, RN6, RN7, RN8, RN9 |
| 6 | EXB-38V102JV | R_Array_Convex_4x0603 | RN10, RN11, RN12, RN13, RN14, RN15 |
| 2 | YC164-FR-0775RL | R_Array_Convex_4x0603 | RN16, RN17 |
N64rgb v3 design files
The KiCad project lives in the borti4938/n64rgb_flex repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/n64rgb_v3.kicad_pcb
- Schematicpcb/n64rgb_v3.kicad_sch
N64rgb v3: common questions
How big is the N64rgb v3 PCB?
The N64rgb v3 measures 160.3 × 25.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the N64rgb v3?
43 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the N64rgb v3 design files?
From the borti4938/n64rgb_flex repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the N64rgb v3 design in my own project?
Yes, under the terms of its GPL-3.0 license, which borti4938 chose for the repository.
