PCB-ADC-Buttons for-M5
About the PCB-ADC-Buttons for-M5
PCB-ADC-Buttons for-M5 is an open source PCB design by botanicfields, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 63 × 28 mm, with 17 components from 15 distinct parts.
Other key parts include the XC6206P332MR. By type, the board carries 6 resistors, 5 switches, 3 capacitors, 1 IC, 1 transistor and 1 connector.
From the project

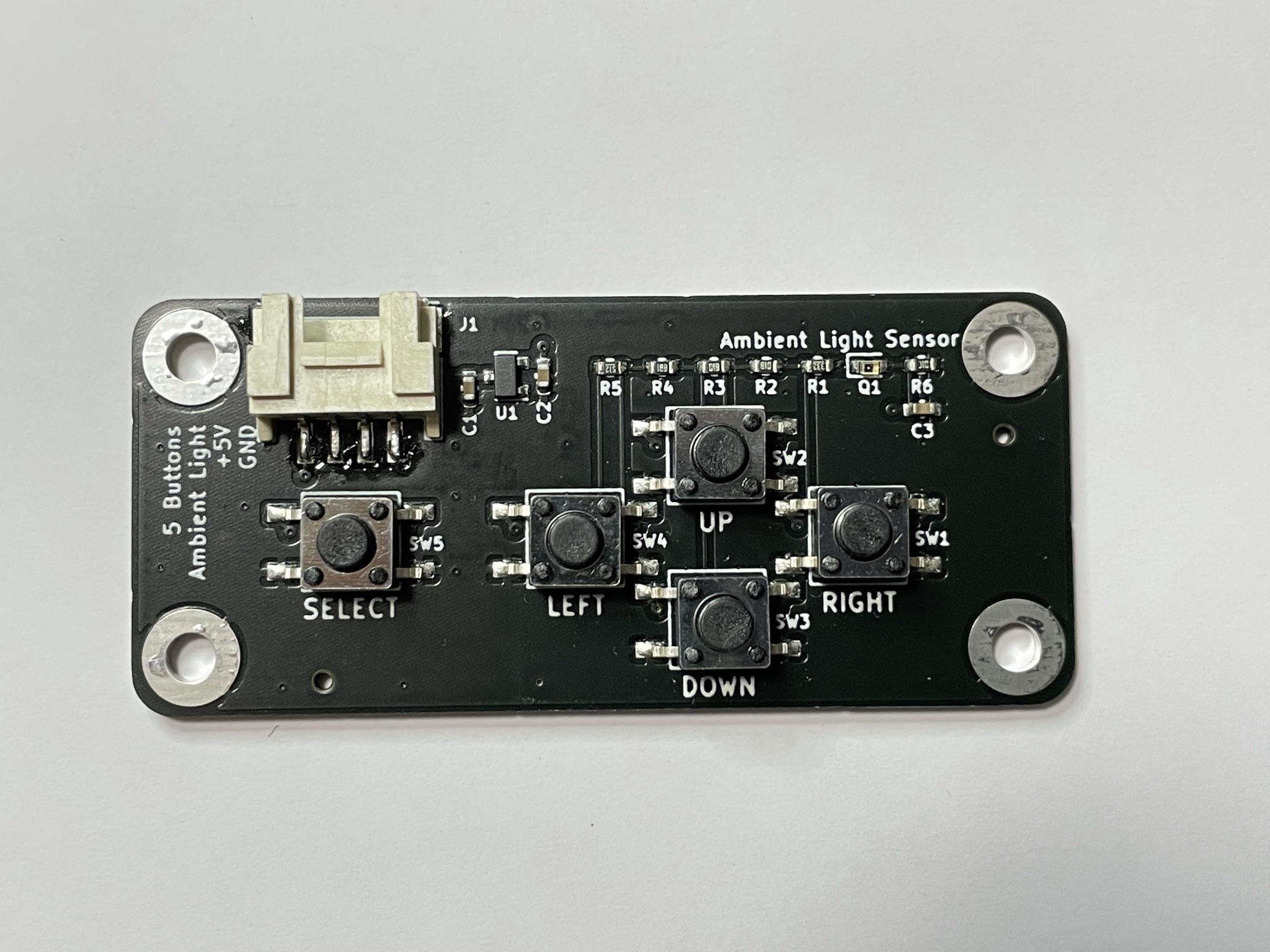

a PCB converts 5 buttons into 1 analog output
https://www.switch-science.com/catalog/7227/
- 周囲の明るさをアナログ電圧で出力します - 押しボタン 5 個の操作を、1 本のアナログ電圧で出力します - GROVE コネクタで接続します - 出力レベルは 0 ~ 3.3V で、M5(ESP32) の GPIO に合わせています - 電源は 5V で、M5シリーズの GROVE コネクタに合わせています - JC_Button と同等の判定を可能とするプログラムを用意しています - 手に持つことを考慮し、スルーホール部品を使用していません - センサーへの影響を考慮し、パイロットランプはありません。
- M5Stack Basic の GROVE コネクタに直結して使用することはできません。 「GROVE-ジャンパケーブル」などを用いて、アナログ入力の GPIO および 5V, GND に接続する必要があります。
Main components on the PCB-ADC-Buttons for-M5
PCB-ADC-Buttons for-M5 bill of materials (BOM)
17 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XC6206P332MR | SOT-23 | U1 |
| 1 | ALS-PT19 | BF@ALS-PT19_0603_1608Metric | Q1 |
| 1 | Analog | HW4-SMD-2.0-90D | J1 |
| 1 | C83206 RIGHT | BF@K2-6639SP | SW1 |
| 1 | C83206 UP | BF@K2-6639SP | SW2 |
| 1 | C83206 DOWN | BF@K2-6639SP | SW3 |
| 1 | C83206 LEFT | BF@K2-6639SP | SW4 |
| 1 | C83206 SELECT | BF@K2-6639SP | SW5 |
| 2 | 1u | BF_C_0603_1608Metric | C1, C2 |
| 1 | 0.1U 0.1u | BF_C_0603_1608Metric | C3 |
| 1 | 3.3K 3.3k | BF_R_0603_1608Metric | R1 |
| 2 | 1k | BF_R_0603_1608Metric | R2, R3 |
| 1 | 1.5K 1.5k | BF_R_0603_1608Metric | R4 |
| 1 | 5.1K 5.1k | BF_R_0603_1608Metric | R5 |
| 1 | 10K 10k | BF_R_0603_1608Metric | R6 |
PCB-ADC-Buttons for-M5 design files
The KiCad project lives in the botanicfields/PCB-ADC-Buttons-for-M5 repository on GitHub; these links point at the commit this page was built from.
PCB-ADC-Buttons for-M5: common questions
How big is the PCB-ADC-Buttons for-M5?
The PCB-ADC-Buttons for-M5 measures 63 × 28 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB-ADC-Buttons for-M5?
17 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PCB-ADC-Buttons for-M5 design files?
From the botanicfields/PCB-ADC-Buttons-for-M5 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the PCB-ADC-Buttons for-M5 design in my own project?
Yes, under the terms of its GPL-3.0 license, which botanicfields chose for the repository.
