PCB-MBUS-AquesTalk pico-LSI
About the PCB-MBUS-AquesTalk pico-LSI
PCB-MBUS-AquesTalk pico-LSI is an open source PCB design by botanicfields, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 50 × 50 mm, with 38 components from 27 distinct parts.
Other key parts include the ATP3011, ATP3012 and LM4871. By type, the board carries 12 capacitors, 12 resistors, 5 connectors, 3 ICs, 2 transistors and 1 crystal.
From the project
MBUS Module of AquesTalk pico LSI for M5Stack
- ハンダジャンパJP8, JP9を追加しました。 - ランドJ5を追加しました。

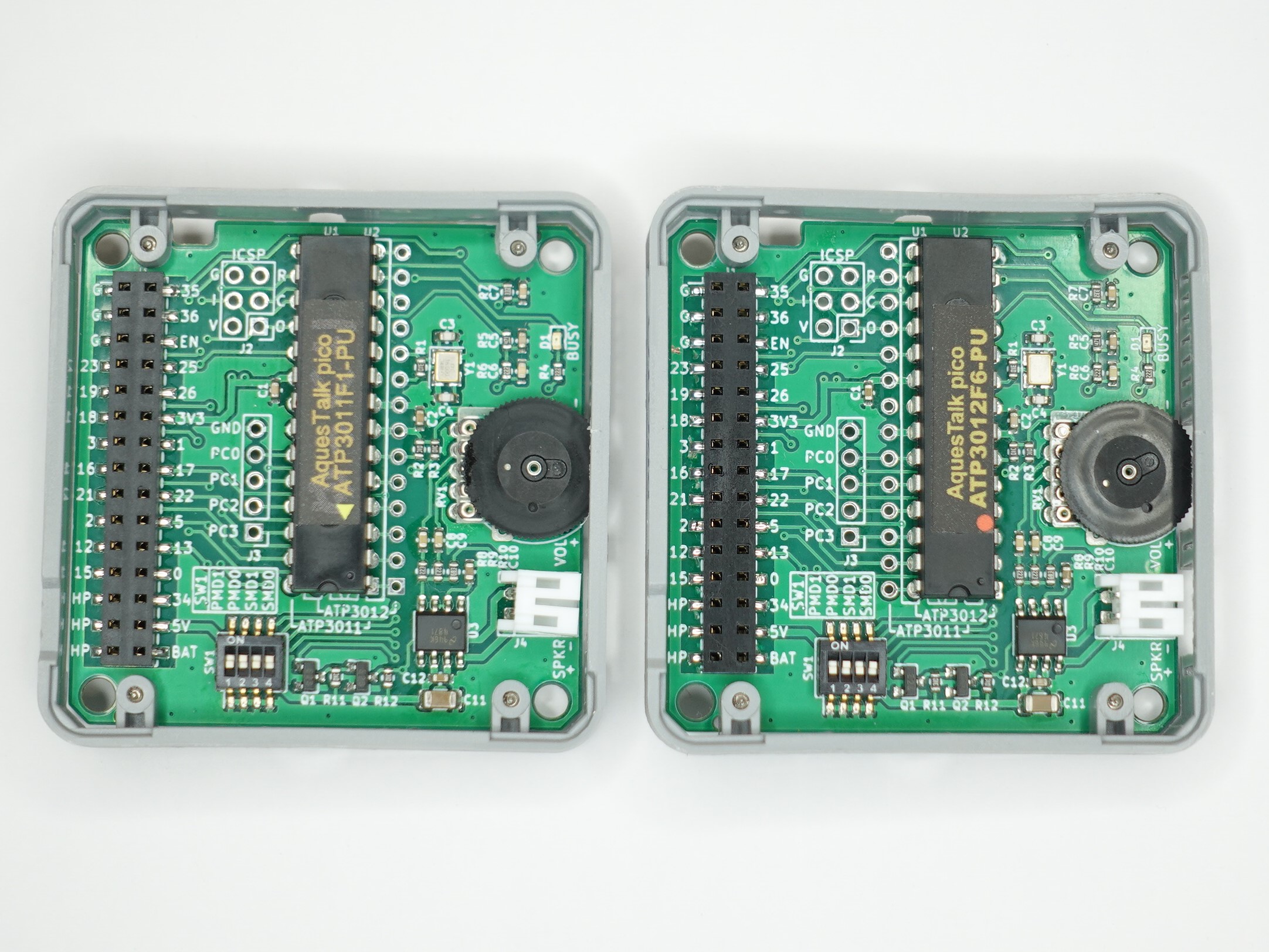

左側: ATP3011を搭載、音声アナログ信号をGPIO35に入力するためJP5をショート 右側: ATP3012を搭載、音声アナログ信号をGPIO35に入力するためJP6をショート 写真右: M5Stack 取り付け例、J4に外部スピーカを接続
DIP: Dual In-line Package I2C: Inte-Integrated Circuit UART: Universal Asynchronous Receiver Transmitter SPI: Serial Peripheral Interface
※ AquesTalk pico LSIは付属しません。 ※ プロトモジュールのモールドは付属しません。 ※ スピーカーは付属しません。
Main components on the PCB-MBUS-AquesTalk pico-LSI
PCB-MBUS-AquesTalk pico-LSI bill of materials (BOM)
38 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATP3011 | DIP-28_W7.62mm | U1 |
| 1 | ATP3012 | DIP-28_W7.62mm | U2 |
| 1 | LM4871 | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 2 | DTC143Z | SOT-23 | Q1, Q2 |
| 1 | 16MHZ 16MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | M-BUS | BF@M5Stack_MBUS | J1 |
| 1 | ICSP | PinHeader_2x03_P2.54mm_Vertical | J2 |
| 1 | PRESET | PinHeader_1x05_P2.54mm_Vertical | J3 |
| 1 | SPKR | JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal | J4 |
| 1 | SPKR | PinSocket_1x02_P2.54mm_Vertical | J5 |
| 1 | 10KA 10kA | BF@RK10J | RV1 |
| 1 | C319050 MODE | SW_DIP_SPSTx04_Slide_KingTek_DSHP04TS_W7.62mm_P1.27mm | SW1 |
| 1 | C72038 BUSY | BF@LED_0603_1608Metric | D1 |
| 4 | 100N 100n | BF@C_0603_1608Metric | C1, C2, C5, C12 |
| 2 | 10P 10p | BF@C_0603_1608Metric | C3, C4 |
| 1 | 22N 22n | BF@C_0603_1608Metric | C6 |
| 1 | 10N 10n | BF@C_0603_1608Metric | C7 |
| 2 | 33N 33n | BF@C_0603_1608Metric | C8, C9 |
| 1 | 1u | BF@C_0603_1608Metric | C10 |
| 1 | 22U 22u | C_1206_3216Metric | C11 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1M | BF@R_0603_1608Metric | R1 |
| 4 | 10K 10k | BF@R_0603_1608Metric | R2, R3, R11, R12 |
| 2 | 2.2K 2.2k | BF@R_0603_1608Metric | R4, R6 |
| 1 | 470 | BF@R_0603_1608Metric | R5 |
| 1 | 3.3K 3.3k | BF@R_0603_1608Metric | R7 |
| 2 | 22K 22k | BF@R_0603_1608Metric | R8, R9 |
| 1 | 68K 68k | BF@R_0603_1608Metric | R10 |
