PCB-RGB-LED-276-M5Atom
About the PCB-RGB-LED-276-M5Atom
PCB-RGB-LED-276-M5Atom is an open source PCB design by botanicfields, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 100 × 100 mm, with 558 components from 7 distinct parts.
Other key parts include the M5Atom. By type, the board carries 277 diodes, 277 capacitors, 2 resistors, 1 IC and 1 connector.
It belongs with the displays & leds designs in this gallery.
From the project

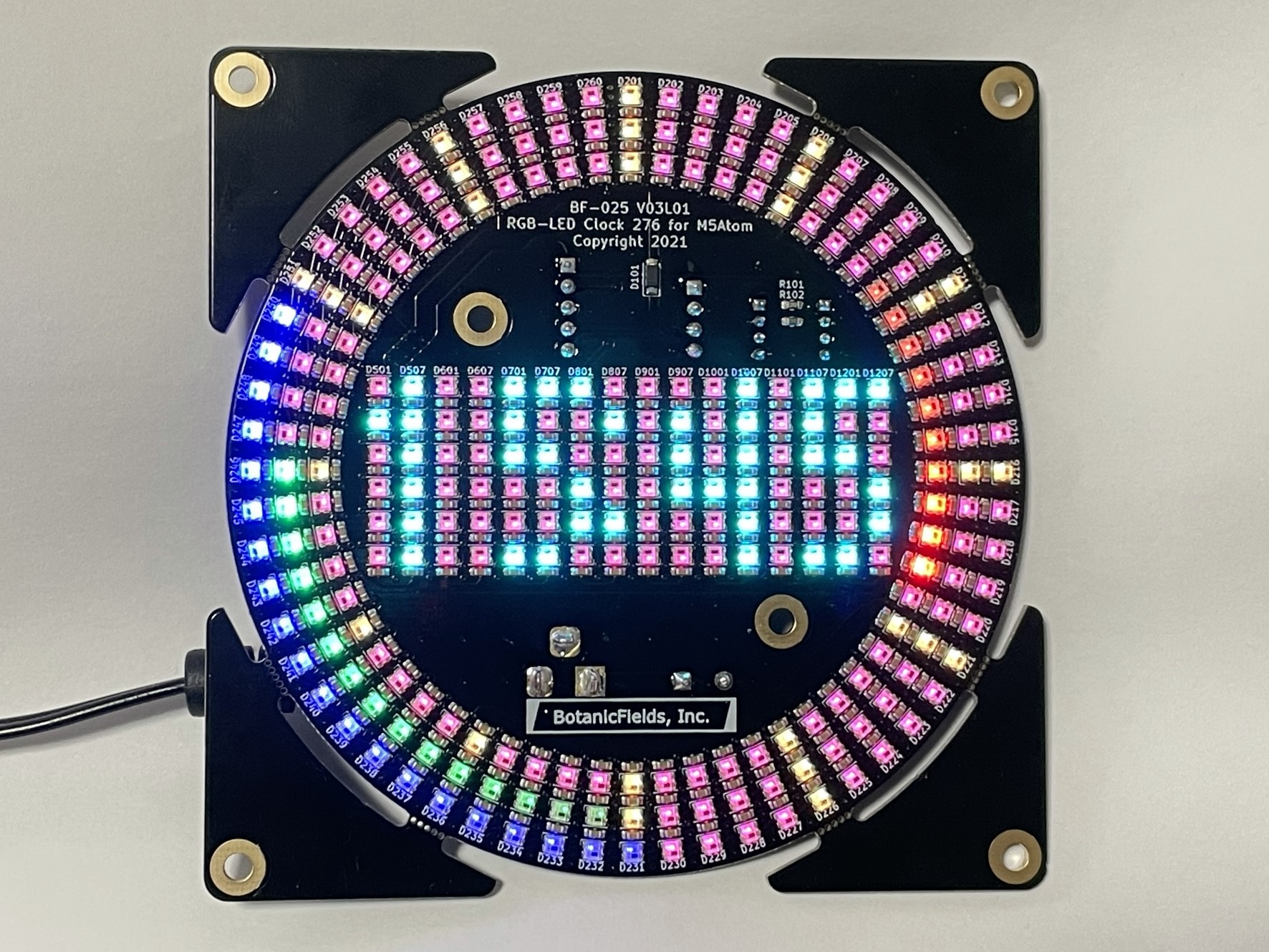

Circle clock using 276pcs of WS2812C-2020 and an M5Atom
https://github.com/botanicfields/PCB-RGB-LED-276-M5Atom/blob/main/bf-025_doc.pdf
GROVE コネクタ経由でリアルタイムクロック (RTC) 基板を増設できます。スペーサを用いて 2 階建てにできます。
- 時・分・秒・曜日・年・月・日の表示（スクロール） - 時・分・秒のアナログ風表示（彗星の尾） - 文字盤背景色の変化 - デモ: 時刻表示中のデモ (DemoClock) - デモ: カウントダウンタイマー (DemoTimeShock) - デモ: ランプテスト表示 (DemoCyron) - デモ: 色相環表示 (DemoHueRing) - デモ: パーリンノイズ (DemoNoise)
- 文字色の切替（シアン・赤・緑・青） - フォント表示（記号・数字、英大文字、英小文字） - テキスト表示（英大文字、英小文字混在） - エイリアン
Main components on the PCB-RGB-LED-276-M5Atom
PCB-RGB-LED-276-M5Atom bill of materials (BOM)
558 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | M5Atom | BF@M5Atom | U101 |
| 1 | Barrel_Jack_Switch | BF@BarrelJack_Horizontal | J101 |
| 1 | 304020034 B5819W | D_SOD-123 | D101 |
| 276 | WS2812C-2020 | BF@WS2812C-2020 | D201, D202, D203, D204, D205, D206, D207, D208 +268 |
| 1 | 1000u | CP_Radial_D10.0mm_P5.00mm | C101 |
| 276 | 302010138 100n | C_0603_1608Metric | C201, C202, C203, C204, C205, C206, C207, C208 +268 |
| 2 | 301010299 10k | R_0603_1608Metric | R101, R102 |
PCB-RGB-LED-276-M5Atom design files
The KiCad project lives in the botanicfields/PCB-RGB-LED-276-M5Atom repository on GitHub; these links point at the commit this page was built from.
PCB-RGB-LED-276-M5Atom: common questions
How big is the PCB-RGB-LED-276-M5Atom?
The PCB-RGB-LED-276-M5Atom measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB-RGB-LED-276-M5Atom?
558 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PCB-RGB-LED-276-M5Atom design files?
From the botanicfields/PCB-RGB-LED-276-M5Atom repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the PCB-RGB-LED-276-M5Atom design in my own project?
Yes, under the terms of its CC0-1.0 license, which botanicfields chose for the repository.
