Video Touch Pad

BrettHallen·Atari·Video_Touch_Pad/Kicad/Video_Touch_Pad.kicad_pcb

Video Touch Pad PCB layout, top view — open source board by BrettHallen

About the Video Touch Pad PCB

Video Touch Pad is an open source PCB design by BrettHallen, published on GitHub. It is a 2-layer board measuring 69 × 100 mm, with 15 components from 3 distinct parts.

By type, the board carries 12 switches, 2 resistors and 1 connector.

From the project

Projects for the Atari 2600 & 400/800

{Fri 15-Sept-2023} Sent board prototype for fabrication

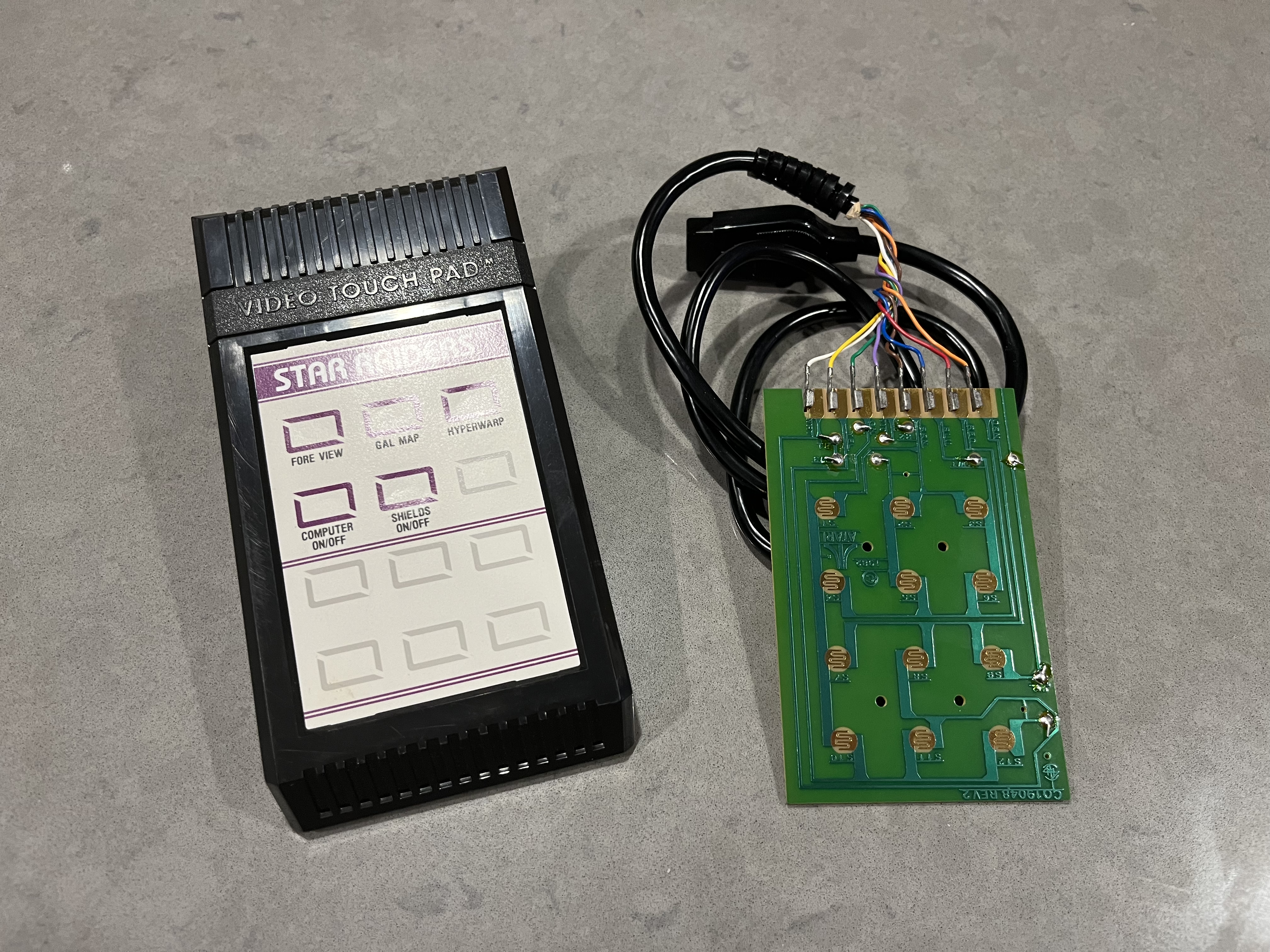

Video Touch Pad, from the project README
From the project README

Video Touch Pad bill of materials (BOM)

15 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DE9
J1
12
MX1A-11NW
S1, S2, S3, S4, S5, S6, S7, S8 +4
2
4.7KΩ
R1, R2

Video Touch Pad design files

The KiCad project lives in the BrettHallen/Atari repository on GitHub; these links point at the commit this page was built from.

Video Touch Pad: common questions

How big is the Video Touch Pad PCB?

The Video Touch Pad measures 69 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Video Touch Pad?

15 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Video Touch Pad design files?

From the BrettHallen/Atari repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Video Touch Pad design in my own project?

The repository has no license, so all rights stay with BrettHallen. Use it as a reference, and ask the author before reusing the design.
