Broadpad PCB layout, top view — open source board by brianl84

About the Broadpad PCB

Broadpad is an open source PCB design by brianl84, published on GitHub. It is a 2-layer board measuring 95.9 × 60 mm, with 11 components from 2 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 10 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A compact 10-key mechanical macropad designed for daily computer use and live directing/broadcasting.

A compact 10-key mechanical macropad designed for daily computer use and live directing/broadcasting.

The hackpad is powered by a Seeed Studio XIAO RP2040 and runs QMK Firmware. Each key is assigned to a dedicated function key from F13 to F22, allowing the macropad to be used with software that supports custom keyboard shortcuts and macros.

10 programmable mechanical keys Seeed Studio XIAO RP2040 QMK Firmware F13–F22 key mapping Direct GPIO connection for each key No keyboard matrix No switching diodes Compact and portable design Designed for daily computer use Designed for live directing…

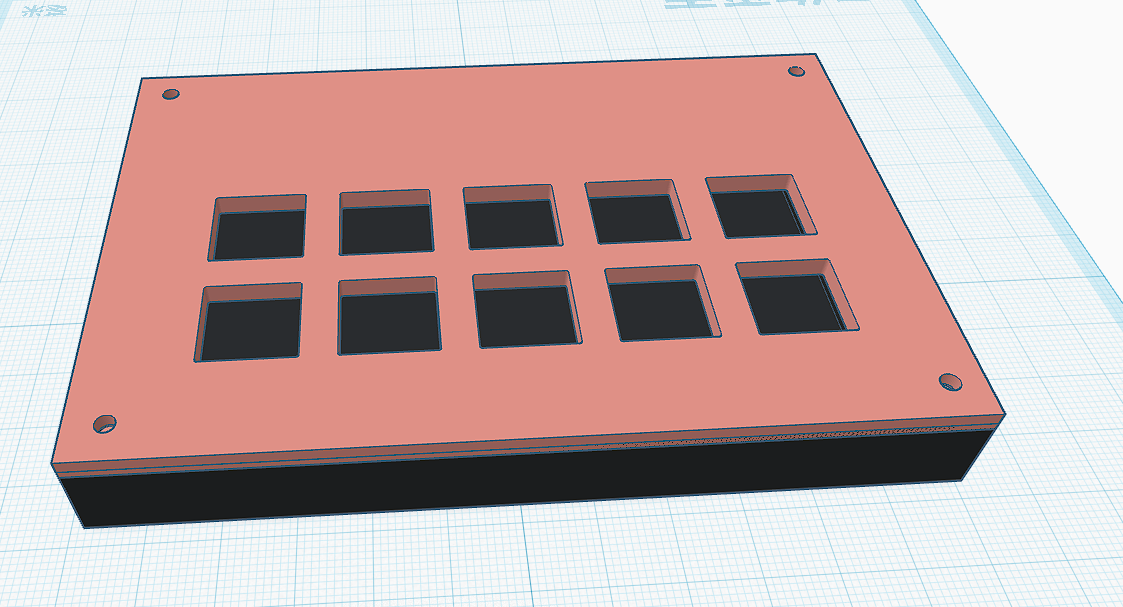

Broadpad, from the project README
From the project README

Main components on the Broadpad

MOUDLE-SEEEDUINO-XIAO

Broadpad bill of materials (BOM)

11 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
10
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +2

Broadpad design files

The KiCad project lives in the brianl84/broadpad repository on GitHub; these links point at the commit this page was built from.

Broadpad: common questions

How big is the Broadpad PCB?

The Broadpad measures 95.9 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Broadpad?

11 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Broadpad design files?

From the brianl84/broadpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Broadpad design in my own project?

The repository has no license, so all rights stay with brianl84. Use it as a reference, and ask the author before reusing the design.
