UT22
About the UT22 PCB
UT22 is an open source PCB design by bubbleology, published on GitHub. It is a 2-layer board measuring 214.6 × 84.4 mm, with 50 components from 7 distinct parts.
Other key parts include the nice_nano. By type, the board carries 22 switches, 22 diodes and 1 IC.
It belongs with the keyboards and power & battery designs in this gallery.
From the project

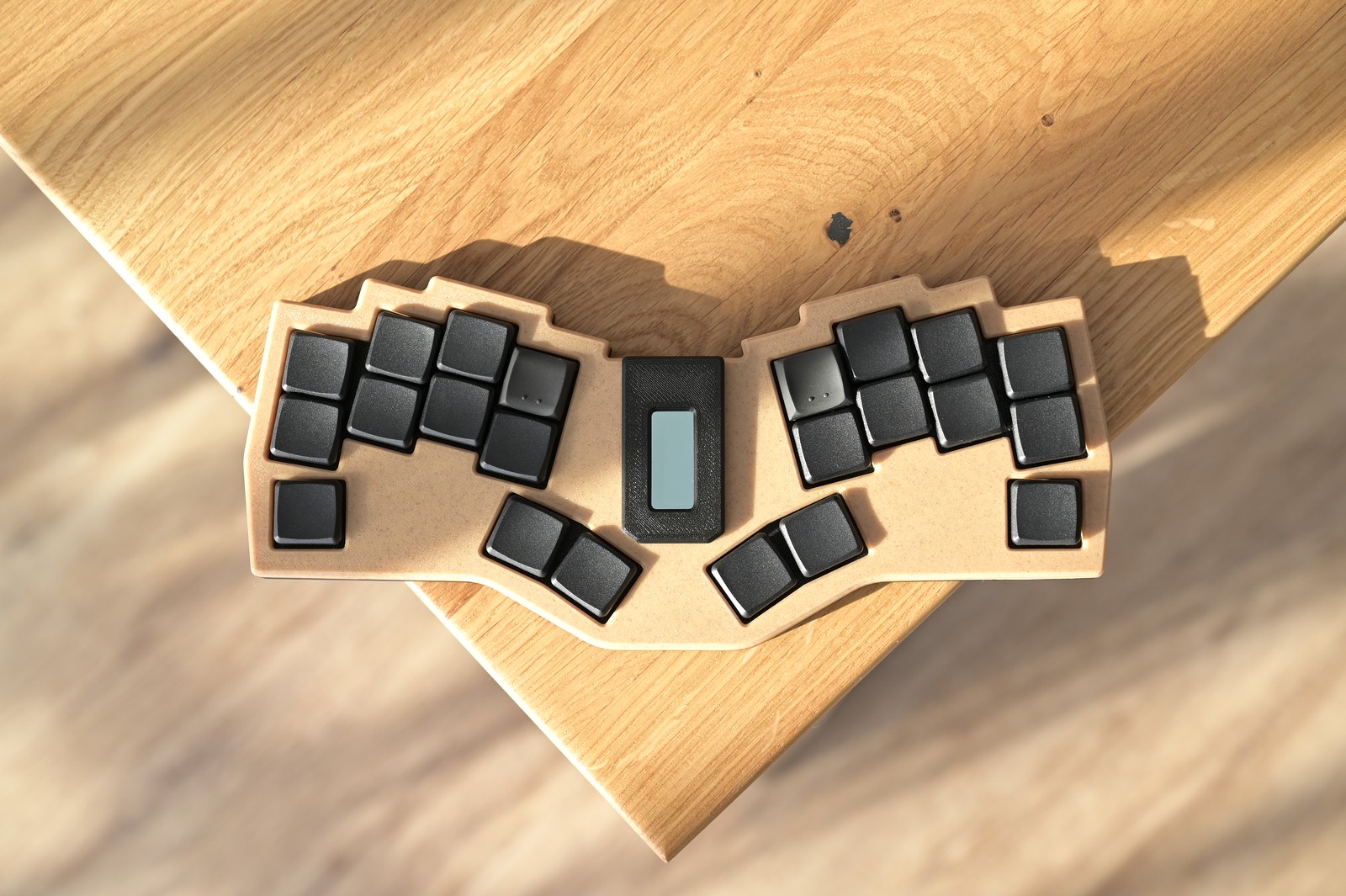

A 22-key column-staggered unibody split keyboard
UT22 is a 22 key column-staggered choc unibody keyboard that is intended to be used with the Artsey or Taipo layout. It's essentially a left and right handed artsey/taipo board in a single body with extra thumbs and pinky keys. It uses a Nice!Nano and the PCB supports a Nice!View display.
If you like to get a PCB to build your own UT22 you'll find the source files and a Gerber file here.
Main components on the UT22
UT22 bill of materials (BOM)
50 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | nice_nano | nice_nano_taipo | U1 |
| 2 | MountingHole_Pad | 1pin_Battery | Bat+1, BatGND1 |
| 1 | nice!view | nice_view | Display1 |
| 1 | SW_Push | SW_RESET | RSW1 |
| 22 | Kailh-Choc | SW_Hotswap_Kailh_Choc_V1_taipo | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +14 |
| 1 | SW_SPDT | smt-slider-switch | SW_POWER1 |
| 22 | diode | SMD_Diode_B2 | D1, D2, D3, D4, D5, D6, D7, D8 +14 |
UT22 design files
The KiCad project lives in the bubbleology/UT22 repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/pcbs/tutorial.kicad_pcb
- SchematicPCB/pcbs/tutorial.kicad_sch
UT22: common questions
How big is the UT22 PCB?
The UT22 measures 214.6 × 84.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the UT22?
50 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the UT22 design files?
From the bubbleology/UT22 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the UT22 design in my own project?
The repository has no license, so all rights stay with bubbleology. Use it as a reference, and ask the author before reusing the design.
