BlinkySWR

bubnikv·BlinkySWR·kicad/02-S-4r/BlinkySWR-0.2-S.kicad_pcb

BlinkySWR PCB layout, top view — open source AVR/Arduino board by bubnikv

About the BlinkySWR PCB

BlinkySWR is an open source AVR/Arduino PCB design by bubnikv, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 34.5 × 26.5 mm, with 45 components from 14 distinct parts.

Its main chip is the ATTINY13A-SSH, from the AVR/Arduino family. Other key parts include the HT7125-1. By type, the board carries 21 resistors, 10 diodes, 10 capacitors, 2 ICs and 2 connectors.

From the project

Tiny, cheap, simple, accurate, self powered resistive SWR and power meter for SOTA and back packers

Schematics rev0.2 Interactive bom * STEP 3D model

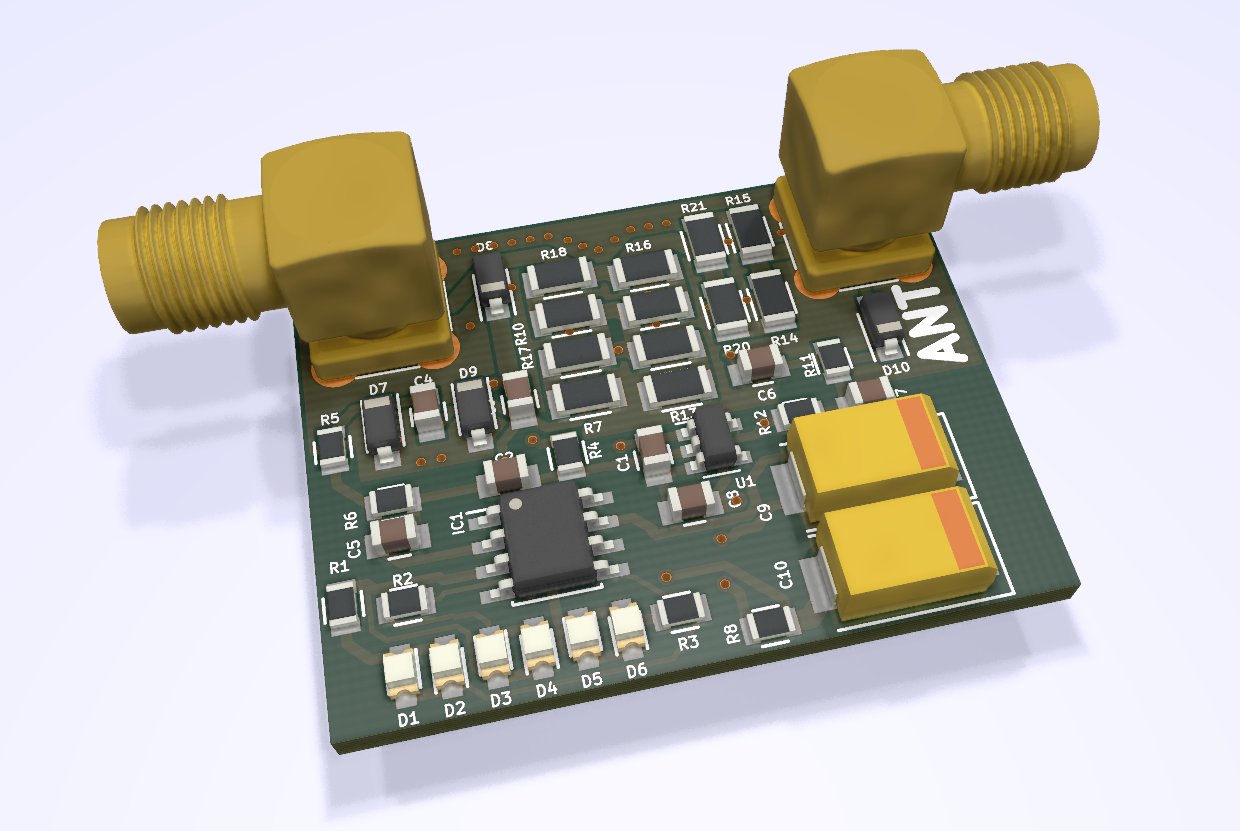

BlinkySWR, from the project README
From the project README

Main components on the BlinkySWR

ATTINY13A-SSHHT7125-1

BlinkySWR bill of materials (BOM)

45 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY13A-SSH
IC1
1
HT7125-1
U1
1
SMA-15
J1
1
SMA-15*
J2
6
OF-SMD2012HR
D1, D2, D3, D4, D5, D6
4
1N5711
D7, D8, D9, D10
3
100N
100n
C1, C2, C8
5
1n
C3, C4, C5, C6, C7
2
480U
480u
C9, C10
3
680R
R1, R2, R3
1
1k
R4
2
150K
150k
R5, R11
3
10K
10k
R6, R8, R12
12
51R
R7, R9, R10, R13, R14, R15, R16, R17 +4

BlinkySWR design files

The KiCad project lives in the bubnikv/BlinkySWR repository on GitHub; these links point at the commit this page was built from.

BlinkySWR: common questions

What microcontroller does the BlinkySWR use?

The BlinkySWR is built around the ATTINY13A-SSH, from the AVR/Arduino family.

How big is the BlinkySWR PCB?

The BlinkySWR measures 34.5 × 26.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BlinkySWR?

45 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BlinkySWR design files?

From the bubnikv/BlinkySWR repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the BlinkySWR design in my own project?

Yes, under the terms of its GPL-2.0 license, which bubnikv chose for the repository.

Can I test firmware for the BlinkySWR without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
