About the ByranTK-Alpha PCB

ByranTK-Alpha is an open source PCB design by byrantech, published on GitHub under the MIT license. It is a 2-layer board measuring 313.1 × 121.4 mm, with 164 components from 12 distinct parts.

Other key parts include the nice_nano. By type, the board carries 82 switches, 80 diodes, 1 IC and 1 connector.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

80 key wireless custom keyboard with ZMK.

The ByranTK-Alpha is an 80 key custom mechanical keyboard, designed to be made with any material. "All the keys you need and no more."

1. Order all the parts - I ordered everything off of JLCPCB, with SMT assembly for the diodes because I'm lazy. The pick and place/bom files are in the bom folder, ready for upload to JLCPCB. It is highly suggested you use SMT assembly because it is extremely cheap and saves a lot of time. - Apparantly, you can also get smt hotswap sockets assembled too, though I did not do that. 2. Solder it all together - Solder on the hotswap sockets and the nice!nano.…

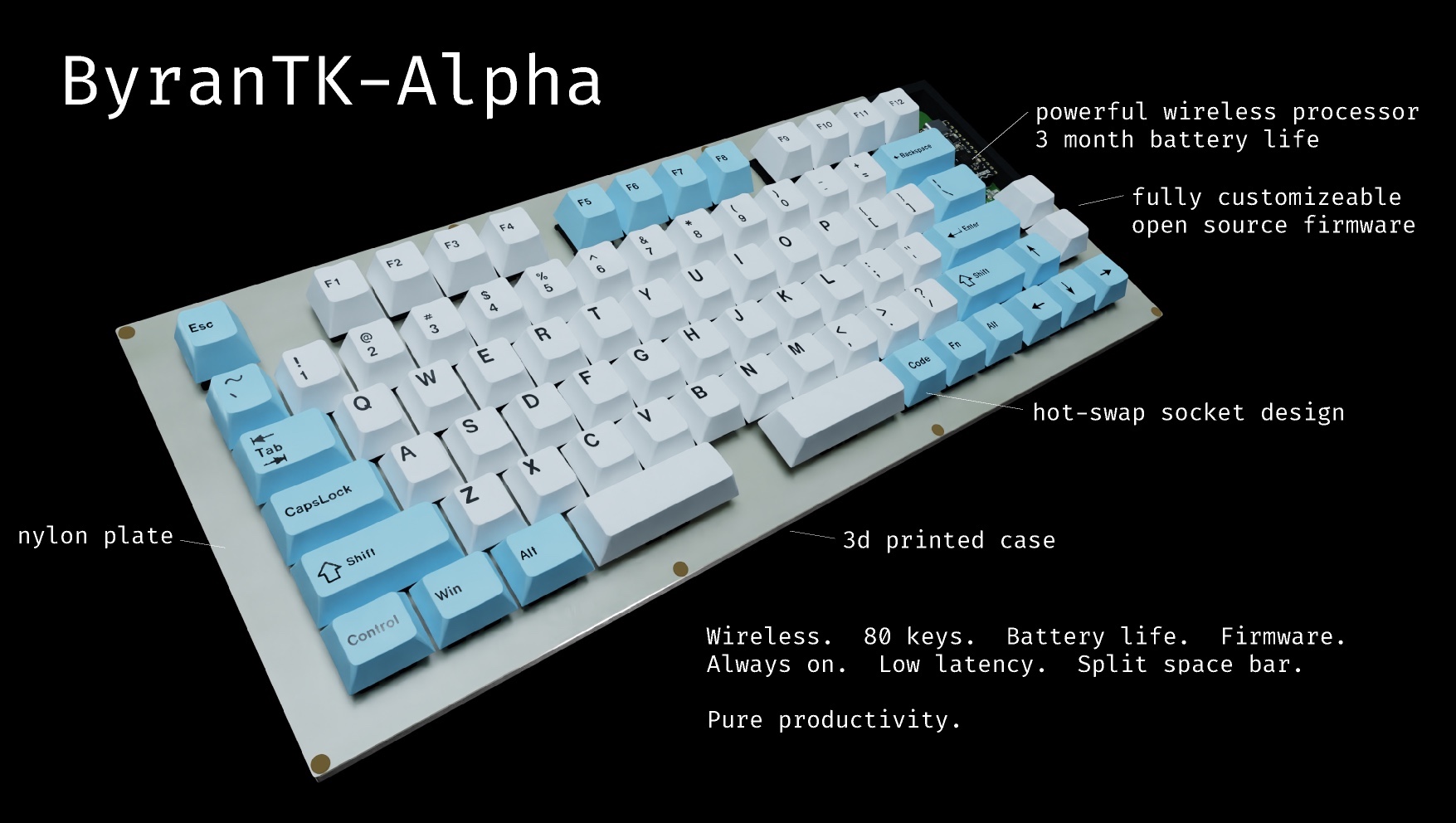

ByranTK-Alpha, from the project README
From the project README

Main components on the ByranTK-Alpha

nice_nano

ByranTK-Alpha bill of materials (BOM)

164 components, 12 distinct parts.

QtyPartRefs
1
nice_nano
U1
1
JST-PH_SM4
J1
1
EG1218
E-Switch
S1
1
B3U-1000P
6mm Slim Tactile Switch
Omron Electronics Inc-EMC Div
S2
68
SW_Push
SW1, SW2, SW7, SW8, SW9, SW10, SW12, SW13 +60
2
SW_Push
SW3, SW77
2
SW_Push
SW4, SW67
2
SW_Push
SW5, SW72
3
SW_Push
SW6, SW11, SW17
2
SW_Push
SW23, SW44
1
SW_Push
SW76
80
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +72

ByranTK-Alpha design files

The KiCad project lives in the byrantech/ByranTK-Alpha repository on GitHub; these links point at the commit this page was built from.

ByranTK-Alpha: common questions

How big is the ByranTK-Alpha PCB?

The ByranTK-Alpha measures 313.1 × 121.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ByranTK-Alpha?

164 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the ByranTK-Alpha design files?

From the byrantech/ByranTK-Alpha repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ByranTK-Alpha design in my own project?

Yes, under the terms of its MIT license, which byrantech chose for the repository.
