RPi Hat Template

CameronBrooks11·RPi_Hat_Template

RPi Hat Template layout, top view — open source board by CameronBrooks11

About the RPi Hat Template

RPi Hat Template is an open source PCB design by CameronBrooks11, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 56.5 mm, with 2 components from 2 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

KiCad template for a Raspberry Pi B+ Hat PCB.

Raspberry Pi B+ Hat ============================

Expansion Board ----------------------------

This is a project template for a Raspberry Pi B+ Hat.

This base project includes a PCB edge defined according to this specification. Both a thru-hole and a surface mount connector are provided, along with a different PCB edge for each. Just keep the PCB edge and connector type that you're using for your design and delete the others.

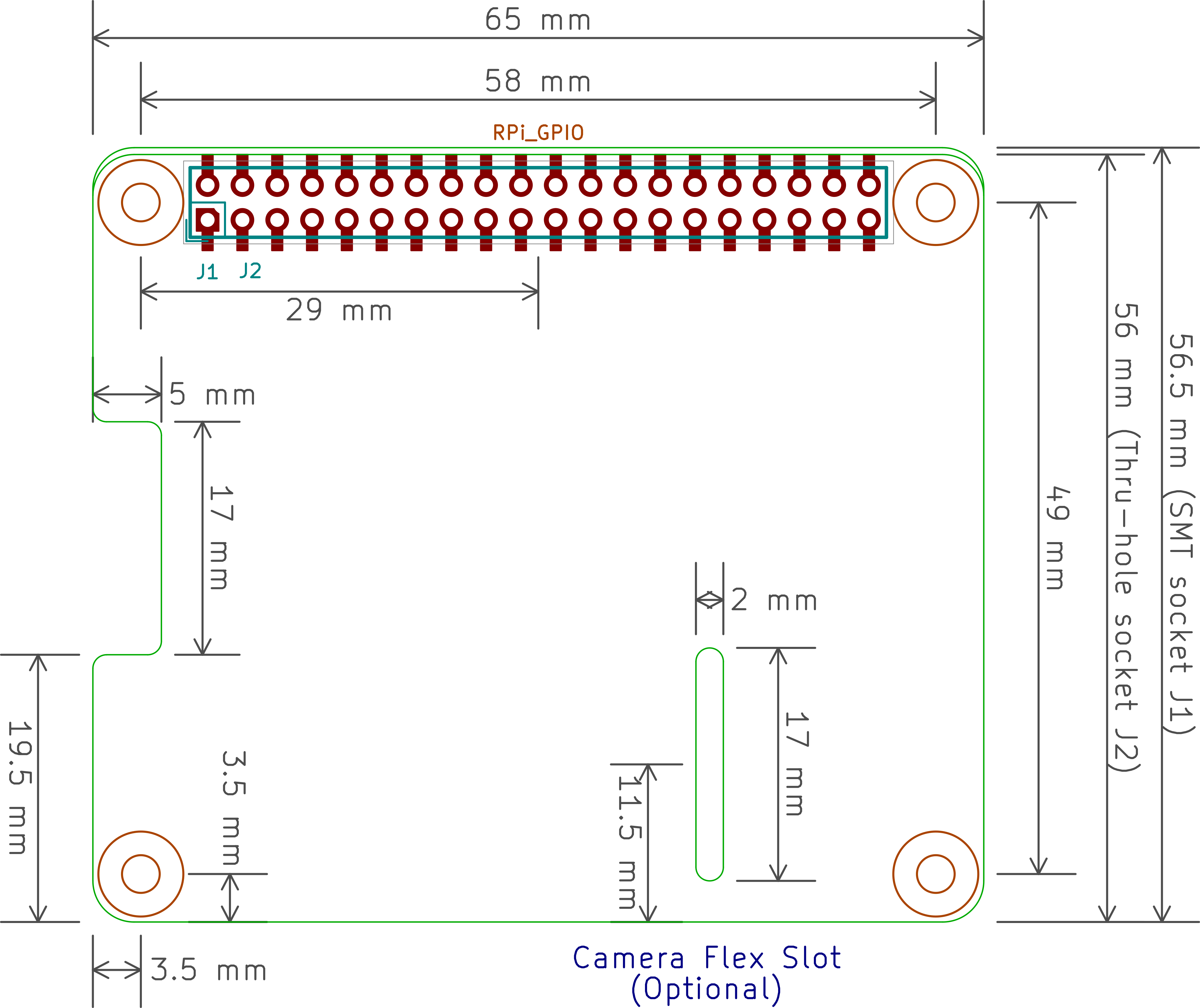

RPi Hat Template, from the project README
From the project README

RPi Hat Template bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
RPi_GPIO
J1
1
RPi_GPIO
J2

RPi Hat Template design files

The KiCad project lives in the CameronBrooks11/RPi_Hat_Template repository on GitHub; these links point at the commit this page was built from.

RPi Hat Template: common questions

How big is the RPi Hat Template?

The RPi Hat Template measures 65 × 56.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RPi Hat Template?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the RPi Hat Template design files?

From the CameronBrooks11/RPi_Hat_Template repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RPi Hat Template design in my own project?

Yes, under the terms of its MIT license, which CameronBrooks11 chose for the repository.
