GnW-Zelda-MicroSD KiCad.

CapnRon·gnw-zelda-microsd-kicad·hardware/GnW-Zelda-MicroSD.kicad_pcb

GnW-Zelda-MicroSD KiCad. PCB layout, top view — open source board by CapnRon

About the GnW-Zelda-MicroSD KiCad. PCB

GnW-Zelda-MicroSD KiCad. is an open source PCB design by CapnRon, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 28.4 × 29.7 mm, with 7 components from 6 distinct parts.

By type, the board carries 3 connectors, 2 capacitors and 1 resistor.

It belongs with the wearables designs in this gallery.

From the project

Castellated-edge microSD interposer for the Game & Watch: The Legend of Zelda console mod scene — original KiCad artwork, CERN-OHL-S v2

A castellated-edge microSD interposer for the Game & Watch: The Legend of Zelda console mod scene -- built as original KiCad artwork, informed by existing community Gerber-only releases rather than copied from any of them.

The board mates directly to the console's STM32 mainboard via a 7-position castellated edge (real 0.3x1.2mm SMD pad geometry, machined flush by the board-edge mill -- this is the critical mechanical/electrical mating surface, not an approximation) and carries an onboard RT9193-28GB LDO regulating the console's raw ~4.2V battery rail down to a safe 2.8V for the microSD card.

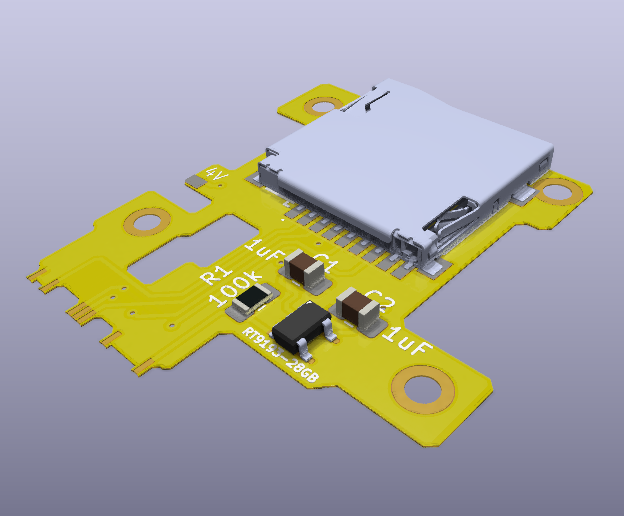

GnW-Zelda-MicroSD KiCad., from the project README
From the project README

GnW-Zelda-MicroSD KiCad. bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
Castellated_Edge_7P
J1
1
MicroSD_Socket_TFP09
J2
1
Battery_Tap_2P
J3
1
RT9193-28GB
RT9193-28GB
2
1uF
C1, C2
1
100k
R1

GnW-Zelda-MicroSD KiCad. design files

The KiCad project lives in the CapnRon/gnw-zelda-microsd-kicad repository on GitHub; these links point at the commit this page was built from.

GnW-Zelda-MicroSD KiCad.: common questions

How big is the GnW-Zelda-MicroSD KiCad. PCB?

The GnW-Zelda-MicroSD KiCad. measures 28.4 × 29.7 mm, has 2 copper layers and is 0.1408 mm thick.

How many components are on the GnW-Zelda-MicroSD KiCad.?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the GnW-Zelda-MicroSD KiCad. design files?

From the CapnRon/gnw-zelda-microsd-kicad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the GnW-Zelda-MicroSD KiCad. design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which CapnRon chose for the repository.
