About the PMOD1 PCB

PMOD1 is an open source PCB design by carlosedp, published on GitHub under the BSD-3-Clause license. It is a 2-layer board, with 2 components from 2 distinct parts.

Other key parts include the 74HC595.

From the project

Documentation and code samples for the PMOD1 - Rotary+RingLED

This repository hosts all data related to PMOD1, a PMOD module with a LED ring and a rotary encoder with push button. Always use the latest version of the PCB.

Id|Designator|Package|Quantity|Designation| ----|------------|---------|----------|-------------| 1|U1|SOIC-163.9x9.9mmP1.27mm|1|74HC595||| 2|PMOD1|pmodpinarray6x2|1|PMOD-Device-x2-Type-1A-GPIO||| 3|SW1|RotaryEncoderAlpsEC11E-SwitchVerticalH20mm|1|RotaryEncoderSwitch||| 4|R1,R2,R12,R13,R14,R16,R17,R18|R06031608MetricPad0.98x0.95mmHandSolder|8|4.7k||| 5|C1,C2|C06031608MetricPad1.08x0.95mmHandSolder|2|100n|||…

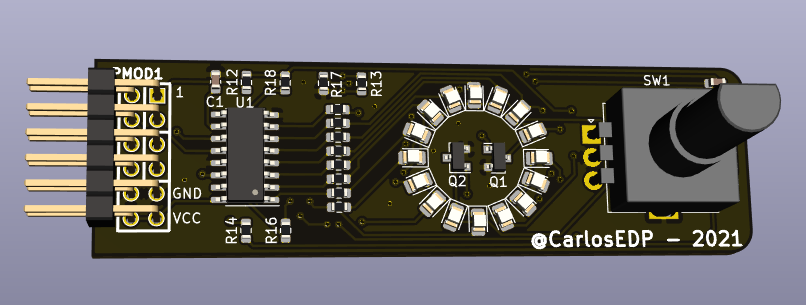

PMOD1, from the project README
From the project README

Main components on the PMOD1

PMOD1 bill of materials (BOM)

2 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74HC595
U1
1
PMOD-DEVICE-X2-TYPE-1A-GPIO
PMOD-Device-x2-Type-1A-GPIO
PMOD1

PMOD1 design files

The KiCad project lives in the carlosedp/PMOD1 repository on GitHub; these links point at the commit this page was built from.

PMOD1: common questions

How big is the PMOD1 PCB?

The PMOD1 has 2 copper layers and is 1.6 mm thick.

How many components are on the PMOD1?

2 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PMOD1 design files?

From the carlosedp/PMOD1 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the PMOD1 design in my own project?

Yes, under the terms of its BSD-3-Clause license, which carlosedp chose for the repository.
