Kebu

Cedutus·Kebu·Kebu/Kebu.kicad_pcb

Kebu PCB layout, top view — open source board by Cedutus
Simulate this board

About the Kebu PCB

Kebu is an open source PCB design by Cedutus, published on GitHub under the MIT license. It is a 2-layer board measuring 257.2 × 95.3 mm, with 126 components from 6 distinct parts.

Other key parts include the YAAJ_WeAct_BlackPill_Part_Like. By type, the board carries 61 diodes, 58 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A Ortholinear keyboard that supports multiple layouts, including 4row and 5row.

Firmware is not included in QMK repo, you will have to compile it yourself. Most of the code is copied and stripped down from Vattern's Grandiceps keyboard. Blackpill bootloader: hold down the boot button on the blackpill, then press NRST. it might take some tries.

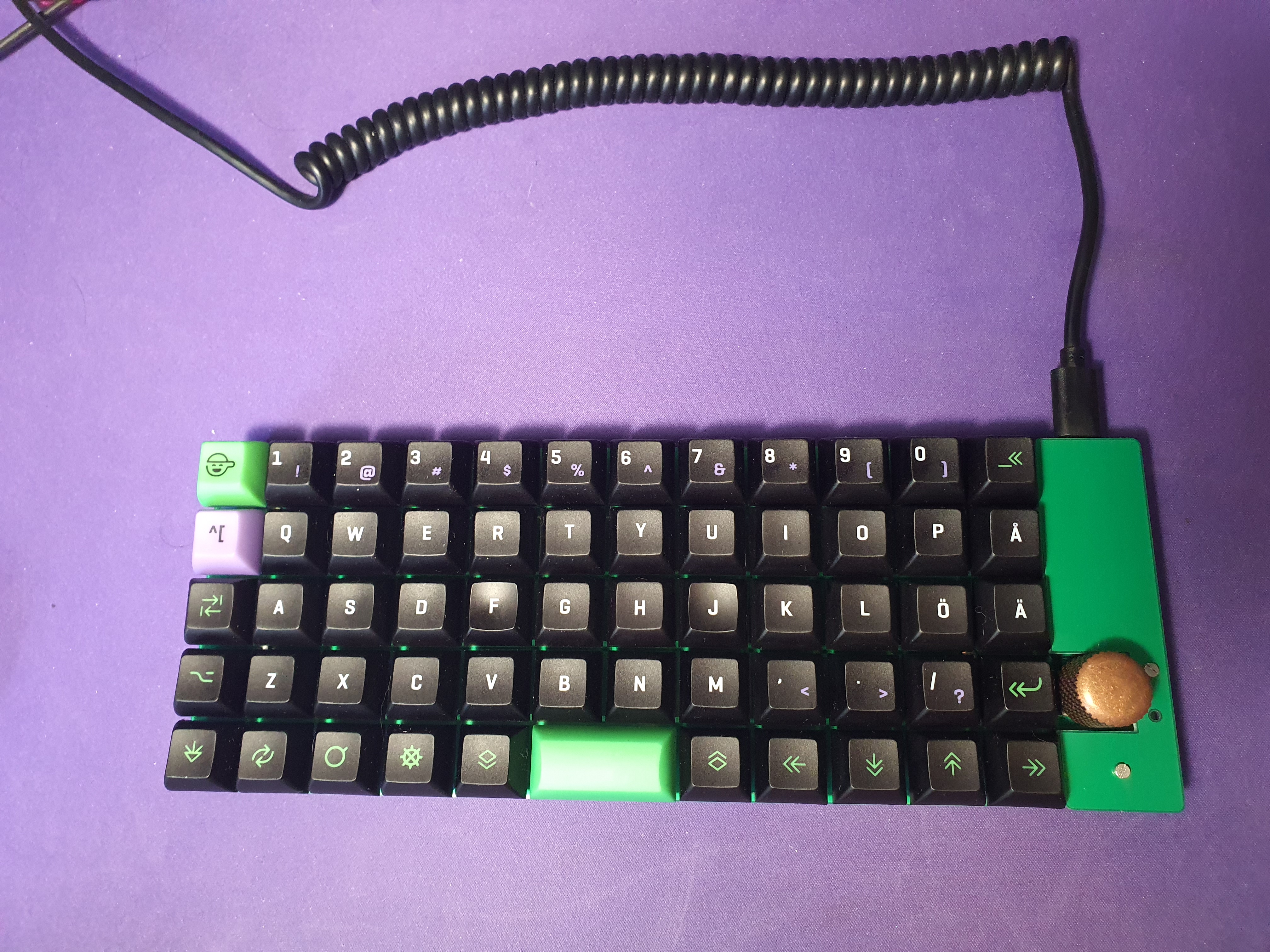

Kebu, from the project README
From the project README

Main components on the Kebu

YAAJ_WeAct_BlackPill_Part_Like

Kebu bill of materials (BOM)

126 components, 6 distinct parts.

QtyPartRefs
1
YAAJ_WeAct_BlackPill_Part_Like
U1
58
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +50
2
SW_PUSH
SWA43, SWA55
2
Rotary_Encoder_Switch
SWA61, SWB61
2
SW_PUSH
SWB43, SWB55
61
D
D1, D2, D3, D4, D5, D6, D7, D8 +53

Kebu design files

The KiCad project lives in the Cedutus/Kebu repository on GitHub; these links point at the commit this page was built from.

Kebu: common questions

How big is the Kebu PCB?

The Kebu measures 257.2 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kebu?

126 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kebu design files?

From the Cedutus/Kebu repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kebu design in my own project?

Yes, under the terms of its MIT license, which Cedutus chose for the repository.
