Mux board v3
About the Mux board v3
Mux board v3 is an open source PCB design by charkster, published on GitHub under the MIT license. It is a 2-layer board measuring 33 × 63.3 mm, with 7 components from 4 distinct parts.
Other key parts include the ADG1606BRUZ and ADAFRUIT_QT_PY. By type, the board carries 4 connectors, 2 ICs and 1 module.
From the project

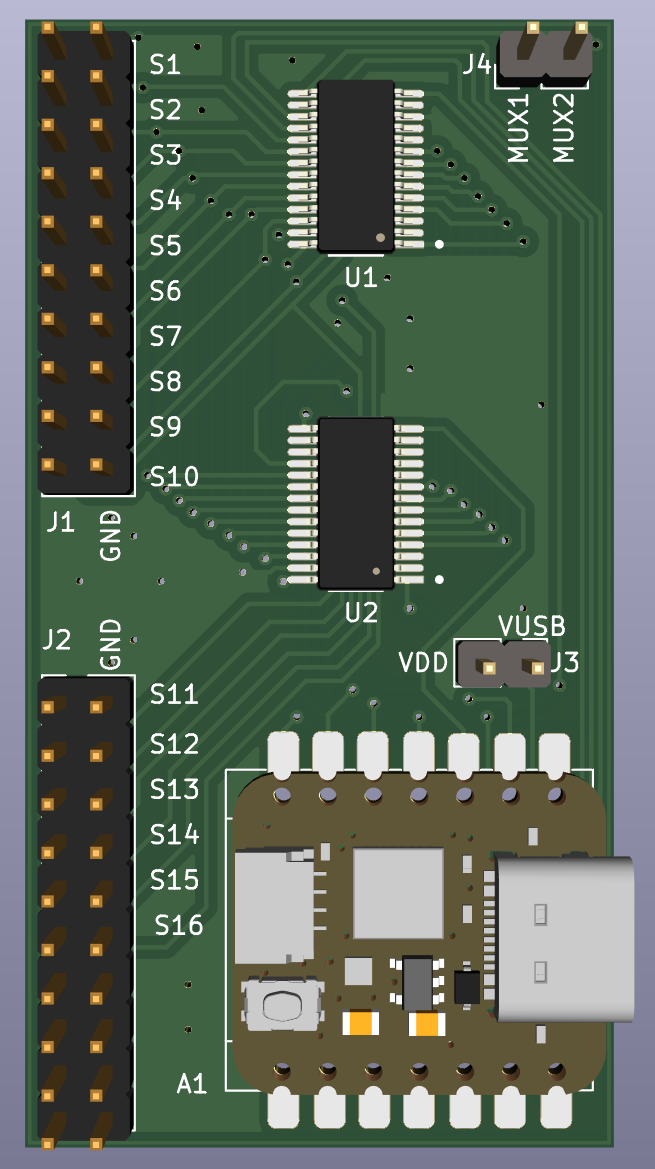

Custom PCB with SAMD21 QT PY controlling TWO ADG1606BRUZ 16 input muxes!
--> UPDATED design available: muxboardv5 <--
The SAMD21 QT PY can be programmed with the qtpysamd21-usbtmc.uf2 file (drag-n-drop) and has the same USBTMC commands that my Mux Board V1 had. Here is the list:
MUX1:EN 1 # enable MUX1, a zero will disable the mux
MUX1:SEL 1 # select S1 input, values 1 through 16 are valid
MUX1:EN? # this query returns the state of MUX1
Main components on the Mux board v3
Mux board v3 bill of materials (BOM)
7 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ADG1606BRUZ | Analog_Devices-RU-28-0-0-IPC_A | U1, U2 |
| 1 | ADAFRUIT_QT_PY | Adafruit_QT_PY | A1 |
| 2 | Conn_02x10_Odd_Even | PinHeader_2x10_P2.54mm_Vertical | J1, J2 |
| 2 | Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J3, J4 |
Mux board v3 design files
The KiCad project lives in the charkster/mux_board_v3 repository on GitHub; these links point at the commit this page was built from.
- Layoutmux_board_v3.kicad_pcb
- Schematicmux_board_v3.kicad_sch
Mux board v3: common questions
How big is the Mux board v3?
The Mux board v3 measures 33 × 63.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mux board v3?
7 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Mux board v3 design files?
From the charkster/mux_board_v3 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Mux board v3 design in my own project?
Yes, under the terms of its MIT license, which charkster chose for the repository.
