Rpi level shifter v1
About the Rpi level shifter v1 PCB
Rpi level shifter v1 is an open source PCB design by charkster, published on GitHub under the MIT license. It is a 2-layer board measuring 51.3 × 20.3 mm, with 18 components from 10 distinct parts.
Other key parts include the NVT2010PW, AP2112K-1.8 and AP2112K-1.2. By type, the board carries 6 resistors, 4 ICs, 4 connectors and 4 capacitors.
From the project
rpi_level_shifter_v1

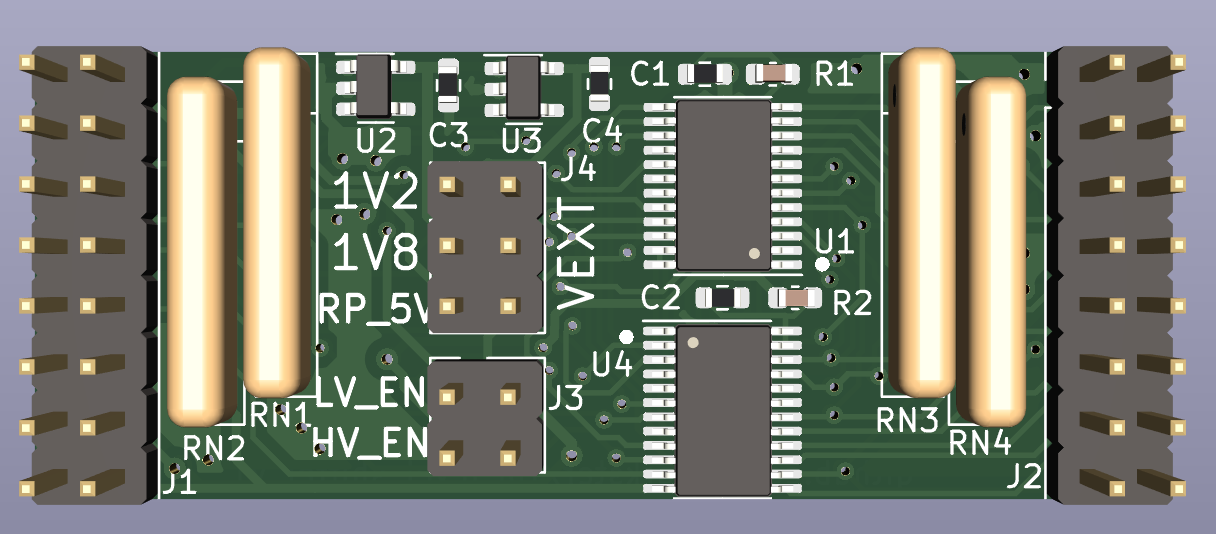

This board is designed to not fit over-top the RPi board, but rather over the side.
Each board needs to have the top-left pin of J1 connected to the 3.3V RPi header pin. One board can service the I2C and UART pins (along with a couple of GPIO) and another board can service SPI pins. BCM GPIO's 13, 16, 19, 20, 21 and 26 are not accessable with this board.
The J3 connector must only have one horizontal jumper!! Either HVEN or LVEN, or damage to the RPi pins may occur (you have been warned). Additionally, the J4 connector must only have one horizontal jumper!! The RPI5V is only available if…
Main components on the Rpi level shifter v1
Rpi level shifter v1 bill of materials (BOM)
18 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | NVT2010PW | TSSOP-24_4.4x7.8mm_P0.65mm | U1, U4 |
| 1 | AP2112K-1.8 | SOT-23-5 | U2 |
| 1 | AP2112K-1.2 | SOT-23-5 | U3 |
| 2 | Conn_02x08_Odd_Even | PinHeader_2x08_P2.54mm_Vertical | J1, J2 |
| 1 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical | J3 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J4 |
| 2 | 100pF | R_0603_1608Metric | C1, C2 |
| 2 | 10uF | R_0603_1608Metric | C3, C4 |
| 2 | 200k | C_0603_1608Metric | R1, R2 |
| 4 | R_Network05 | R_Array_SIP6 | RN1, RN2, RN3, RN4 |
Rpi level shifter v1 design files
The KiCad project lives in the charkster/rpi_level_shifter_v1 repository on GitHub; these links point at the commit this page was built from.
- Layoutrpi_8x2_v1.kicad_pcb
- Schematicrpi_8x2_v1.kicad_sch
- BOMrpi_8x2_v1_BOM.csv
Rpi level shifter v1: common questions
How big is the Rpi level shifter v1 PCB?
The Rpi level shifter v1 measures 51.3 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rpi level shifter v1?
18 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rpi level shifter v1 design files?
From the charkster/rpi_level_shifter_v1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rpi level shifter v1 design in my own project?
Yes, under the terms of its MIT license, which charkster chose for the repository.
