Atreyu
About the Atreyu PCB
Atreyu is an open source PCB design by climent, published on GitHub under the MIT license. It is a 2-layer board measuring 288.1 × 142.4 mm, with 141 components from 6 distinct parts.
Other key parts include the Elite-C. By type, the board carries 58 diodes, 2 switches and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

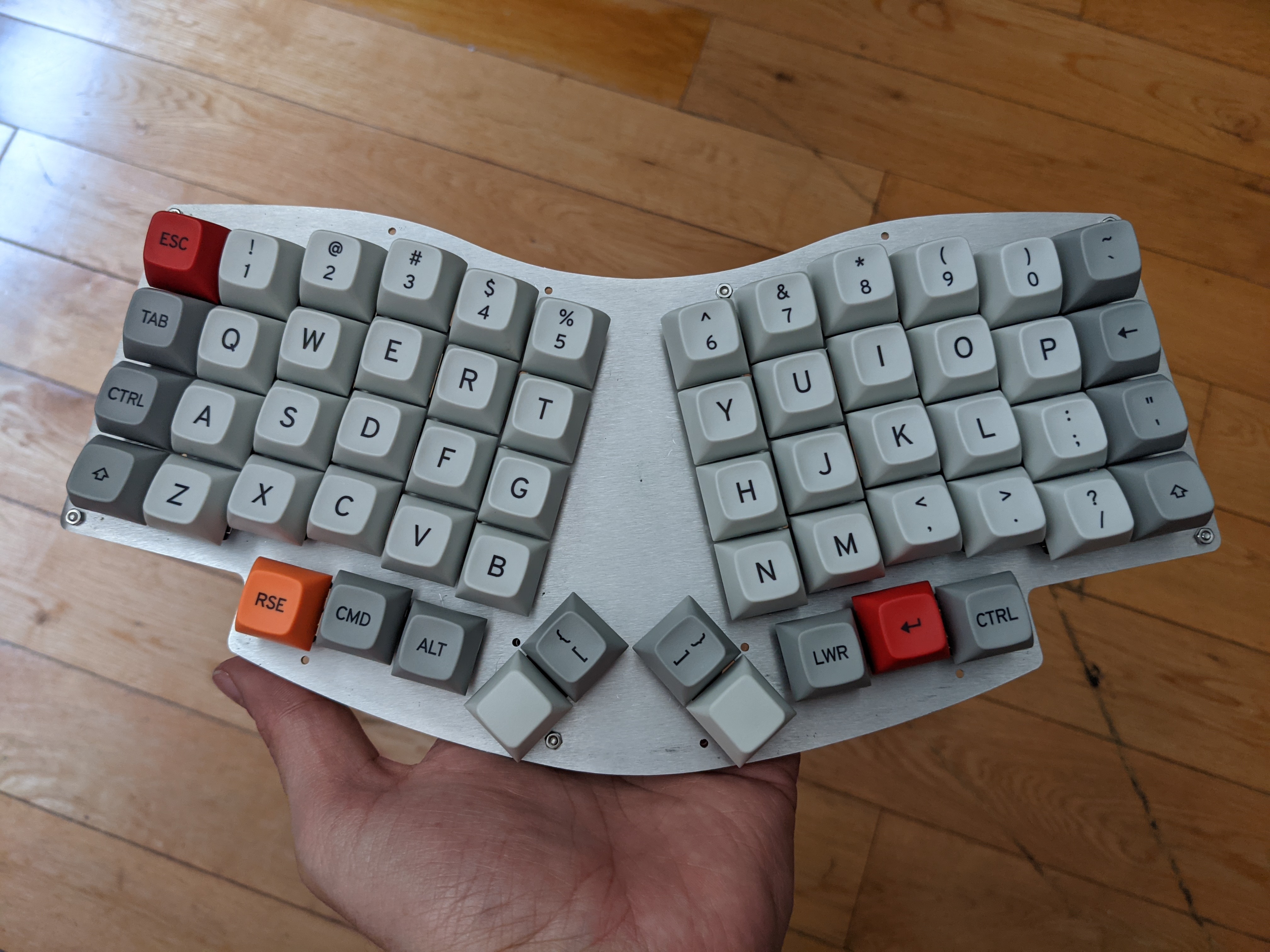

It all started with a handwired Lily58fied version of the Atreis keyboard.
It all started with a handwired Lily58fied version of the Atreis keyboard.
Based on Dekonnection's Atreis keyboard design files, modified to achieve the same layout in a single-piece form-factor.
Because the Atreis is the most convenient keyboard to take when on the go, but I thought i needed a couple of extra keys, like the Lily58.
Learning KiCad was fun, and I ended up creating a new version of the keyboard on a PCB, with the option of having they inner keys as rotary encoders, and with two additional keys at the bottom of the outer columns to be pressed with the palm. In all honesty I…
Main components on the Atreyu
Atreyu bill of materials (BOM)
141 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Elite-C | Elite-C | U1 |
| 22 | MountingHole | spacer_m2 | H1, H2, H3, H4, H5, H6, H7, H8 +14 |
| 58 | MX-NoLED | CherryMX_Hotswap | MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +50 |
| 1 | SW_Push | SW_Tactile_SPST_Angled_MJTP1117 | SW1 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_EC11 | SW2 |
| 58 | D_Small | D3_hybrid_common_hole | D1, D2, D3, D4, D5, D6, D7, D8 +50 |
Atreyu design files
The KiCad project lives in the climent/atreyu repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/v0.1/atreyu.kicad_pcb
- Schematicpcb/v0.1/atreyu.kicad_sch
Atreyu: common questions
How big is the Atreyu PCB?
The Atreyu measures 288.1 × 142.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Atreyu?
141 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Atreyu design files?
From the climent/atreyu repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Atreyu design in my own project?
Yes, under the terms of its MIT license, which climent chose for the repository.
