MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN

codeThatThinks·oven-controller-hw·kicad/display.kicad_pcb

MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN PCB layout, top view — open source board by codeThatThinks
Simulate this board

About the MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN PCB

MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN is an open source PCB design by codeThatThinks, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 58 × 108 mm, with 20 components from 11 distinct parts.

Other key parts include the AZ1117-3.3 and APX809S-29SR. By type, the board carries 9 resistors, 5 capacitors, 3 connectors and 2 ICs.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

A Raspberry Pi Zero-powered PID reflow oven controller -- PCB design files

A Raspberry Pi Zero-powered PID reflow oven controller -- PCB design files.

This project is licensed under the CERN-OHL-W v2. See LICENSE for more details.

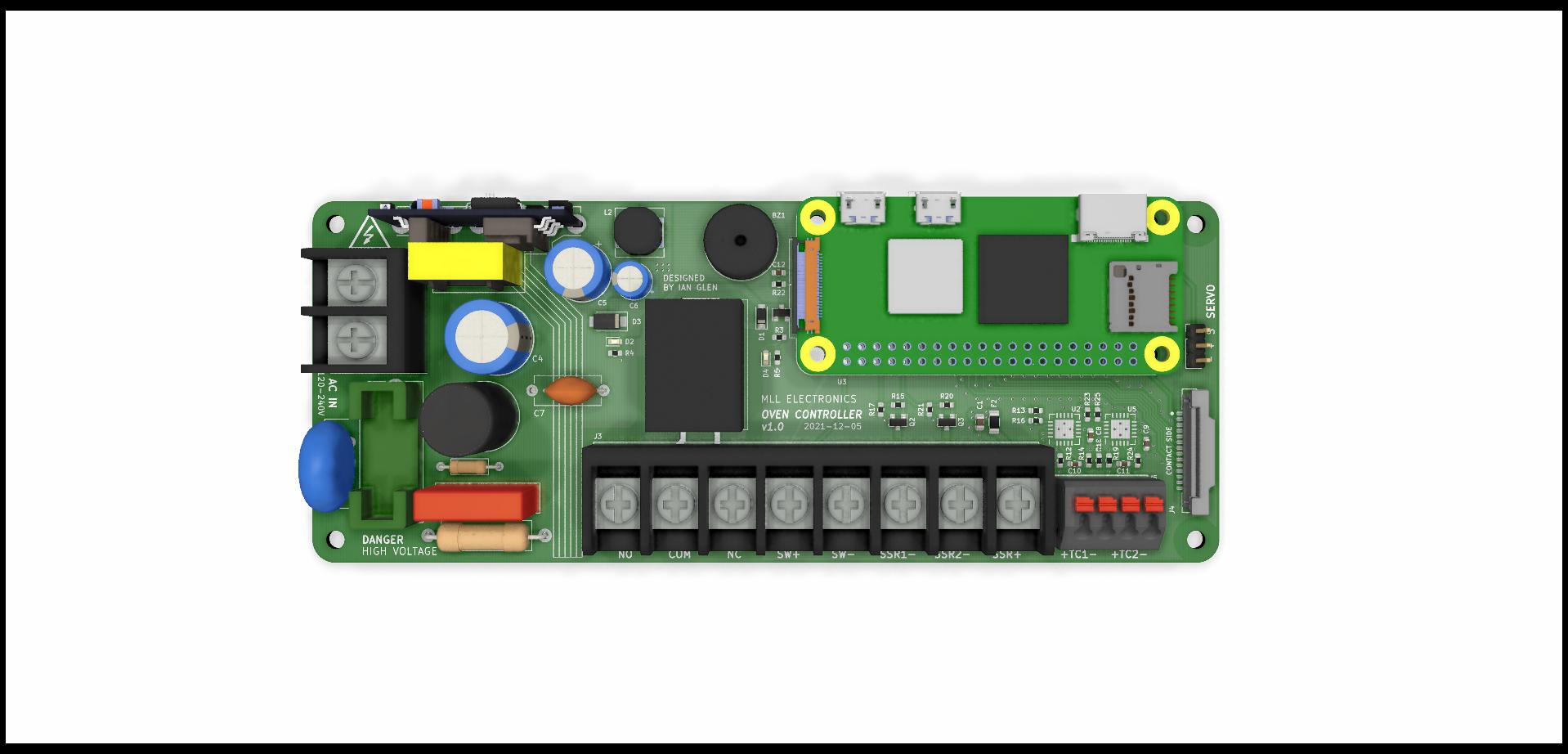

MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN, from the project README
From the project README

Main components on the MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN

AZ1117-3.3APX809S-29SR

MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN bill of materials (BOM)

20 components, 11 distinct parts.

QtyPartRefs
1
AZ1117-3.3
U1
1
APX809S-29SR
U2
1
CONTROLLER
J1
1
LCD
J2
1
CTP
J3
1
Display_LiangHaoCai_3.5in_IPS_CTP
DS1
3
0.1u
C1, C2, C5
2
10u
C3, C4
3
100
R1, R2, R6
3
0
R3, R4, R5
3
DNP
R7, R8, R9

MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN design files

The KiCad project lives in the codeThatThinks/oven-controller-hw repository on GitHub; these links point at the commit this page was built from.

MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN: common questions

How big is the MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN PCB?

The MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN measures 58 × 108 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN?

20 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN design files?

From the codeThatThinks/oven-controller-hw repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MLL ELECTRONICS OVEN CONTROLLER 3.5" TOUCH SCREEN design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which codeThatThinks chose for the repository.
