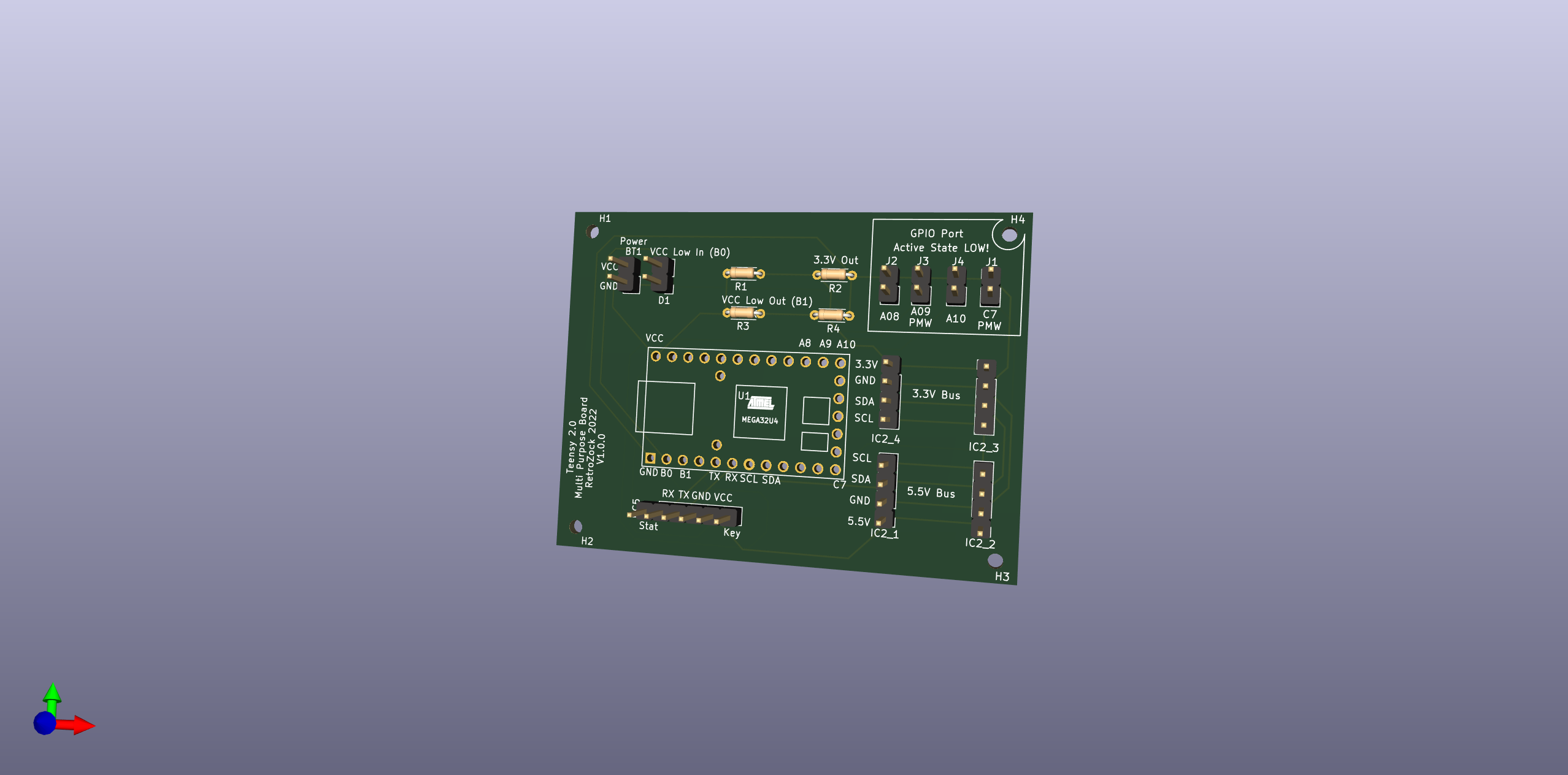

About the Teensy20TestBoard PCB
Teensy20TestBoard is an open source AVR/Arduino PCB design by codingbychanche, published on GitHub. It is a 2-layer board measuring 68 × 51 mm, with 16 components from 10 distinct parts.
Its main chip is the Teensy2.0_(Arduino), from the AVR/Arduino family. By type, the board carries 5 ICs, 4 connectors, 4 resistors, 1 battery holder and 1 diode.
From the project
A general purpose PCB to which can be used for projects with the Teensy 2.0 MCU.
A general purpose PCB for the Teensy 2.0 MCU
Main components on the Teensy20TestBoard
Teensy20TestBoard bill of materials (BOM)
16 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Conn_01x04_Female | PinHeader_1x04_P2.54mm_Vertical | IC2_1, IC2_2, IC2_3, IC2_4 |
| 1 | Teensy2.0_(Arduino) | Teensy2.0 | U1 |
| 4 | Conn_01x02_Female | PinHeader_1x02_P2.54mm_Vertical | J1, J2, J3, J4 |
| 1 | Battery | PinHeader_1x02_P2.54mm_Vertical | BT1 |
| 1 | Conn_01x06_Female | PinHeader_1x06_P2.54mm_Vertical | HC5 |
| 1 | LED | PinHeader_1x02_P2.54mm_Vertical | D1 |
| 1 | 100 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1 |
| 1 | 220 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R2 |
| 1 | 4.7K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R3 |
| 1 | 2.2K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R4 |
Teensy20TestBoard design files
The KiCad project lives in the codingbychanche/teensy20TestBoard repository on GitHub; these links point at the commit this page was built from.
- LayoutTeensyTest.kicad_pcb
- SchematicTeensyTest.kicad_sch
Teensy20TestBoard: common questions
What microcontroller does the Teensy20TestBoard use?
The Teensy20TestBoard is built around the Teensy2.0_(Arduino), from the AVR/Arduino family.
How big is the Teensy20TestBoard PCB?
The Teensy20TestBoard measures 68 × 51 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Teensy20TestBoard?
16 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Teensy20TestBoard design files?
From the codingbychanche/teensy20TestBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Teensy20TestBoard design in my own project?
The repository has no license, so all rights stay with codingbychanche. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Teensy20TestBoard without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
