Cube
About the Cube PCB
Cube is an open source PCB design by CUBE-SD-Project, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 78.7 × 47.5 mm, with 8 components from 4 distinct parts.
From the project

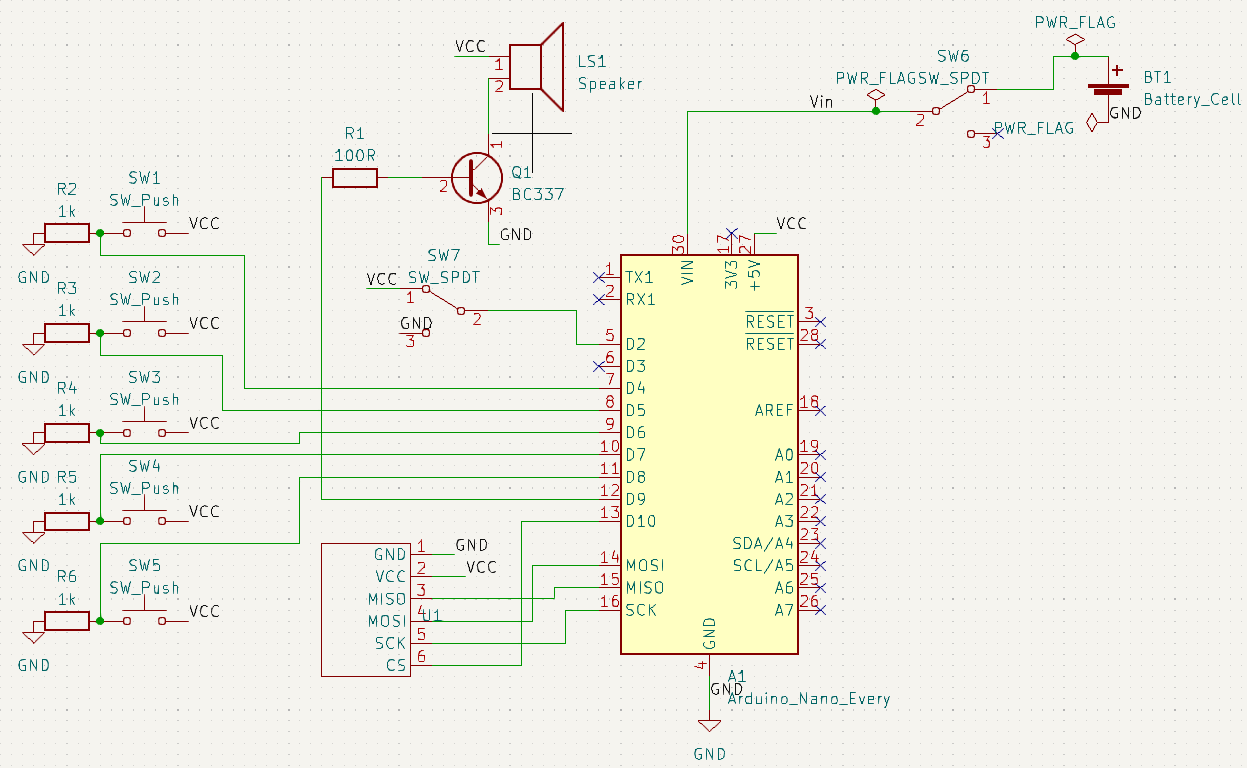

Early Curiosity - Cube
Cube bill of materials (BOM)
8 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BC337 | TO-92_Inline | Q1 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | 1K |
| 1 | 100R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | 100R |
| 5 | SW_Push | PinHeader_1x02_P1.27mm_Vertical | B1, B2, B3, B4, B5 |
Cube design files
The KiCad project lives in the CUBE-SD-Project/cube-neuro repository on GitHub; these links point at the commit this page was built from.
- LayoutEDA/cube/cube.kicad_pcb
- SchematicEDA/cube/cube.kicad_sch
Cube: common questions
How big is the Cube PCB?
The Cube measures 78.7 × 47.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cube?
8 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Cube design files?
From the CUBE-SD-Project/cube-neuro repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Cube design in my own project?
Yes, under the terms of its GPL-3.0 license, which CUBE-SD-Project chose for the repository.
