Wood cube
About the Wood cube PCB
Wood cube is an open source PCB design by CUBE-SD-Project, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50.5 × 50.5 mm, with 24 components from 16 distinct parts.
Other key parts include the WeMos_LoLin32_Lite. By type, the board carries 7 resistors, 6 switches, 4 connectors, 3 capacitors, 2 ICs and 1 battery holder.
From the project
Early Curiosity - Cube
This is the documentation for the third version of the cube. v1 is available here and v2 here. Pictures of the development are available online(v2 here).

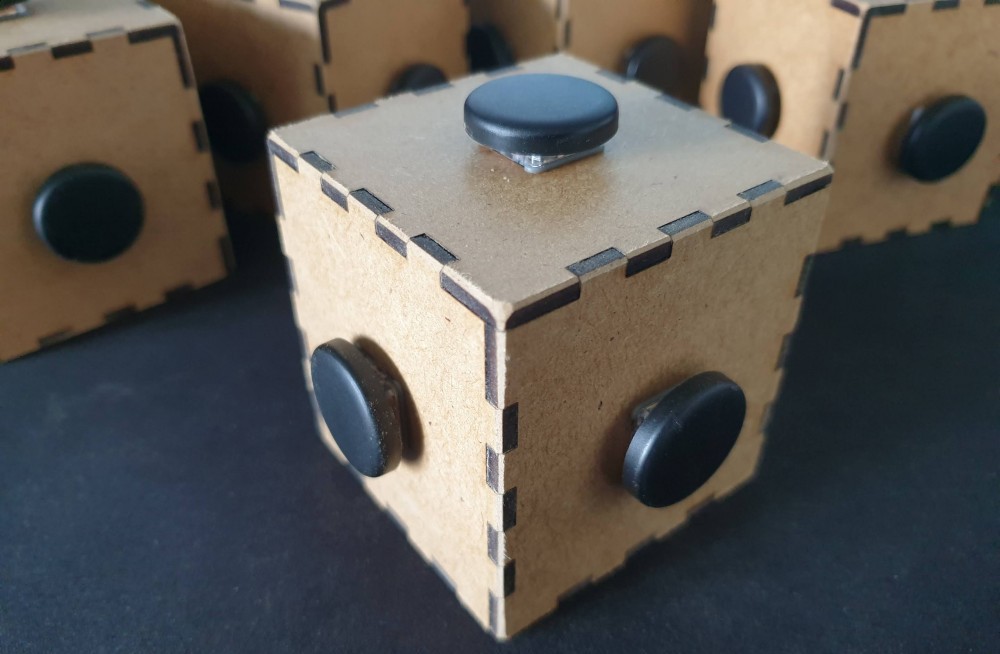

The cube has a button on five of its faces, and a hatch on the bottom face. Under the hatch, there is: - A USB-C port for programming and battery charging. > [!IMPORTANT] > To charge the battery, the cube needs to be on. - A switch to turn the cube on and off. - A micro-SD reader.
Main components on the Wood cube
Wood cube bill of materials (BOM)
24 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WeMos_LoLin32_Lite | WEMOS_LoLin32_Lite | U1 |
| 1 | ~ | MSOP-8_3x3mm_P0.65mm | U2 |
| 1 | Bat+ | PinHeader_1x01_P2.54mm_Vertical | J1 |
| 3 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J2, J3, J4 |
| 1 | Battery_Cell | PinHeader_1x02_P1.27mm_Vertical | BT1 |
| 1 | Speaker | PinHeader_1x02_P1.27mm_Vertical | LS1 |
| 1 | b_A | PinHeader_1x02_P2.54mm_Vertical | SW1 |
| 1 | b_E | PinHeader_1x02_P2.54mm_Vertical | SW2 |
| 1 | b_D | PinHeader_1x02_P2.54mm_Vertical | SW3 |
| 1 | b_C | PinHeader_1x02_P2.54mm_Vertical | SW4 |
| 1 | b_B | PinHeader_1x02_P2.54mm_Vertical | SW5 |
| 1 | SW_SPDT | SW_Slide_SPDT_Angled_CK_OS102011MA1Q | SW6 |
| 2 | 100n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2 |
| 1 | 1u | CP_Elec_4x3.9 | C3 |
| 5 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3, R4, R5 |
| 2 | 100k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R6, R7 |
Wood cube design files
The KiCad project lives in the CUBE-SD-Project/cube-neuro repository on GitHub; these links point at the commit this page was built from.
Wood cube: common questions
How big is the Wood cube PCB?
The Wood cube measures 50.5 × 50.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Wood cube?
24 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the Wood cube design files?
From the CUBE-SD-Project/cube-neuro repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Wood cube design in my own project?
Yes, under the terms of its GPL-3.0 license, which CUBE-SD-Project chose for the repository.
