Kivipallur PMW3360 breakout
About the Kivipallur PMW3360 breakout
Kivipallur PMW3360 breakout is an open source PCB design by danbowles, published on GitHub. It is a 2-layer board measuring 22 × 25 mm, with 8 components from 8 distinct parts.
Other key parts include the LP2985-1.8. By type, the board carries 5 capacitors, 2 resistors and 1 IC.
It belongs with the keyboards and dev boards & breakouts designs in this gallery.
From the project

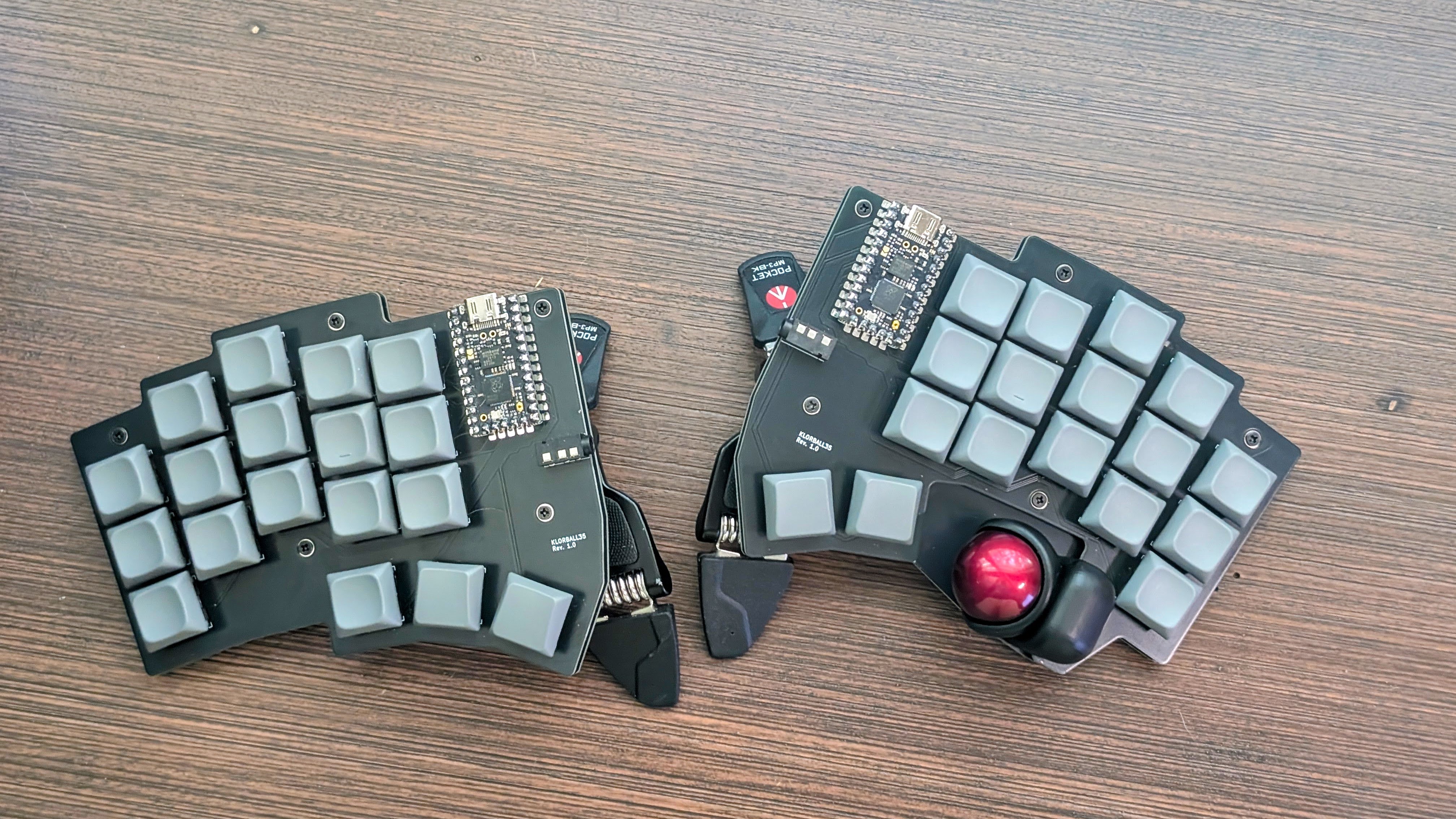

Klorball35 is a 35-key, column-staggered, low-profile split keyboard with an integrated optical trackball. It's derived from KLOR and Keyball, built with Kivipallur as a starting point in Ergogen, and designed around Kailh Choc V1 switches, an 0xCB Helios (RP2040) controller per
Klorball35 is a 35-key, column-staggered, low-profile split keyboard with an integrated optical trackball. It's derived from KLOR and Keyball, built with Kivipallur as a starting point in Ergogen, and designed around Kailh Choc V1 switches, an 0xCB Helios (RP2040) controller per half, and a PixArt PMW3360 sensor on the right hand.
Each half carries a 5-column × 3-row main matrix plus a 3-key (left) and 2-key (right)thumb cluster. The right hand gives up one key to make room for the trackball, so the two halves are 18 (left) + 17 (right) = 35 keys.
Main components on the Kivipallur PMW3360 breakout
Kivipallur PMW3360 breakout bill of materials (BOM)
8 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LP2985-1.8 | SOT-23-5 | U1 |
| 1 | 2.2U 2.2u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | 1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2 |
| 1 | 10N 10n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3 |
| 1 | 100N 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4 |
| 1 | 4.7U 4.7u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5 |
| 1 | 39R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 1 | 10K 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
Kivipallur PMW3360 breakout design files
The KiCad project lives in the danbowles/klorball35 repository on GitHub; these links point at the commit this page was built from.
Kivipallur PMW3360 breakout: common questions
How big is the Kivipallur PMW3360 breakout?
The Kivipallur PMW3360 breakout measures 22 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kivipallur PMW3360 breakout?
8 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Kivipallur PMW3360 breakout design files?
From the danbowles/klorball35 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Kivipallur PMW3360 breakout design in my own project?
The repository has no license, so all rights stay with danbowles. Use it as a reference, and ask the author before reusing the design.
