LedCAN

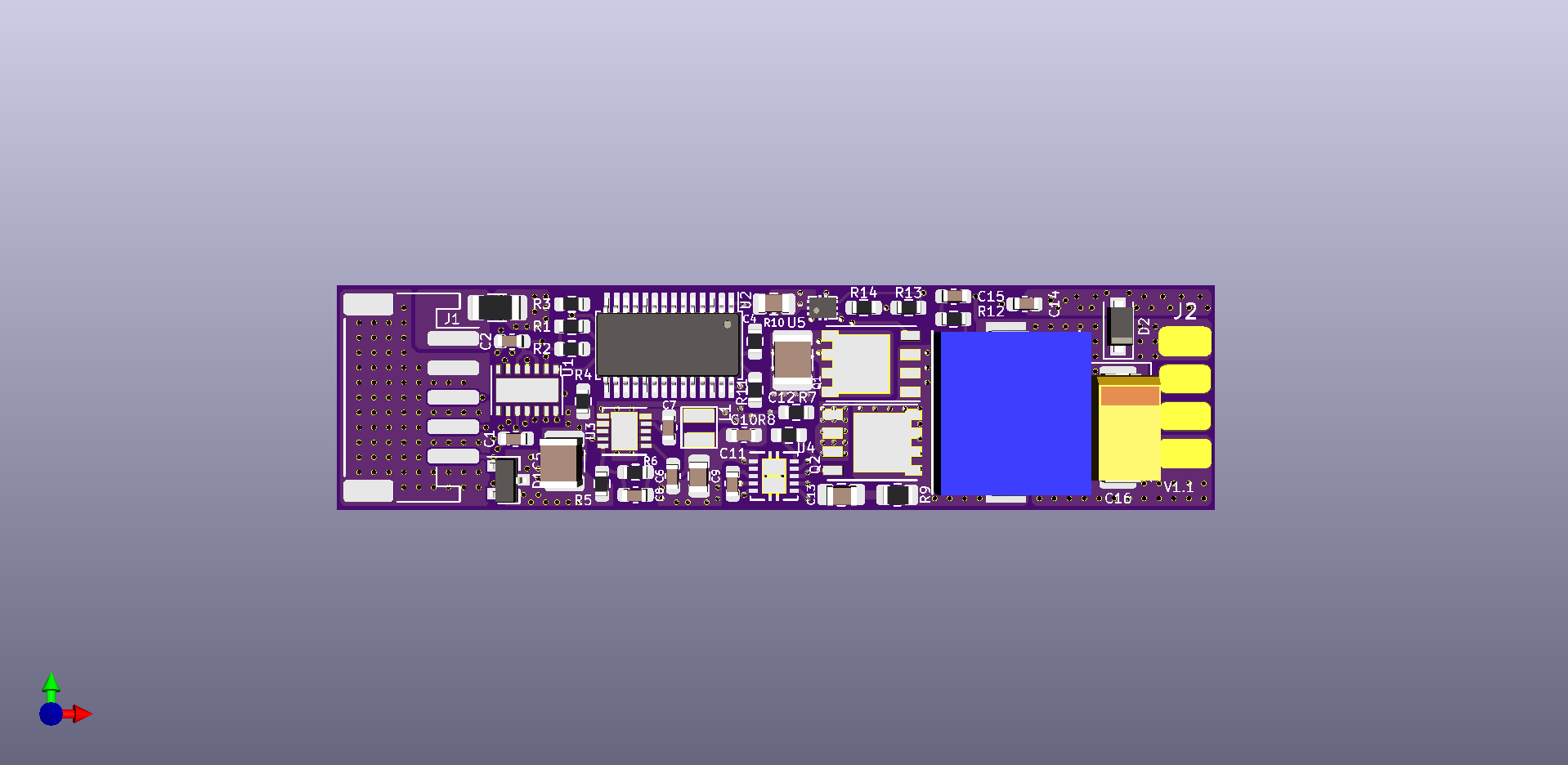

About the LedCAN PCB
LedCAN is an open source PCB design by danchouzhou, published on GitHub under the MIT license. It is a 4-layer board measuring 59.7 × 15.2 mm, with 43 components from 34 distinct parts.
Other key parts include the PTCAN11625DMTRQ1, M0A23EC1AC, MPQ4569GQ-AEC1, UCC27282DRCR and NCS214RMUTAG. By type, the board carries 15 capacitors, 14 resistors, 5 ICs, 2 transistors, 2 connectors and 2 diodes.
It belongs with the power & battery and displays & leds designs in this gallery.
From the project
A multipurpose buck converter with CAN interface.
2. Build and install customize version of OpenOCD for Nuvoton devices
Main components on the LedCAN
LedCAN bill of materials (BOM)
43 components, 34 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PTCAN11625DMTRQ1 | TI_VSON-14_4.5x3.0mm_DMT0014B_ThermalVias | U1 |
| 1 | M0A23EC1AC | TSSOP-28_4.4x9.7mm_P0.65mm | U2 |
| 1 | MPQ4569GQ-AEC1 | QFN-10-1EP_3x3mm_P0.5mm_EP1.7x2.5mm | U3 |
| 1 | UCC27282DRCR | Texas_DRC0010J_ThermalVias | U4 |
| 1 | NCS214RMUTAG | UQFN-10_1.4x1.8mm_P0.4mm | U5 |
| 1 | PSMQC092N10LS1 | PANJIT_DFN5060-8L | Q1 |
| 1 | PSMQC076N12LS1 | PANJIT_DFN5060-8L | Q2 |
| 1 | Conn_01x05_MountingPin | JST_PH_S5B-PH-SM4-TB_1x05-1MP_P2.00mm_Horizontal | J1 |
| 1 | Conn_01x04 | IO_CONN | J2 |
| 1 | Fuse | Fuse_1206_3216Metric | F1 |
| 1 | PEC3124C2A-AU | SOT-23 | D1 |
| 1 | P4FL5.0A | D_SOD-123F | D2 |
| 1 | TYA252012100M-10 | tya252010-series | L1 |
| 1 | SRP1038AA-R56M | INDPM110100X400N | L2 |
| 2 | 100nF | C_0603_1608Metric | C1, C7 |
| 1 | 10uF | C_0603_1608Metric | C2 |
| 2 | 10uF | C_0805_2012Metric | C4, C9 |
| 2 | 10uF | C_1210_3225Metric | C5, C12 |
| 2 | 10nF | C_0603_1608Metric | C6, C15 |
| 1 | 39pF | C_0603_1608Metric | C8 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4.7uF | C_0603_1608Metric | C10 |
| 1 | 220nF | C_0603_1608Metric | C11 |
| 1 | C | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C13 |
| 1 | 22pF | C_0603_1608Metric | C14 |
| 1 | 100uF | CP_EIA-7343-31_Kemet-D | C16 |
| 3 | 100K | R_0603_1608Metric | R1, R2, R14 |
| 1 | 10K | R_0603_1608Metric | R3 |
| 2 | 1M | R_0603_1608Metric | R4, R6 |
| 1 | 91K | R_0603_1608Metric | R5 |
| 2 | Rg | R_0603_1608Metric | R7, R8 |
| 1 | 2R2 | R_0805_2012Metric | R9 |
| 2 | R | R_0603_1608Metric | R10, R11 |
| 1 | 36K | R_0603_1608Metric | R12 |
| 1 | 200K | R_0603_1608Metric | R13 |
LedCAN design files
The KiCad project lives in the danchouzhou/ledCAN repository on GitHub; these links point at the commit this page was built from.
LedCAN: common questions
How big is the LedCAN PCB?
The LedCAN measures 59.7 × 15.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the LedCAN?
43 components, from 34 distinct parts. The full bill of materials is listed on this page.
Where can I download the LedCAN design files?
From the danchouzhou/ledCAN repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the LedCAN design in my own project?
Yes, under the terms of its MIT license, which danchouzhou chose for the repository.
