Vic2020keyboard PCB layout, top view — open source board by danwerner21
Simulate this board

About the Vic2020keyboard PCB

Vic2020keyboard is an open source PCB design by danwerner21, published on GitHub. It is a 2-layer board measuring 341.3 × 124.5 mm, with 68 components from 68 distinct parts.

By type, the board carries 65 switches, 1 connector, 1 diode and 1 resistor.

It belongs with the retro computing and keyboards designs in this gallery.

From the project

A Vic-20 clone created with [almost] all readily available parts

1. The VIC-2020 Mainboard PCB Kicad design and Gerber files 2. The VIC-2020 Keyboard PCB Kicad design and Gerber files 3. OpenSCAD and STL files for a 3d printed case 4. Design Files for Max Keyboard Custom Printed Keycaps

* While the mainboard does have a S-VIDEO mod applied that should (in theory) provide S-VIDEO output, it does not work. If anyone corrects this, please feel free to reach out and I will correct the schematics -- but for now, I would not populate the S-VIDEO connector, and always short the Chroma Disconnect jumper. #### UPDATE Turns out the footprint for the SVIDEO…

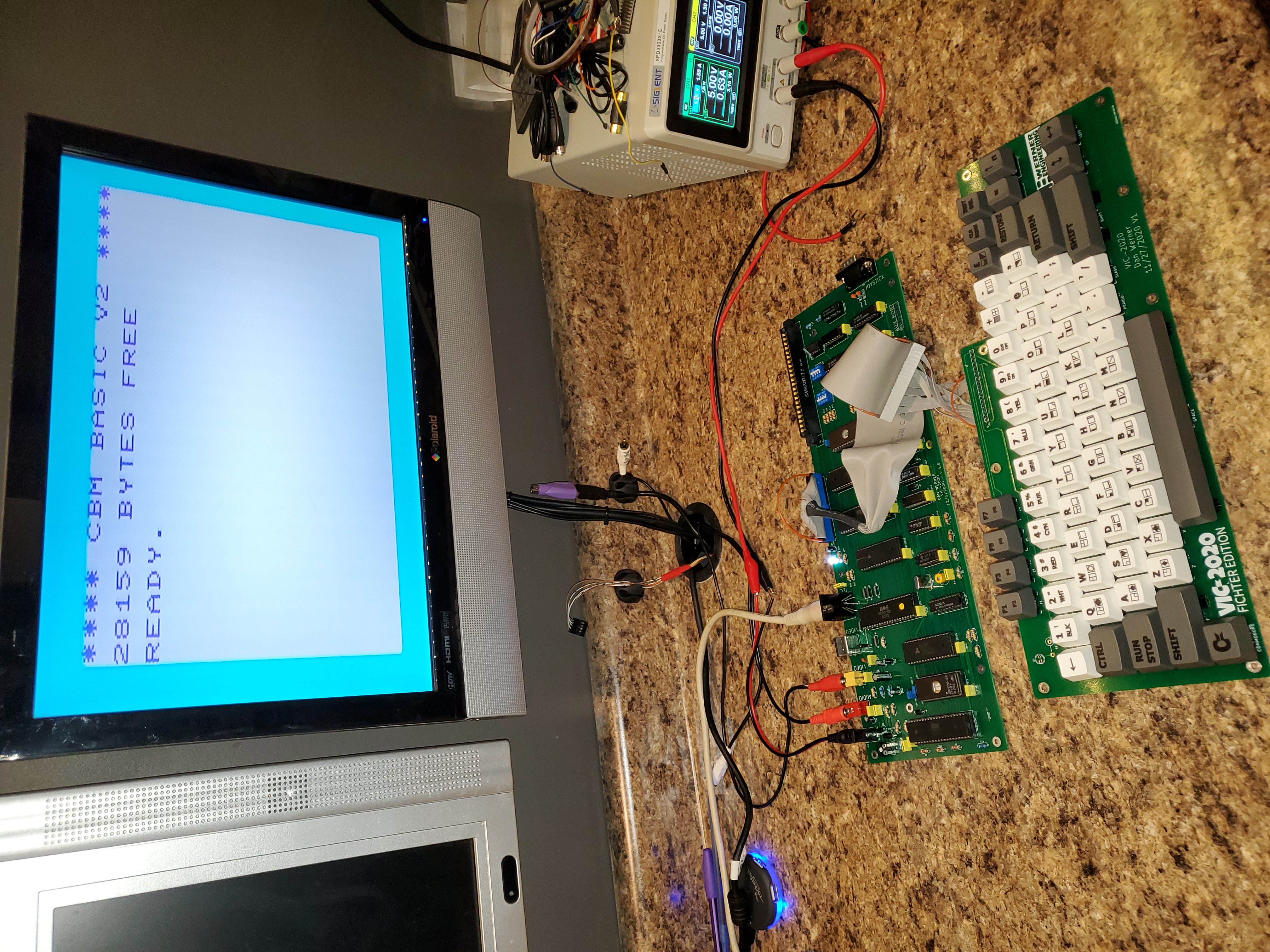

Vic2020keyboard, from the project README
From the project README

Vic2020keyboard bill of materials (BOM)

68 components, 68 distinct parts — part numbers from the project's BOM.
