ISA8888

DartFrogTek·PCIe-PCI-ISA·ISA8888_KiCAD/ISA8888.kicad_pcb

ISA8888 PCB layout, top view — open source board by DartFrogTek
Simulate this board

About the ISA8888 PCB

ISA8888 is an open source PCB design by DartFrogTek, published on GitHub under the MIT license. It is a 2-layer board measuring 169.3 × 98.2 mm, with 70 components from 25 distinct parts.

Other key parts include the SMROM-AT24CS02 and LM7905_TO220. By type, the board carries 37 capacitors, 20 resistors, 7 connectors, 4 ICs, 1 crystal and 1 diode.

From the project

Potential PCIe-to-PCI-to-ISA pathway.

IT FREAKING WORKS ~~~ ISA DDMA ON WIN 10 ~~~ PCM AUDIO PLAYING ON A REAL ISA PICOGUS ON WIN10 !!!

A REAL WORLD FIRST!!! See https://www.vogons.org/viewtopic.php?t=111221 for more details.

This repository contains information and files on how to potentially provide modern systems with an ISA bus including ISA DMA.

More even more historical dev information that's available on the "dISAppointment - LPC to ISA adapter - ISA on modern motherboard" thread. https://www.vogons.org/viewtopic.php?t=93291

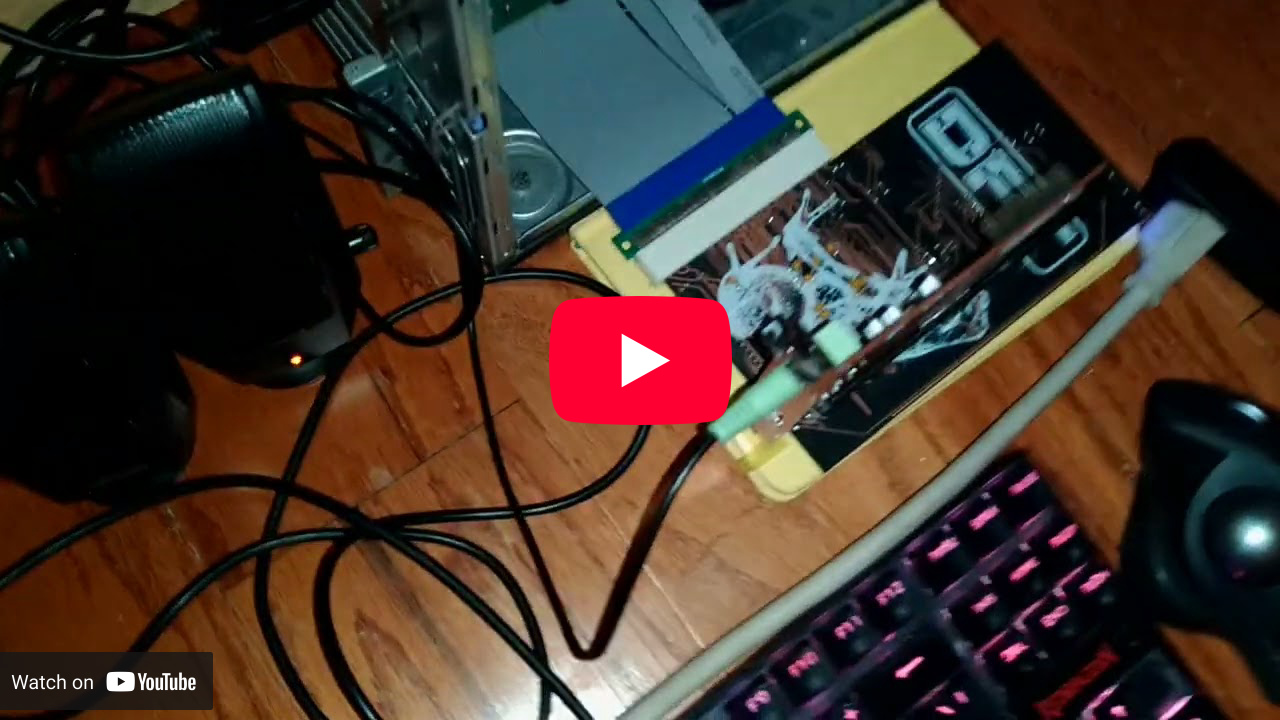

ISA8888, from the project README
From the project README

Main components on the ISA8888

SMROM-AT24CS02LM7905_TO220

ISA8888 bill of materials (BOM)

70 components, 25 distinct parts.

QtyPartRefs
1
~
U1
1
SMROM-AT24CS02
U2
1
~
U3
1
LM7905_TO220
U4
1
CFPS-72
Y1
1
Bus_PCI_32bit_Universal
J1
1
Bus_ISA_16bit
J2
1
AEN/BALE/TC J3
J3
1
Crystal J4
J4
1
PCI Jumpers
J5
1
PPDGNT# Motherboard Redirect
J6
1
PPDREQ# Motherboard Redirect
J7
1
-5V
D1
3
100uF
C1, C30, C33
28
100nF
C2, C3, C4, C5, C6, C7, C8, C9 +20
2
47uF
C15, C18
2
150uF
C34, C35
2
33uF
C36, C37
1
330
R1
6
R4.7K
R3, R4, R5, R6, R13, R14
Show 5 more
QtyPartRefs
2
R1K
R7, R8
4
R330
R9, R10, R11, R12
3
R50K
R15, R16, R17
3
R_Net_10_10k
RN1, RN3, RN4
1
R_Net_10_4k7
RN2

ISA8888 design files

The KiCad project lives in the DartFrogTek/PCIe-PCI-ISA repository on GitHub; these links point at the commit this page was built from.

ISA8888: common questions

How big is the ISA8888 PCB?

The ISA8888 measures 169.3 × 98.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ISA8888?

70 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the ISA8888 design files?

From the DartFrogTek/PCIe-PCI-ISA repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ISA8888 design in my own project?

Yes, under the terms of its MIT license, which DartFrogTek chose for the repository.
