About the SofleKeyboardBottomPlate PCB

SofleKeyboardBottomPlate is an open source PCB design by db-ok, published on GitHub under the MIT license. It is a 2-layer board measuring 143.4 × 111.8 mm, with 5 components from 1 distinct parts.

It belongs with the keyboards, iot & wireless and displays & leds designs in this gallery.

From the project

Split wireless keyboard PCB based on the Sofle Choc keyboard

The Sofle Choc Wireless Keyboard is a revision of the Sofle Choc keyboard by Brian Low with features that make it more suitable to building with wireless microcontrollers.

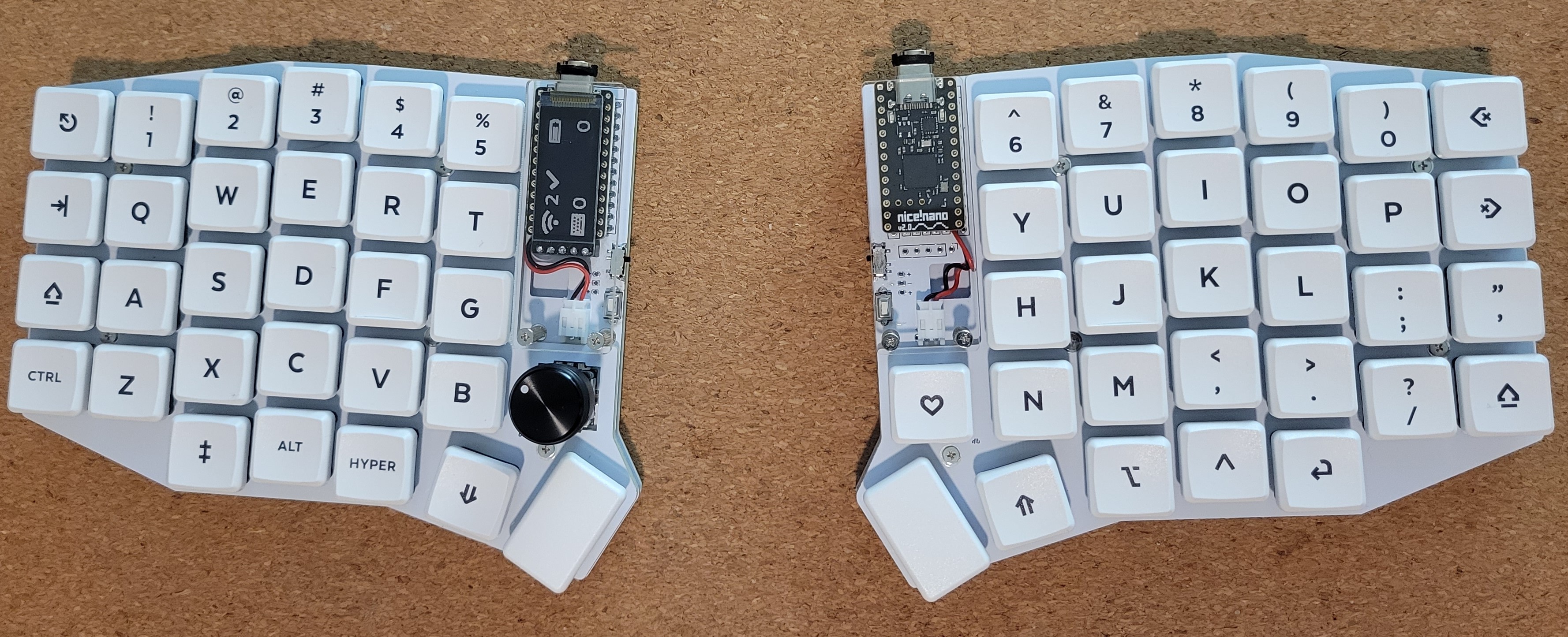

The following 2 pictures are the same exact board:

The encoders in the first picture were hot-swapped for Choc switches in the second picture. This allows for more build flexibility to change up your build, and as an added bonus, you can test out different rotary encoder options without soldering them in until you find one that you like.

SofleKeyboardBottomPlate, from the project README
From the project README

SofleKeyboardBottomPlate bill of materials (BOM)

5 components, 1 distinct parts.

QtyPartRefs
5
HOLE
TH3, TH4, TH5, TH6, TH7

SofleKeyboardBottomPlate design files

The KiCad project lives in the db-ok/SofleChocWireless repository on GitHub; these links point at the commit this page was built from.

SofleKeyboardBottomPlate: common questions

How big is the SofleKeyboardBottomPlate PCB?

The SofleKeyboardBottomPlate measures 143.4 × 111.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SofleKeyboardBottomPlate?

5 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the SofleKeyboardBottomPlate design files?

From the db-ok/SofleChocWireless repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the SofleKeyboardBottomPlate design in my own project?

Yes, under the terms of its MIT license, which db-ok chose for the repository.
