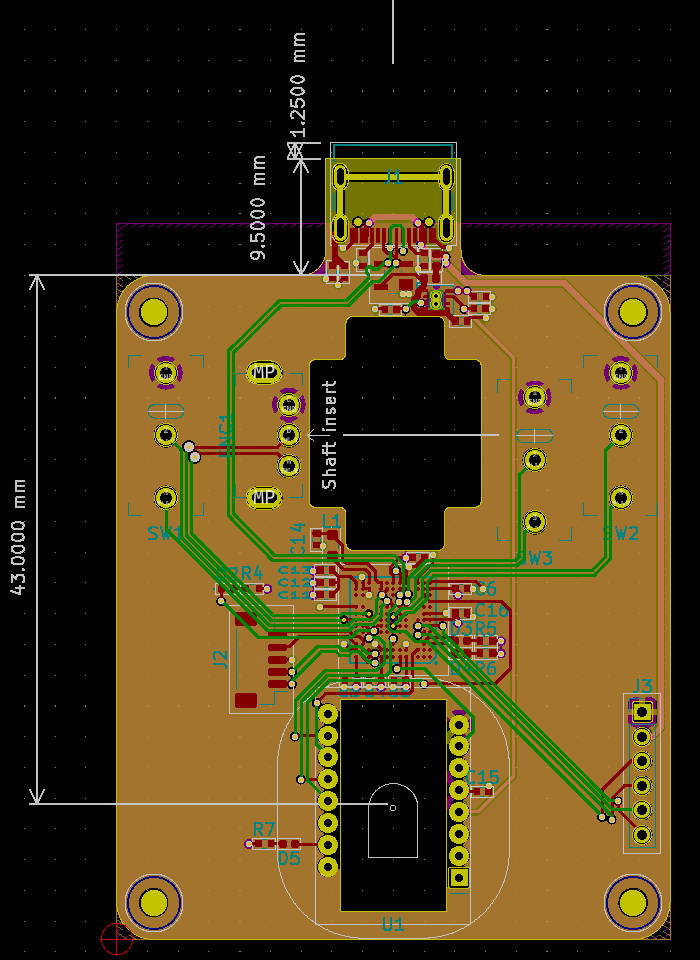

Redshift PCB layout, top view — open source NXP board by Dekanova

About the Redshift PCB

Redshift is an open source NXP PCB design by Dekanova, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 45 × 63.5 mm, with 50 components from 26 distinct parts.

Its main chip is the LPC5528JEV98K, from the NXP family. Other key parts include the MIC5365-3.3YC5-TR and Texas Instruments TLV70028DDCR. By type, the board carries 25 capacitors, 9 resistors, 6 diodes, 3 ICs, 2 connectors and 2 inductors.

It belongs with the usb & debug tools designs in this gallery.

From the project

This is the central repository for work on the Redshift PCB.

This is the central repository for work on the Redshift PCB.

NOTE: Encoder 3d file is intentionally not included. If you wish to add it, models are freely downloaded from Alps Alpine website under EC10E.

Redshift, from the project README
From the project README

Main components on the Redshift

LPC5528JEV98KMIC5365-3.3YC5-TRTexas Instruments TLV70028DDCR

Redshift bill of materials (BOM)

50 components, 26 distinct parts.

QtyPartRefs
1
LPC5528JEV98K
LPC5526JEV98
IC1
1
MIC5365-3.3YC5-TR
U2
1
Texas Instruments TLV70028DDCR
U3
1
Seiko Epson Q22FA12800400
Y1
1
G-Switch GT-USB-7010ASV
J1
1
Conn_ARM_JTAG_SWD_10
J4
1
500mA
F1
1
PTS810
SW4
1
PRTR5V0U2X
D1
2
RED
D2, D6
1
AMBER
D3
1
GREEN
D4
1
NSR05F40NXT5G
D7
1
600@100Mhz
FB1
1
4u7H
L1
14
100nF
C1, C2, C3, C4, C5, C6, C7, C9 +6
2
2.2uF
C8, C10
4
22uF
C11, C14, C20, C25
1
47pF
C13
2
8pF
C15, C23
Show 6 more
QtyPartRefs
1
10uF
C18
1
4.7uF
C22
1
100k
R1
2
5.1k
R2, R3
5
10k
R4, R5, R6, R8, R13
1
13
R7

Redshift design files

The KiCad project lives in the Dekanova/redshift repository on GitHub; these links point at the commit this page was built from.

Redshift: common questions

What microcontroller does the Redshift use?

The Redshift is built around the LPC5528JEV98K, from the NXP family.

How big is the Redshift PCB?

The Redshift measures 45 × 63.5 mm, has 4 copper layers and is 1.69 mm thick.

How many components are on the Redshift?

50 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Redshift design files?

From the Dekanova/redshift repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Redshift design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Dekanova chose for the repository.

Can I test firmware for the Redshift without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
