Brain
About the Brain PCB
Brain is an open source PCB design by Diego-Luna, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 54.3 × 47.8 mm, with 52 components from 29 distinct parts.
Other key parts include the TPS73250DBVT, ADS1294, MCP73831-2-OT, AP2112K-3.3 and E73-2G4M08S1C-52840. By type, the board carries 22 capacitors, 11 resistors, 6 ICs, 3 connectors, 3 diodes and 3 inductors.
It belongs with the iot & wireless designs in this gallery.

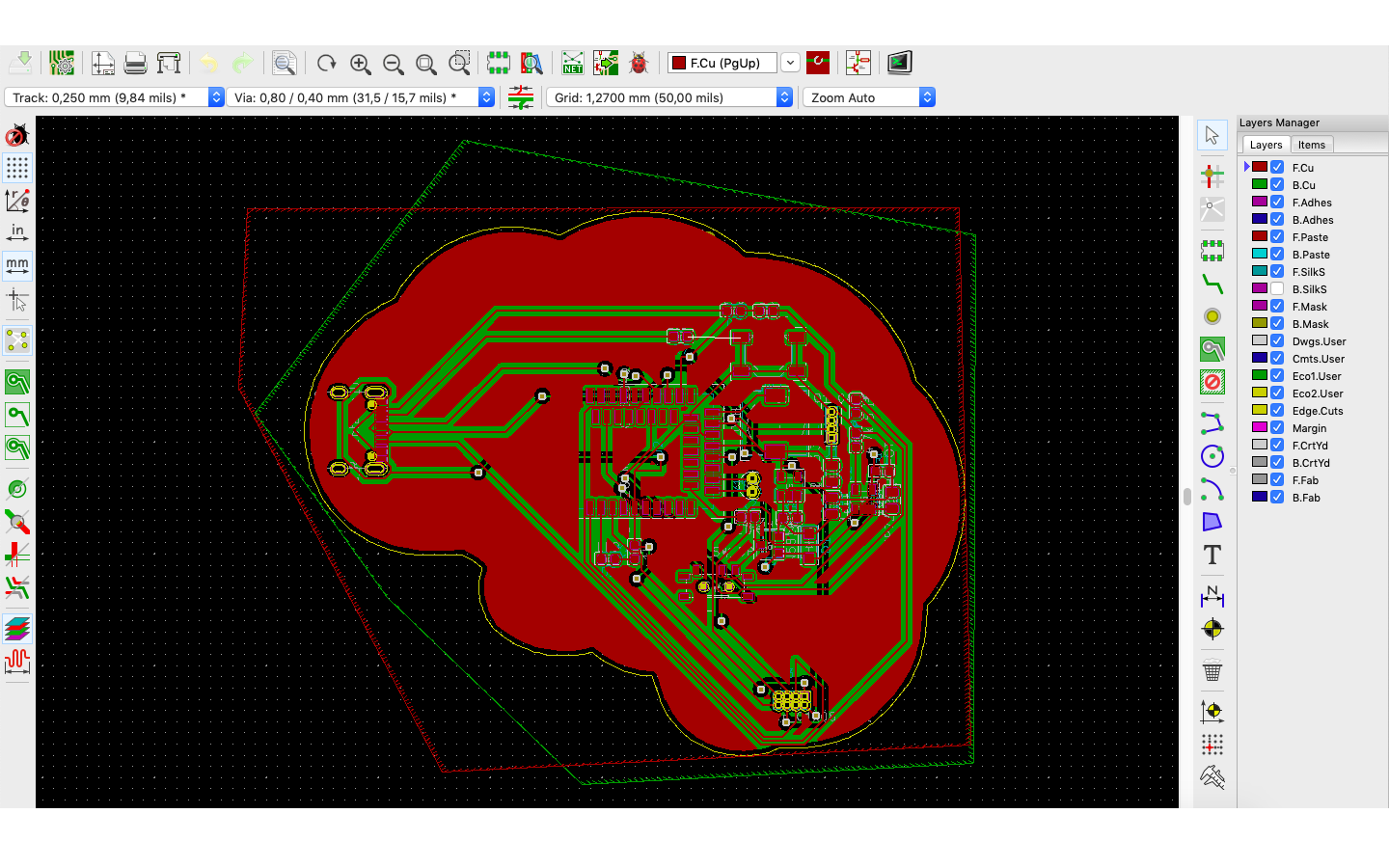

From the project
Brain(Cerebro) es una placa de desarrollo, que cuenta con un EEG (electroencefalograma) que mediante electrodos medimos la actividad cerebral de 12 Hz - 30 Hz, que corresponde a la concentración, con el objetivo de utilizarlo como una herramienta de aprendizaje en distintas disciplinas que se puede llevar a cualquier parte para aprender mientras te diviertes. De igual manera se está desarrollando una plataforma para facilitar el uso y el aprendizaje con Brain.
Main components on the Brain
Brain bill of materials (BOM)
52 components, 29 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPS73250DBVT | TPS73250DBVT | U1, U3 |
| 1 | ADS1294 | ADS1294IPAG | U2 |
| 1 | MCP73831-2-OT | SOT-23-5 | U4 |
| 1 | AP2112K-3.3 | SOT-23-5 | U5 |
| 1 | E73-2G4M08S1C-52840 | E73-2G4M08S1C | U6 |
| 1 | AO3407A | SOT-23 | Q1 |
| 1 | 32Khz | Crystal_Round_D1.0mm_Vertical | Y1 |
| 1 | SWD | PinHeader_1x04_P1.00mm_Vertical | J1 |
| 1 | USB_C_Receptacle_USB2.0 | usb_type_c | J2 |
| 1 | Conn_01x03_Male | PinHeader_1x03_P1.00mm_Vertical | J3 |
| 1 | Switch | switch_MSK-12C02_smd | SW1 |
| 1 | RESET | SW_SPST_TL3342 | SW2 |
| 1 | 1N5819 | D_SOD-123F | D1 |
| 2 | LED | LED_0603_1608Metric | D2, D3 |
| 2 | 3.3uH | L_7.3x7.3_H3.5 | L1, L2 |
| 1 | 10uH | L_7.3x7.3_H3.5 | L3 |
| 7 | 10uF | C_0805_2012Metric | C1, C3, C4, C10, C20, C21, C22 |
| 2 | 2.2uF | C_0805_2012Metric | C2, C11 |
| 1 | 22uF | C_0805_2012Metric | C5 |
| 7 | 1uF | C_0805_2012Metric | C6, C7, C9, C12, C14, C15, C17 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 0.1uF | C_0805_2012Metric | C8, C16, C18 |
| 1 | 1.5nF | C_0805_2012Metric | C13 |
| 1 | 100pF | C_0805_2012Metric | C19 |
| 1 | 1M | R_0603_1608Metric | R1 |
| 3 | 10K | R_0603_1608Metric | R2, R3, R6 |
| 1 | 4.7k | R_0603_1608Metric | R4 |
| 2 | 100k | R_0603_1608Metric | R5, R8 |
| 2 | 1k | R_0603_1608Metric | R7, R9 |
| 2 | 5.1k | R_0603_1608Metric | R10, R11 |
Brain design files
The KiCad project lives in the Diego-Luna/Brain repository on GitHub; these links point at the commit this page was built from.
Brain: common questions
How big is the Brain PCB?
The Brain measures 54.3 × 47.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Brain?
52 components, from 29 distinct parts. The full bill of materials is listed on this page.
Where can I download the Brain design files?
From the Diego-Luna/Brain repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Brain design in my own project?
Yes, under the terms of its GPL-3.0 license, which Diego-Luna chose for the repository.
