Esp toggl
About the Esp toggl PCB
Esp toggl is an open source PCB design by DirkHeinke, published on GitHub. It is a 2-layer board measuring 22.9 × 50.8 mm, with 7 components from 6 distinct parts.
Other key parts include the NCP1117ST33T3G. By type, the board carries 4 connectors, 2 resistors and 1 IC.
From the project
A simple button for toggl.com
A simple button for starting and stopping tasks on toggl.
Core is a ESP8266-01 connected directly to the toggl API. In this repository you can find the sourcecode for the ESP (/software) and the schematics for the board (/hardware). A PDF version of the schematics is available in the docs folder.

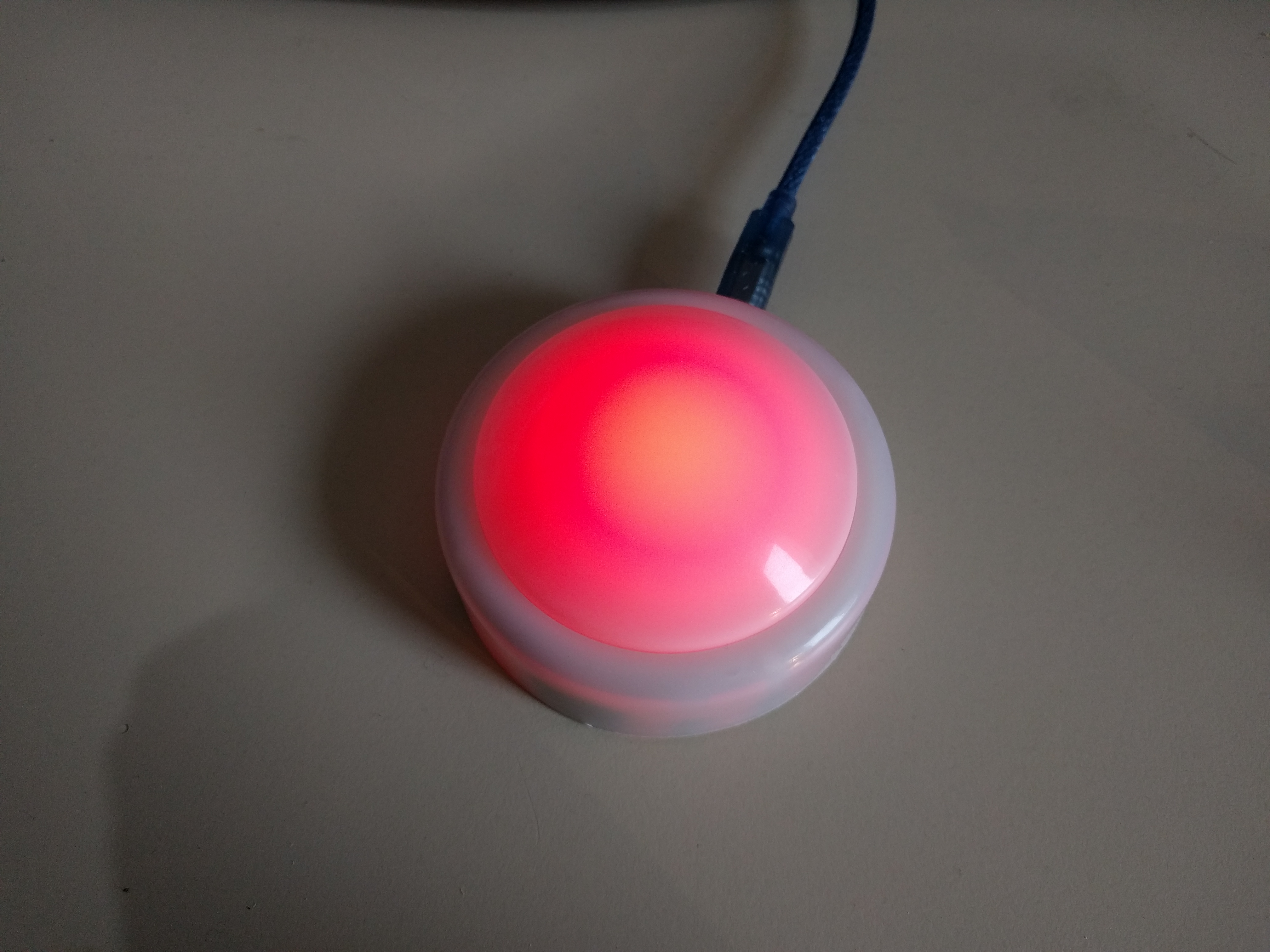

I used an old LED light and replaced everything inside. The USB cable is only used for powering the ESP. Any USB power adapter is good enough to run it. After first boot, the ESP creates a hotspot and asks for credentials to connect to your WiFi. On the next settings page (available via the local…
Main components on the Esp toggl
Esp toggl bill of materials (BOM)
7 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NCP1117ST33T3G | SOT-223 | U1 |
| 1 | Button | Pin_Header_Straight_1x02_Pitch2.54mm | P1 |
| 1 | WS2812B | Pin_Header_Straight_1x03_Pitch2.54mm | P2 |
| 1 | USB_B | USB_B | P3 |
| 1 | CONN_02X04 | Socket_Strip_Straight_2x04_Pitch2.54mm | P4 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R1, R2 |
