Power
About the Power PCB
Power is an open source PCB design by dj505, published on GitHub. It is a 2-layer board measuring 44 × 25 mm, with 12 components from 4 distinct parts.
By type, the board carries 7 connectors and 5 capacitors.
From the project

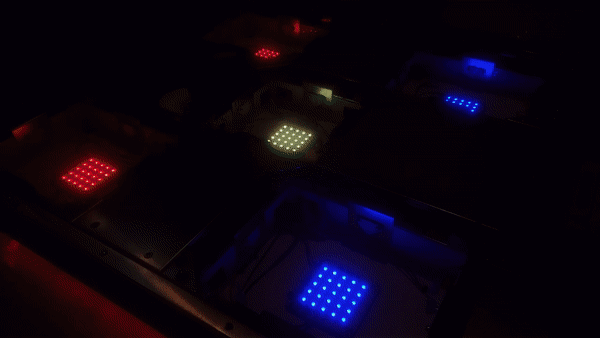

A PIU pad lighting upgrade kit, featuring a 5x5 RGB LED grid
There are 2 PCB designs being worked on for this project: The main "Panel" PCB Contains all the LEDs, with individual microcontrollers per PCB, ensuring they can all work individually. Fully tested, with updated design/gerber files that hardware issues I initially ran into while prototyping. The power distrubution PCB Takes a barrel jack and/or bare wires via screw terminals. 5V input only! Make sure your power supply can pump out enough amps to power all the LEDs. 5 outputs, one per arrow on one pad. In the case of DDR/ITG pads, one may be left unused. Also includes footprints for filtering…
Power bill of materials (BOM)
12 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x02 | TerminalBlock_bornier-2_P5.08mm | J1 |
| 1 | Barrel_Jack | BarrelJack_CUI_PJ-063AH_Horizontal | J2 |
| 5 | Conn_01x02 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J3, J4, J5, J6, J7 |
| 5 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5 |
Power design files
The KiCad project lives in the dj505/Pad-Light-Kit repository on GitHub; these links point at the commit this page was built from.
- LayoutPower/Power.kicad_pcb
- SchematicPower/Power.kicad_sch
Power: common questions
How big is the Power PCB?
The Power measures 44 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Power?
12 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Power design files?
From the dj505/Pad-Light-Kit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Power design in my own project?
The repository has no license, so all rights stay with dj505. Use it as a reference, and ask the author before reusing the design.
