About the 1802-Mini-Backplane PCB
1802-Mini-Backplane is an open source PCB design by dmadole, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 100 mm, with 36 components from 10 distinct parts.
Other key parts include the 4049. By type, the board carries 22 connectors, 6 capacitors, 5 resistors, 2 diodes and 1 IC.
From the project
A backplane for the 1802 Mini as an alternative to the stacking physical format. Incorporates power, reset, and input buttons,.

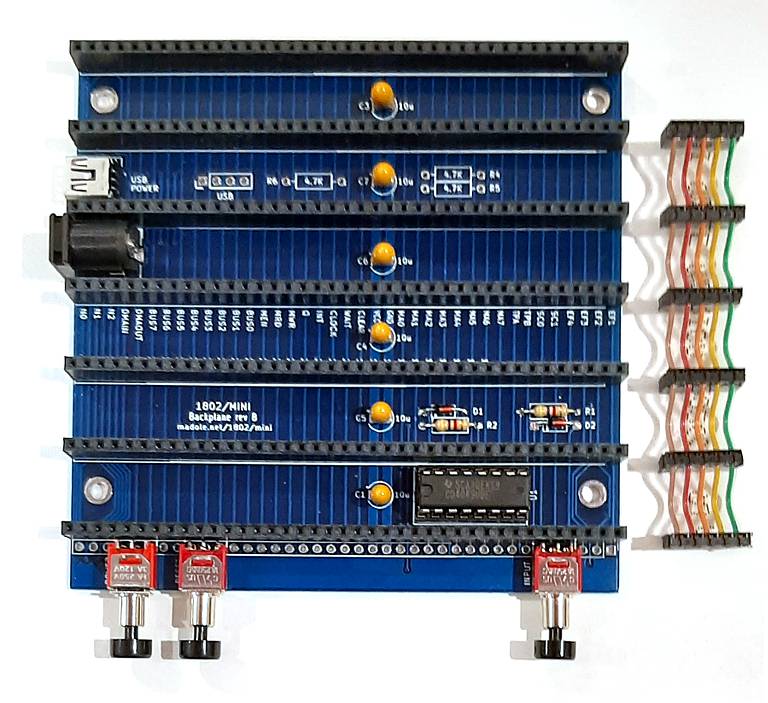

This is a backplane for the 1802/Mini system. It supports the following features:
Seven slots using 1x39 single-row header sockets Power, reset, and, and input pushbuttons Power input via mini-USB or 2.1mm barrel jack USB pass-through header, can also be used for power Boards can be coupled end-to-end to make larger backplanes PCB can also be assembled as a slot extender card * Optional pull-up resistors for TPA, TPB, and CLOCK
Main components on the 1802-Mini-Backplane
1802-Mini-Backplane bill of materials (BOM)
36 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4049 | DIP-16_W7.62mm_Socket | U1 |
| 1 | Barrel_Jack_Switch | BarrelJack_CUI_PJ-102AH_Horizontal | J1 |
| 9 | Expansion | PinHeader_1x39_P2.54mm_Vertical | J2, J3, J4, J5, J6, J7, J8, J14 +1 |
| 4 | Mount | 1pin | J9, J10, J11, J12 |
| 1 | 56579-0519 | USB_Mini-AB_Molex_56579_0519 | J13 |
| 6 | Mount | PinHeader_1x01_P2.54mm_Vertical | J16, J17, J18, J19, J20, J21 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J22 |
| 2 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2 |
| 6 | 10uF | CP_Radial_Tantal_D4.5mm_P2.50mm | C1, C3, C4, C5, C6, C7 |
| 5 | 4.7K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R4, R5, R6 |
1802-Mini-Backplane design files
The KiCad project lives in the dmadole/1802-Mini-Backplane repository on GitHub; these links point at the commit this page was built from.
1802-Mini-Backplane: common questions
How big is the 1802-Mini-Backplane PCB?
The 1802-Mini-Backplane measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 1802-Mini-Backplane?
36 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the 1802-Mini-Backplane design files?
From the dmadole/1802-Mini-Backplane repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the 1802-Mini-Backplane design in my own project?
Yes, under the terms of its GPL-3.0 license, which dmadole chose for the repository.
