Plc controller mega32l pcb scheme layout, top view — open source AVR/Arduino board by dmogn
Simulate this board

About the Plc controller mega32l pcb scheme

Plc controller mega32l pcb scheme is an open source AVR/Arduino PCB design by dmogn, published on GitHub under the MIT license. It is a 2-layer board measuring 150 × 97 mm, with 82 components from 29 distinct parts.

Its main chip is the ATMEGA32-A, from the AVR/Arduino family. Other key parts include the MAX481CPA. By type, the board carries 34 resistors, 27 diodes, 8 capacitors, 7 connectors, 2 ICs and 1 transistor.

From the project

PLC controller hardware PCB scheme. ATMega32L, RS485 industrial bus interface, 8 ADC inputs, 8 PWM out, 6 GPIO

PLC controller hardware PCB scheme. ATMega32L, RS485 industrial bus interface, 8 ADC inputs, 8 PWM out, 6 GPIO

- Discrete diode protection for high & low overvoltage for all input & interface contacs.

- Two types of RS485 input connectors (1RJ-45, 3RJ-11).

- Output RS485 RJ-11 connectors. The controller can act as connection hub on RS485 network with tree-like topology. Up to 3 output connections.

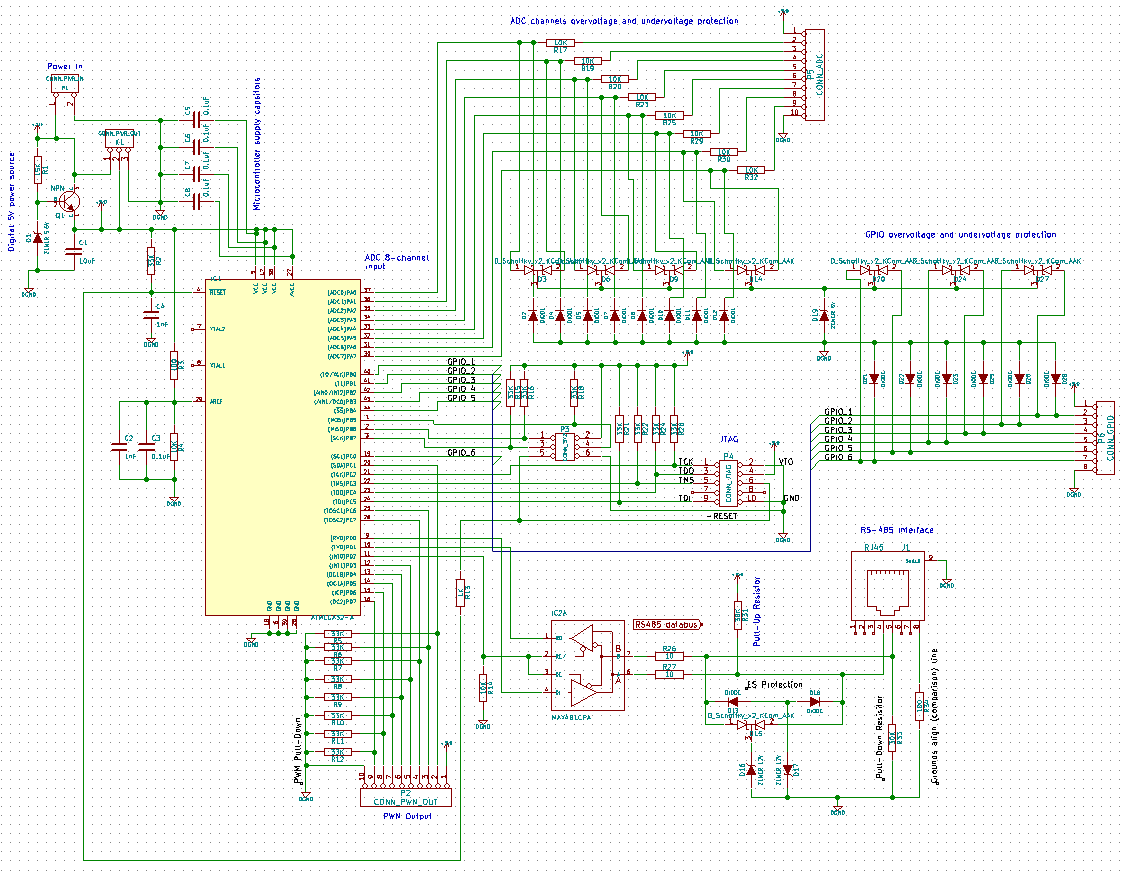

Plc controller mega32l pcb scheme, from the project README
From the project README

Main components on the Plc controller mega32l pcb scheme

ATMEGA32-AMAX481CPA

Plc controller mega32l pcb scheme bill of materials (BOM)

82 components, 29 distinct parts.

QtyPartRefs
1
ATMEGA32-A
IC1
1
MAX481CPA
IC2
1
NPN
Q1
1
RJ45
J1
1
CONN_PWR_IN
P1
1
CONN_PWM_OUT
P2
1
CONN_3X2
P3
1
CONN_JTAG
P4
1
CONN_ADC
P5
1
CONN_GPIO
P6
2
8P8C_Shielded
J_Out1, J_Out2
1
CONN_PWR_OUT
K1
1
ZENER 5.6V
D1
16
DIODE
D2, D4, D5, D7, D8, D10, D11, D12 +8
4
D_Schottky_x2_KCom_AAK
D3, D9, D15, D24
3
D_Schottky_x2_KCom_AAK
D6, D14, D27
1
ZENER 12V
D17
1
ZENER 5V
D19
1
D_Schottky_x2_KCom_AAK
D20
1
10uF
C1
Show 9 more
QtyPartRefs
2
1nF
C2, C4
5
0.1uF
C3, C5, C6, C7, C8
1
15K
R1
16
33K
R2, R5, R6, R7, R8, R9, R10, R11 +8
2
100
R3, R34
10
10K
R4, R14, R17, R19, R20, R23, R25, R29 +2
1
1K
R13
2
10
R26, R27
2
30K
R31, R33

Plc controller mega32l pcb scheme design files

The KiCad project lives in the dmogn/plc_controller_mega32l_pcb_scheme repository on GitHub; these links point at the commit this page was built from.

Plc controller mega32l pcb scheme: common questions

What microcontroller does the Plc controller mega32l pcb scheme use?

The Plc controller mega32l pcb scheme is built around the ATMEGA32-A, from the AVR/Arduino family.

How big is the Plc controller mega32l pcb scheme?

The Plc controller mega32l pcb scheme measures 150 × 97 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Plc controller mega32l pcb scheme?

82 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Plc controller mega32l pcb scheme design files?

From the dmogn/plc_controller_mega32l_pcb_scheme repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Plc controller mega32l pcb scheme design in my own project?

Yes, under the terms of its MIT license, which dmogn chose for the repository.

Can I test firmware for the Plc controller mega32l pcb scheme without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
